Flat Backlight, 232 x 182 mm, White (LS-LBFH-200-150-W)
  • Flat Backlight, 232 x 182 mm, White (LS-LBFH-200-150-W)
  • LS-LBFH-200-150-W dimensions (mm)

Backlights

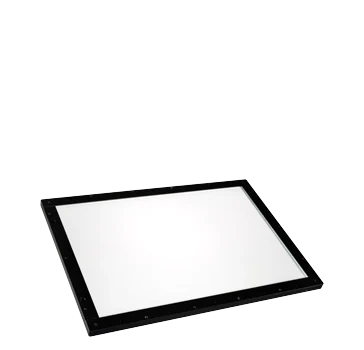

Flat Backlight, 232 x 182 mm, White (LS-LBFH-200-150-W)

Model LS-LBFH-200-150-W

  • ColourWhite
  • Emitting area200 mm × 150 mm
  • Size232 mm × 182 mm × 12.5 mm
  • Power4.6 W
$189.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Flat Backlight, 232 x 182 mm, White. Ultra-thin profile Special light-guide material for good uniformity

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LBFH-200-150-W

Interfaces and I/O

Connector typeSMR-03V-B
Cable length500 mm

Light

ColorWhite
Color temperature6000~7000K
Emitting area dimension200 mm × 150 mm
Diffuse plate includedIncluded

Environment and compliance

Humidity20% to 85% RH (non-condensing)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Electrical

Power4.6 W
Supply voltage (derived)24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

Dimension232 mm × 182 mm × 12.5 mm
Shipping weight (estimated)0.66 kg

Other models in the Flat backlights series

See all 5 models
ModelSize / key dataPriceAvailabilityLink
LS-LBFH-50-50-W 82 x 82 mm, White $89.00 4 in stock View
LS-LBFH-100-100-W 132 x 132 mm, White $109.00 3 in stock View
LS-LBFH-300-200-W 332 x 232 mm, White $289.00 4 in stock View
LS-LBFH-400-300-W 432 x 332 mm, White $509.00 3 in stock View
