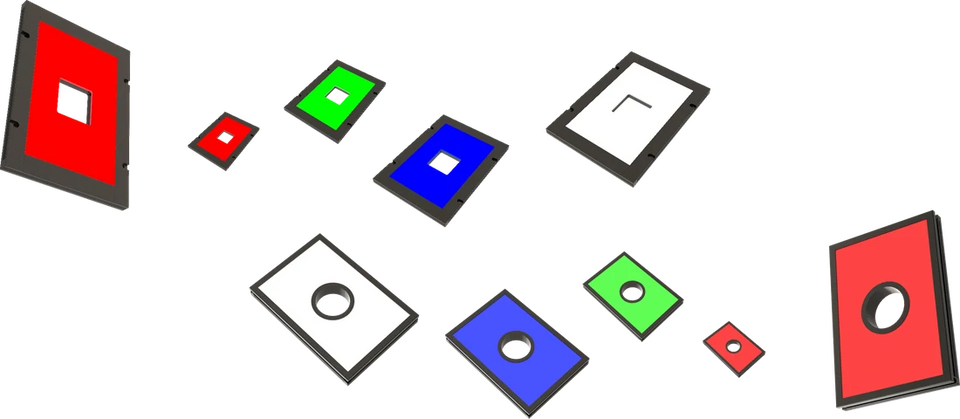

Flank Back Light with Hole (2FCK series)
- 14 models
- from $319.00
- Series LS-2FCK
The Flank Back Light with Hole (2FCK series) is a range of 14 backlights from LumaSpec Vision, from $319.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 100 x 100 mm, 200 x 200 mm, 250 x 120 mm, 250 x 150 mm, 250 x 250 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 500 x 400 mm, 600 x 450 mm, 800 x 600 mm, 900 x 618 mm, 1568 x 668 mm
- Colour
- Red, Green, Blue, White
- Type
- With centre hole
- Voltage
- 24 V
Features
- Ultra-thin design, with customizable hole size, shape, dimension and position.
- Achieves uniform illumination over a large area.
- High-precision, large-area product size measurement using parallel backlighting.
Typical uses
- Large size product positioning, high uniformity recognition scenarios, various size measurements, transmission-based detection of presence/absence.
- PCB board fiducial mark positioning
- Keyboard character inspection
- Electronic product QR code detection
- Chip quantity inspection
All 14 models in the Flank Back Light with Hole (2FCK series)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-2FCK-100X100-D35 | 100 x 100 mm | 100x100 | Φ35 | 132x132x10 | $319.00 | View |
| LS-2FCK-250X120-D50 | 250 x 120 mm | 250x120 | Φ50 | 282x152x10.5 | $519.00 | View |
| LS-2FCK-250X150-D50 | 250 x 150 mm | 250x150 | Φ50 | 282x182x10.5 | $589.00 | View |
| LS-2FCK-200X200-D50 | 200 x 200 mm | 200x200 | Φ50 | 232x232x10.5 | $609.00 | View |
| LS-2FCK-300X200-D50 | 300 x 200 mm | 300x200 | Φ50 | 332x232x10.5 | $799.00 | View |
| LS-2FCK-250X250-D50 | 250 x 250 mm | 250x250 | Φ50 | 282x282x10.5 | $819.00 | View |
| LS-2FCK-400X200-D40 | 400 x 200 mm | 400x200 | Φ40 | 432x232x10.5 | $969.00 | View |
| LS-2FCK-300X300-D50 | 300 x 300 mm | 300x300 | Φ50 | 332x332x10.5 | $1,059.00 | View |
| LS-2FCK-400X300-D50 | 400 x 300 mm | 400x300 | Φ50 | 432x332x10.5 | $1,319.00 | View |
| LS-2FCK-500X400-D70 | 500 x 400 mm | 500x400 | Φ70 | 532x432x10.5 | $1,389.00 | View |
| LS-2FCK-600X450-D50 | 600 x 450 mm | 600x450 | Φ50 | 632x482x11.5 | $1,819.00 | View |
| LS-2FCK-800X600-D50 | 800 x 600 mm | 800x600 | Φ50 | 832x632x11.5 | $3,079.00 | View |
| LS-2FCK-900X618-D50 | 900 x 618 mm | 900x618 | Φ50 | 932x650x11.5 | $3,529.00 | View |
| LS-2FCK-1568X668-D50 | 1568 x 668 mm | 1568x668 | Φ50 | 1600x700x11.5 | $6,479.00 | View |
