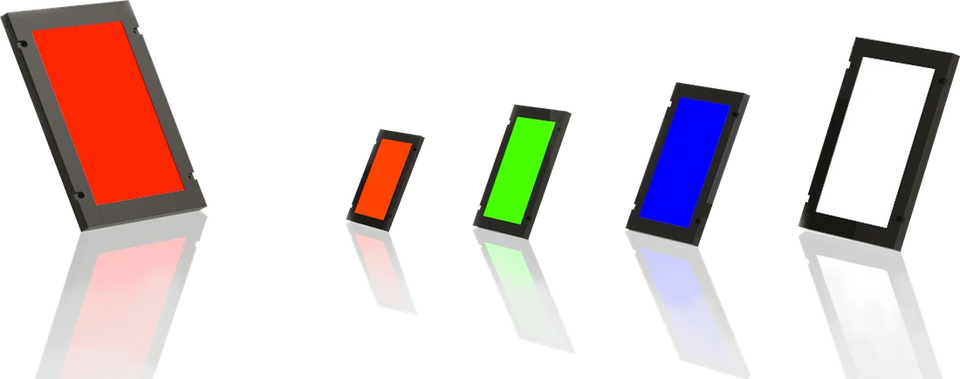

Flank Back Light (FC series)
- 14 models
- from $79.00
- Series LS-FC
The Flank Back Light (FC series) is a range of 14 backlights from LumaSpec Vision, from $79.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 25 x 25 mm, 50 x 50 mm, 70 x 70 mm, 80 x 80 mm, 90 x 90 mm, 110 x 110 mm, 150 x 100 mm, 200 x 160 mm, 200 x 200 mm, 250 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 300 mm, 600 x 400 mm
- Colour
- Red, Green, Blue, White
- Type
- Edge-lit / ultra-thin
- Voltage
- 24 V
Features
- Flexible design for width and length dimensions.
- Suitable for uniform illumination over large areas, effectively highlighting workpiece contours.
- High uniformity.
Typical uses
- Precision part size measurement, edge damage detection, transparent surface scratch, internal foreign object detection, liquid level check, liquid contaminant detection.
- PCB flexible board circuit inspection
- Spoon burr defect detection
- Connector gap inspection
- Gold plating positioning inspection
All 14 models in the Flank Back Light (FC series)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FC-25X25 | 25 x 25 mm | 25x25 | 60x60x9.5 | 2 | $79.00 | View |
| LS-FC-50X50 | 50 x 50 mm | 50x50 | 85x85x9.5 | 4 | $89.00 | View |
| LS-FC-70X70 | 70 x 70 mm | 70x70 | 105x105x9.5 | 5 | $99.00 | View |
| LS-FC-80X80 | 80 x 80 mm | 80x80 | 115x115x9.5 | 5 | $99.00 | View |
| LS-FC-90X90 | 90 x 90 mm | 90x90 | 125x125x9.5 | 5 | $109.00 | View |
| LS-FC-110X110 | 110 x 110 mm | 110x110 | 145x145x9.5 | 6 | $119.00 | View |
| LS-FC-150X100 | 150 x 100 mm | 150x100 | 185x135x9.5 | 6 | $129.00 | View |
| LS-FC-200X160 | 200 x 160 mm | 200x160 | 235x195x9.5 | 6 | $189.00 | View |
| LS-FC-200X200 | 200 x 200 mm | 200x200 | 235x235x9.5 | 7 | $219.00 | View |
| LS-FC-250X200 | 250 x 200 mm | 250x200 | 285x235x9.5 | 8 | $259.00 | View |
| LS-FC-300X200 | 300 x 200 mm | 300x200 | 335x235x9.5 | 10 | $289.00 | View |
| LS-FC-300X300 | 300 x 300 mm | 300x300 | 335x335x9.5 | 17 | $399.00 | View |
| LS-FC-400X300 | 400 x 300 mm | 400x300 | 435x335x9.5 | 18 | $509.00 | View |
| LS-FC-600X400 | 600 x 400 mm | 600x400 | 635x435x9.5 | 20 | $939.00 | View |
