Backlights
70 x 70 mm Edge-Lit LED Backlight (LS-FC-70X70)
Model LS-FC-70X70
- ColourRed, Green, Blue, White
- Emitting area70x70 mm
- Size105x105x9.5 mm
- Voltage24 V
- Power7 W
$99.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
70 x 70 mm Edge-Lit LED Backlight. Edge-lit (side-lit) backlight: LEDs at the edge feed a light-guide plate, giving a 9.5 mm thin panel with uniform large-area illumination that highlights workpiece contours.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FC-70X70 |
|---|---|
| Construction (setup diagram) | LED / housing / light-guide plate |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 70x70 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 5 |
| Power W/B/G (W) | 7 |
Mechanical
| Outer size L x W x H (mm) | 105x105x9.5 |
|---|---|
| Thickness (mm) | 9.5 |
| Mounting | X-Φ3.2 through holes (installation); 4-6 depth 3 |
| Shipping weight (estimated) | 0.30 kg |

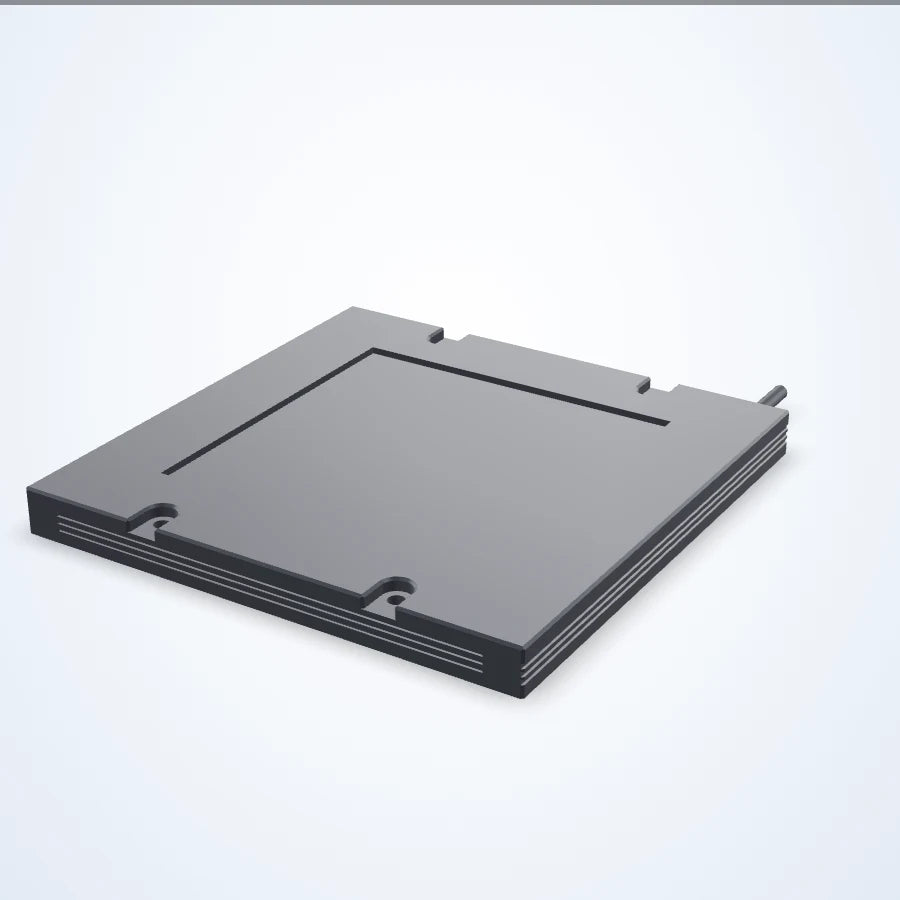

Photo shows a representative model of this series; see the specifications for this model.
Mounting and drawing data
drawing table (LS-FC-AXB; X = qty of 3.2 mm through mounting holes): X=4, C=50, D=94
Other models in the Flank Back Light (FC series) series
See all 14 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|

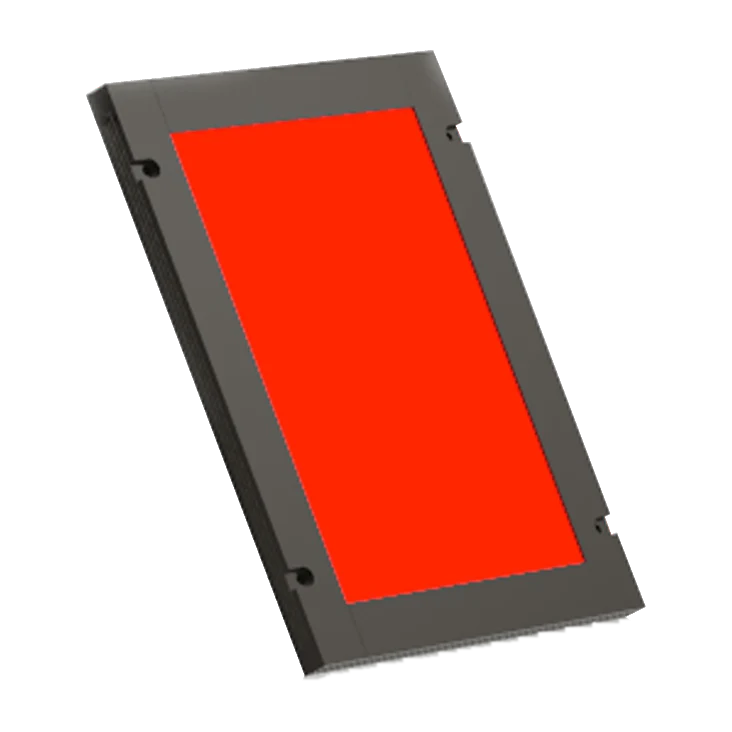

| LS-FC-25X25 | 25 x 25 mm | $79.00 | 19 in stock | View |
