Rendered illustration: the actual product may differ in appearance.
Backlights

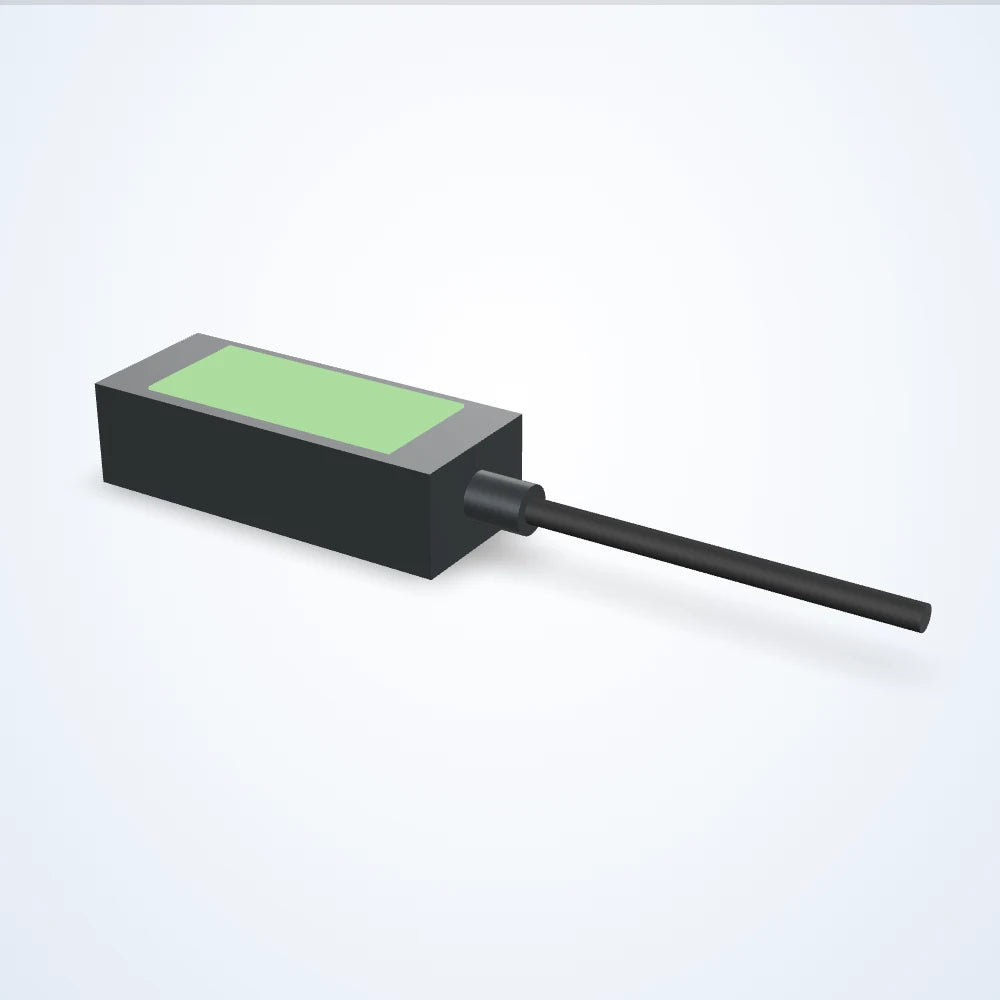

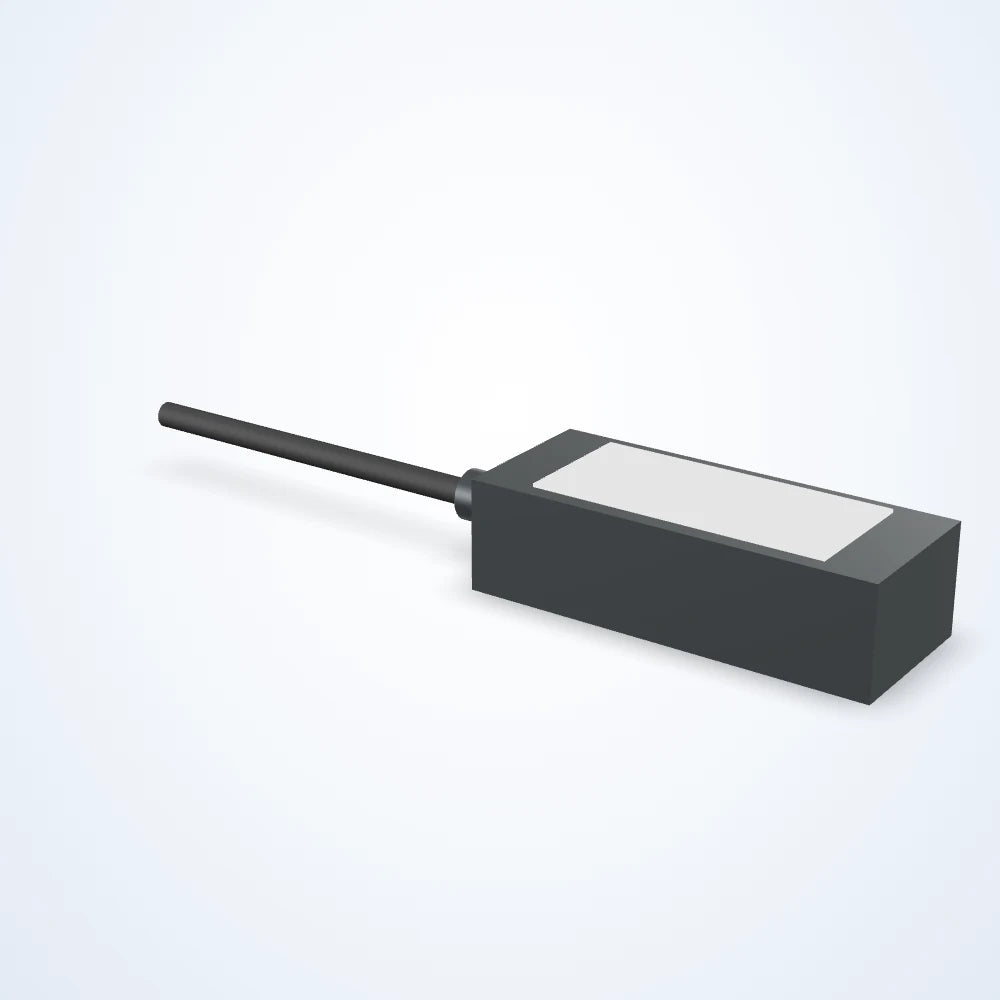

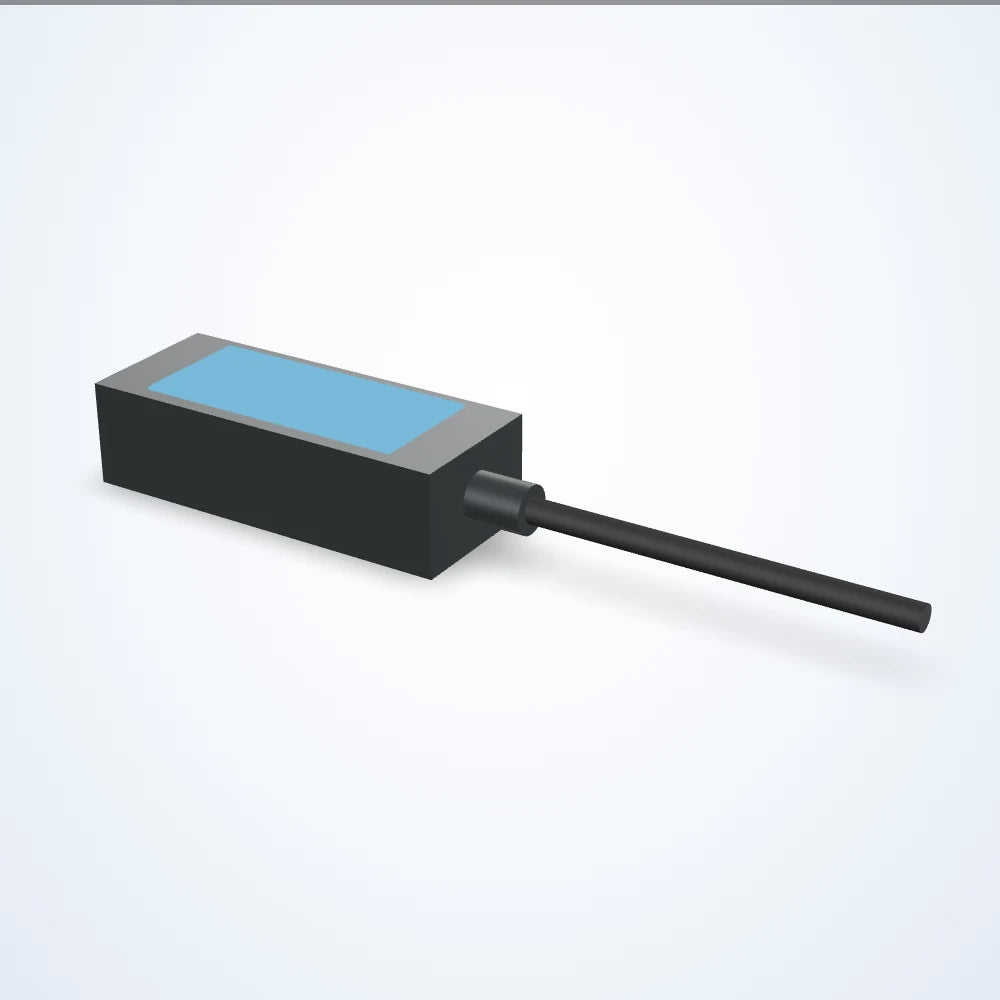

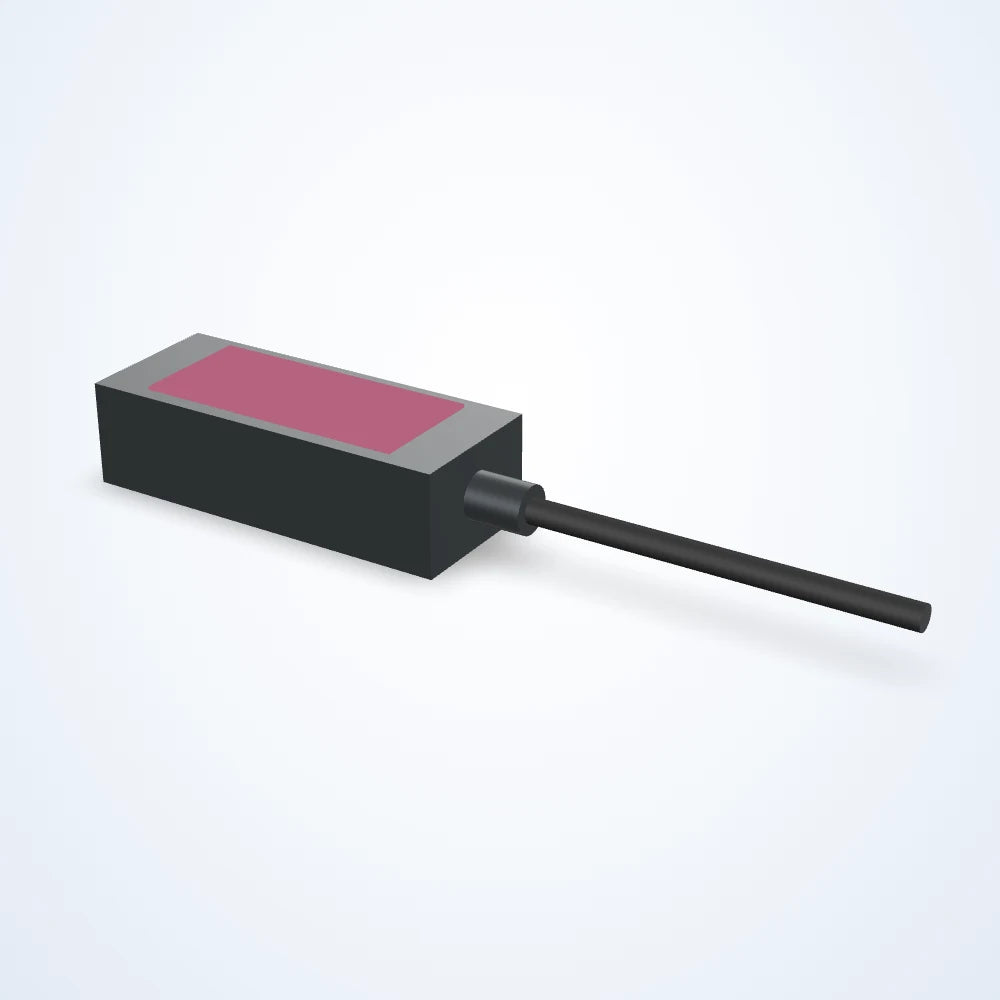

Backlight, 57.7 x 25.7 mm lit area (LS-BKL-0131)
Model LS-BKL-0131
- ColourWhite, Infrared, Red, Green, Blue
- Voltage24 VDC
- TypeStandard
- Wavelength850 nm, 940 nm
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 32 available
Configuration LS-BKL-0131-01 $529.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 57.7 x 25.7 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (32 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0131 |
|---|---|
| Connection at light | Hardwired |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum constant on current (mA) | 378 / 756 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 8000 (by configuration) |
| Maximum input power constant on (W) | 9.1 / 18.1 (by configuration) |
| Maximum input power overcurrent strobe (W) | 125 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 60 (by configuration) |
| Minimum overcurrent strobe duration (µs) | 30 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |
Mechanical

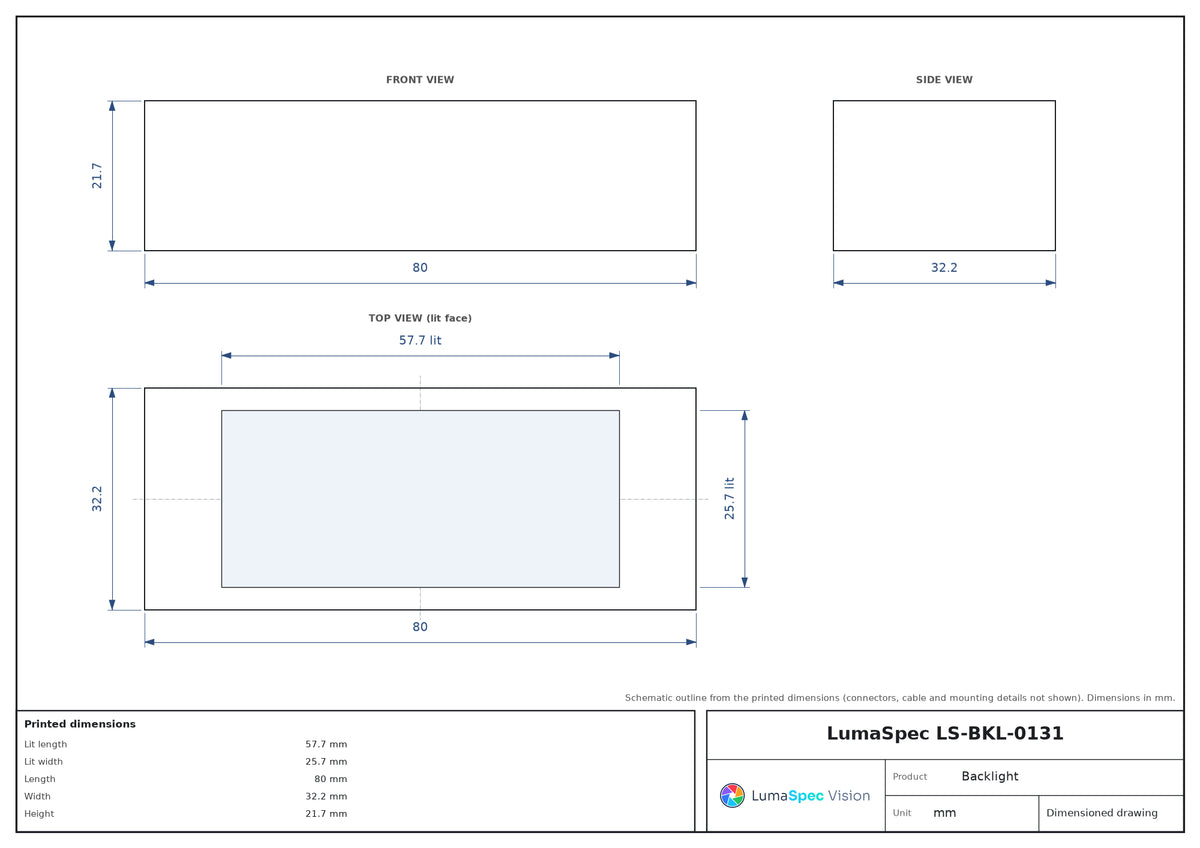

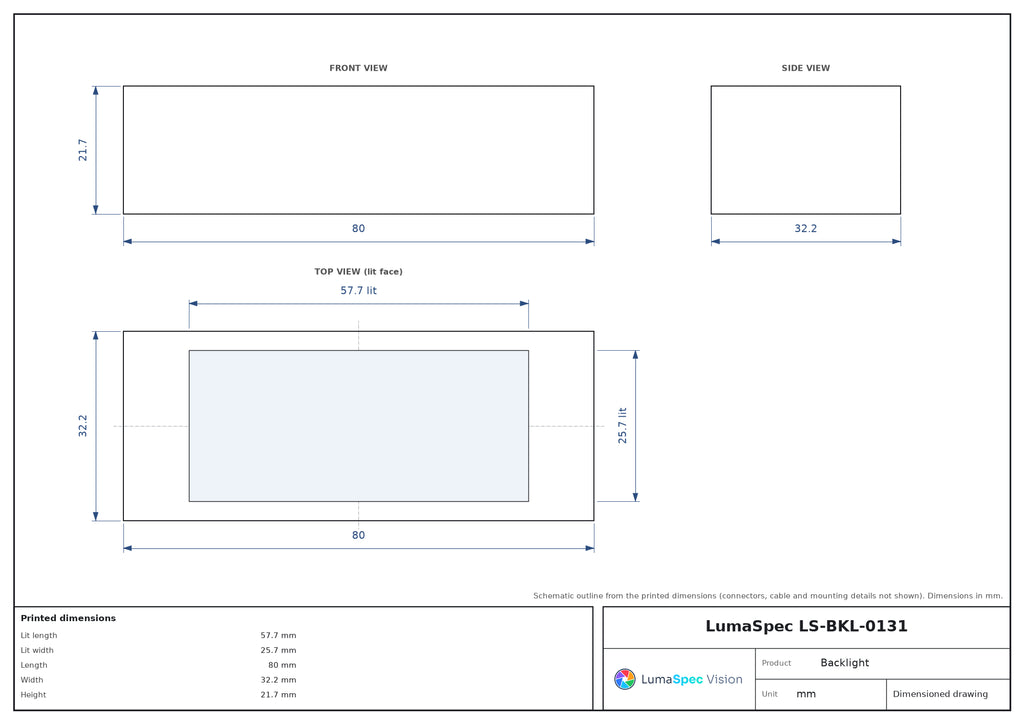

| Lit length (mm) | 57.7 |
|---|---|
| Lit width (mm) | 25.7 |
| Length (mm) | 80 |
| Width (mm) | 32.2 |
| Height (mm) | 21.7 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
Other models in the Backlight series, 21.7 mm high, Flying Leads series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0132 | 108.5 x 25.7 mm | $609.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0133 | 159.3 x 25.7 mm | $769.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0134 | 210.1 x 25.7 mm | $879.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0135 | 260.9 x 25.7 mm | $1,019.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0136 | 311.7 x 25.7 mm | $1,149.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0137 | 362.5 x 25.7 mm | $1,289.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0138 | 413.3 x 25.7 mm | $1,429.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0139 | 464.1 x 25.7 mm | $1,559.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0140 | 514.9 x 25.7 mm | $1,699.00 Quote | Built to order: ships in about 4-5 weeks | View |
