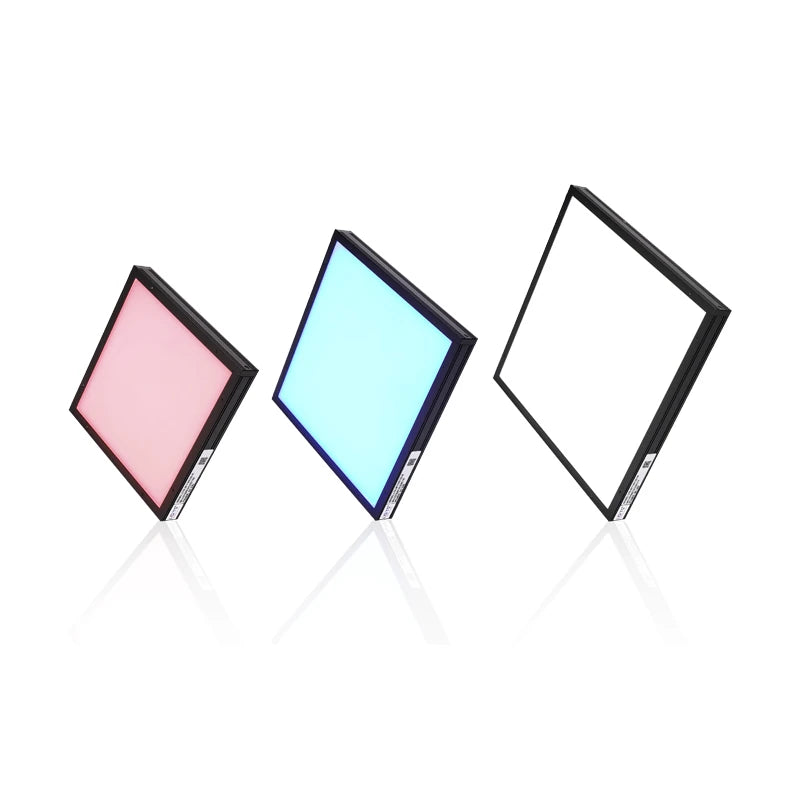

Back light (LS-BKL-S97)
- 22 models
- from $139.00
- Series LS-BKL-S97
The Back light (LS-BKL-S97) is a range of 22 backlights from LumaSpec Vision, from $139.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- Under 50 mm, 50-100 mm, 100-200 mm, 200-400 mm
- Type
- Standard
- Voltage
- 24 V
Features
- High cost-effective
- Imported ultra-thin surface-mount LED, high brightness, good uniformity
- The shell adopts precision mold and high-precision
- CNC machining, with little difference
- Flexible size, convenient for customization, wide range of application
Typical uses
- Contour dimension measurement
- damaged edge inspection
- transparency impurity inspection
- oral liquid level height inspection
All 22 models in the Back light (LS-BKL-S97)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-0973 | 30 x 30 | 1.1W/1.1W | L44xW44xH17(mm) | 4-M3 depth 4 (reverse side) | $139.00 | View |
| LS-BKL-0974 | 60 x 40 | 2.2W/2.7W | L74xW54xH17(mm) | 4-M3 depth 4 | $149.00 | View |
| LS-BKL-0975 | 50 x 50 | 2.2W/3.7W | L64xW64xH17(mm) | 6-M3 depth 4 (reverse side) | $149.00 | View |
| LS-BKL-0976 | 60 x 60 | 4.8W/4.8W | L74XW74XH17(mm) | 6-M3 depth 4 (reverse side) | $159.00 | View |
| LS-BKL-0977 | 70 x 70 | 4.8W/5.3W | L84xW84xH17(mm) | 6-M3 depth 4 (reverse side) | $159.00 | View |
| LS-BKL-0978 | 80 x 80 | 6.4W/8.0W | L94xW94xH17(mm) | 6-M3 depth 4 (reverse side) | $169.00 | View |
| LS-BKL-0980 | 110 x 60 | 6.4W/7.4W | L124xW74xH17(mm) | 4-M3 depth 4 (reverse side) | $169.00 | View |
| LS-BKL-0981 | 130 x 50 | 4.752W/6.4W | L144xW64xH17(mm) | 4-M3 depth 4 (reverse side) | $169.00 | View |
| LS-BKL-0979 | 90 x 90 | 6.4W/8.0W | L104xW104xH17(mm) | 6-M3 depth 4 (reverse side) | $179.00 | View |
| LS-BKL-0982 | 6.4W/8.0W | L164xW64xH17(mm) | 4-M3 depth 4 (reverse side) | $179.00 | View | |
| LS-BKL-0984 | 100 x 100 | 9.6W/11.4W | L114xW114xH17(mm) | 8-M3 depth 4 (reverse side) | $189.00 | View |
| LS-BKL-0985 | 120 | 11.1W/14.8W | L134xW134xH17(mm) | 8-M3 depth 4 (reverse side) | $219.00 | View |
| LS-BKL-0988 | 150 x 100 | 11.7W/14.3W | L164xW114xH17(mm) | 8-M3 depth 4 (reverse side) | $219.00 | View |
| LS-BKL-0983 | 170 x 90 | 12.7W/15.9W | L184xW104xH17(mm) | 4-M3 depth 4 (reverse side) | $229.00 | View |
| LS-BKL-0986 | 130 | 12.7W/15.9W | L144xW144xH17(mm) | 8-M3 depth 4 (reverse side) | $239.00 | View |
| LS-BKL-0991 | 180 x 100 | 12.7W/17.5W | L194xW114xH17mm) | 6-M3 depth 4 (reverse side) | $239.00 | View |
| LS-BKL-0987 | 140 x 140 | 12.7W/16.9W | L154xW154xH17(mm) | 8-M3 depth 4 (reverse side) | $249.00 | View |
| LS-BKL-0989 | 150 x 150 | 19.1W/23.8W | L164xW164xH17(mm) | 8-M3 depth 4 (reverse side) | $269.00 | View |
| LS-BKL-0990 | 160 x 160 | 19.0W/23.8W | L174xW174xH17(mm) | 8-M3 depth 4 (reverse side) | $289.00 | View |
| LS-BKL-0992 | 180 x 140 | 21.2W/26.4W | L194xW154xH17(mm) | 6-M3 depth 4 (reverse side) | $289.00 | View |
| LS-BKL-0993 | 180 x 180 | 21.2W/26.4W | L194xW194xH17(mm) | 8-M3 depth 4 (reverse side) | $329.00 | View |
| LS-BKL-0994 | 200 x 200 | 25.4W/34.9W | L214xW214xH17mm | 10-M3 depth 4 (reverse side) | $379.00 | View |
