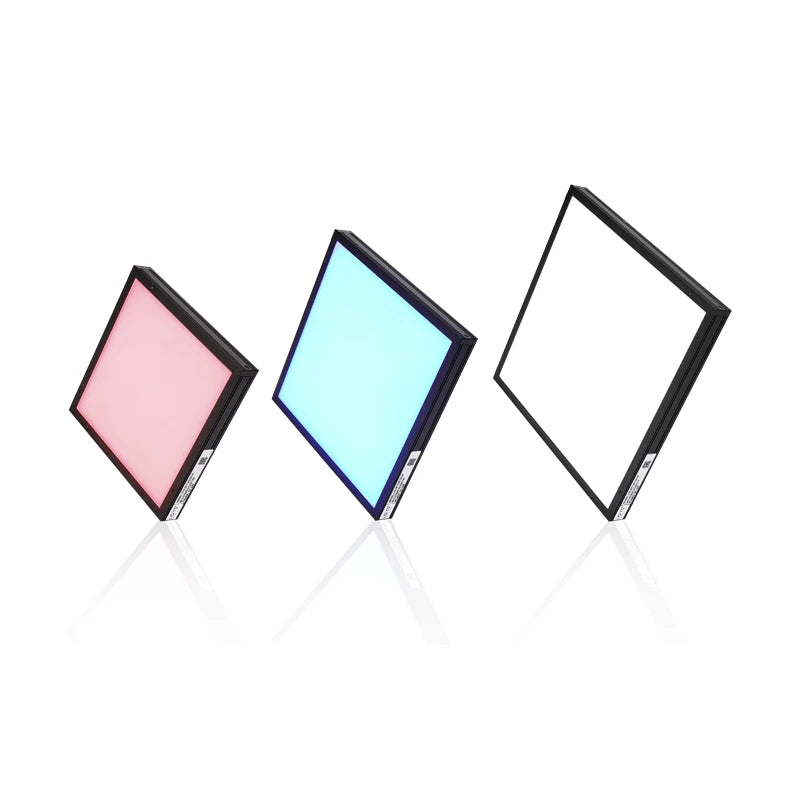

Representative photo of this series
Backlights

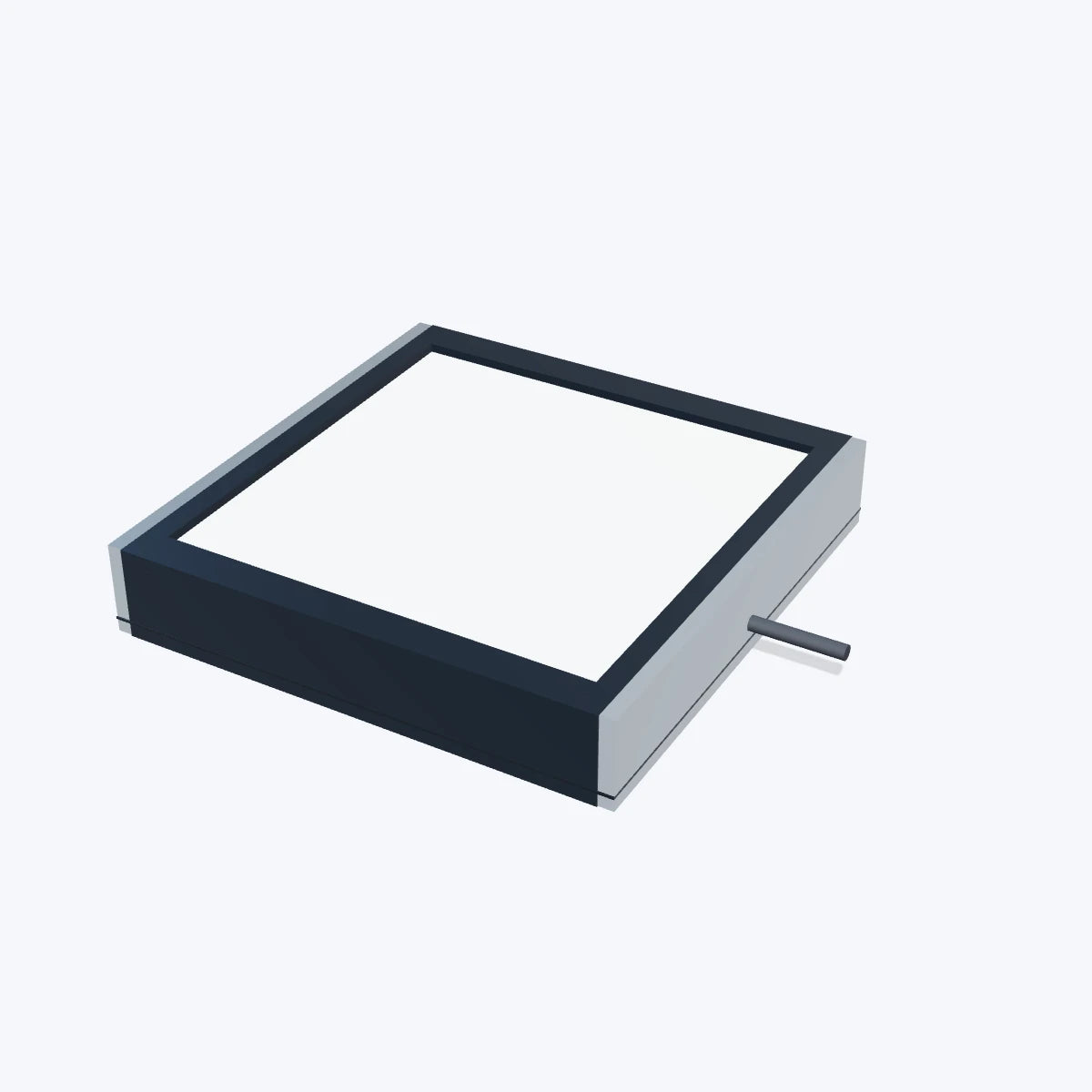

Back light, 94 x 94 x 17 mm (LS-BKL-0978)
Model LS-BKL-0978
- ColourRed, Blue, Green, White
- Emitting area80 x 80 mm
- SizeL94xW94xH17(mm)
- Voltage24V
- Power6.4W/8.0W
$169.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Adopting lightweight design, the new back light LS-BKL-S83 series completely change the old and heavy image. The installation groove can be used as a heat sink, which not only can lighten the weight, but also increase the brightness and installation flexibility. Besides, the use of imported ultra-thin chip LEDs can effectively improve the brightness and uniformity.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0978 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 80 x 80 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 6.4W/8.0W |
| Input voltage | DC 24V (max) |

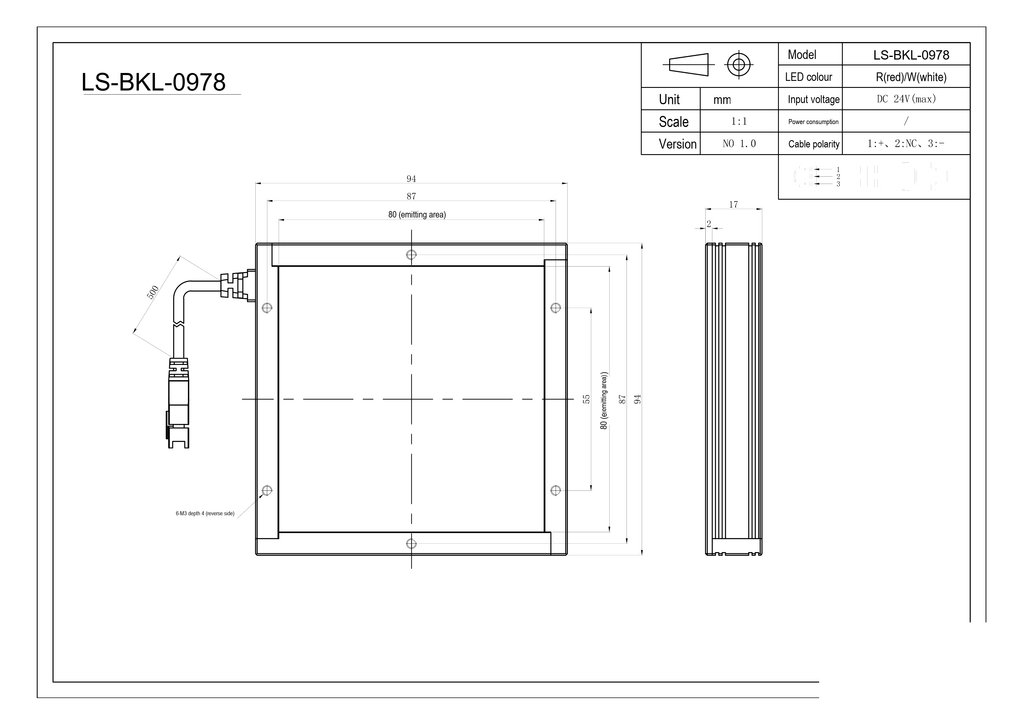

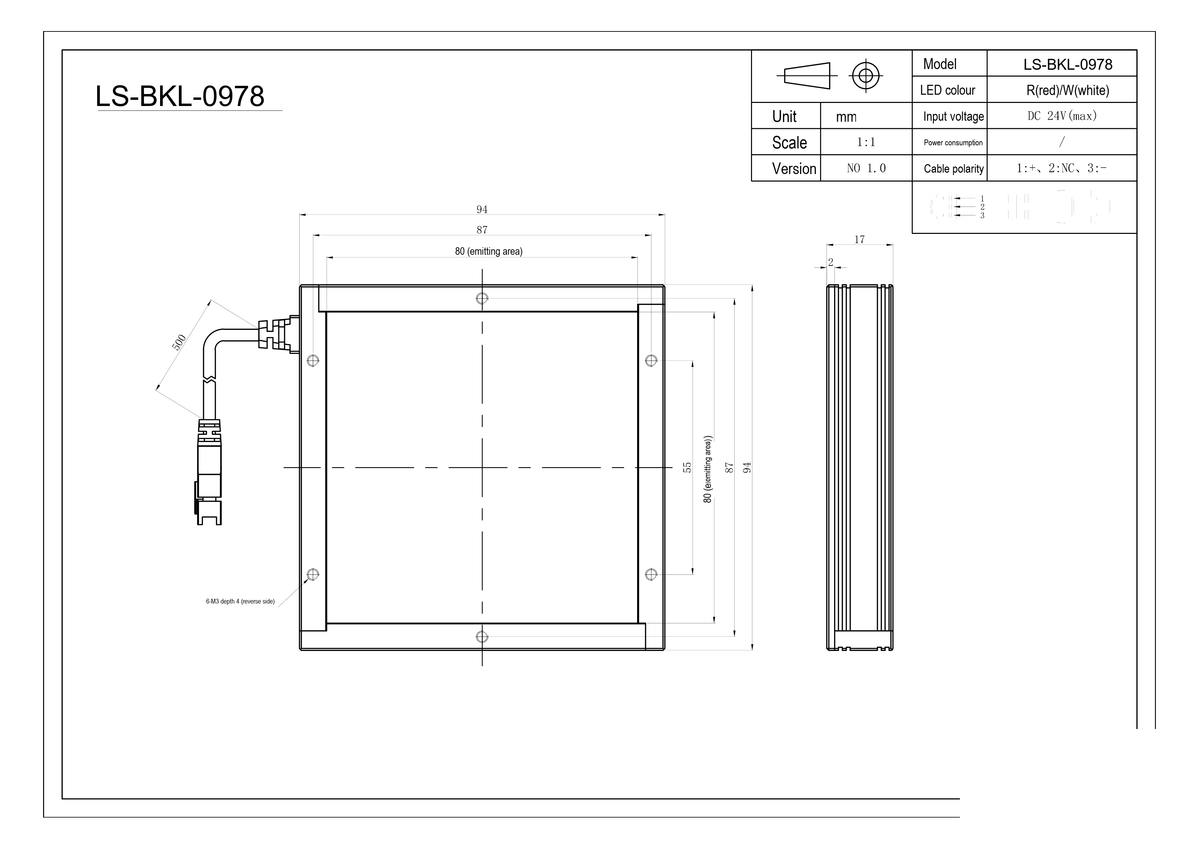

Mechanical
| Dimension | L94xW94xH17(mm) |
|---|---|
| Mounting holes | 6-M3 depth 4 (reverse side) |
| Shipping weight | 0.35 kg |
Other models in the Back light (LS-BKL-S97) series
See all 22 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0973 | Red, Blue, Green, White · 30 x 30 mm | $139.00 | 10 in stock | View |
| LS-BKL-0974 | Red, Blue, Green, White · 60 x 40 mm | $149.00 | 14 in stock | View |
| LS-BKL-0975 | Red, Blue, Green, White · 50 x 50 mm | $149.00 | 16 in stock | View |
| LS-BKL-0976 | Red, Blue, Green, White · 60 x 60 mm | $159.00 | 14 in stock | View |
| LS-BKL-0977 | Red, Blue, Green, White · 70 x 70 mm | $159.00 | 15 in stock | View |
| LS-BKL-0980 | Red, Blue, Green, White · 110 x 60 mm | $169.00 | 11 in stock | View |
| LS-BKL-0981 | Red, Blue, Green, White · 130 x 50 mm | $169.00 | 15 in stock | View |
| LS-BKL-0979 | Red, Blue, Green, White · 90 x 90 mm | $179.00 | 15 in stock | View |
| LS-BKL-0982 | Red, Blue, Green, White · L164xW64xH17(mm) | $179.00 | 14 in stock | View |
| LS-BKL-0984 | Red, Blue, Green, White · 100 x 100 mm | $189.00 | 14 in stock | View |
| LS-BKL-0985 | Red, Blue, Green, White · 120 mm | $219.00 | 13 in stock | View |
| LS-BKL-0988 | Red, Blue, Green, White · 150 x 100 mm | $219.00 | 19 in stock | View |
| LS-BKL-0983 | Red, Blue, Green, White · 170 x 90 mm | $229.00 | 15 in stock | View |
| LS-BKL-0986 | Red, Blue, Green, White · 130 mm | $239.00 | 18 in stock | View |
| LS-BKL-0991 | Red, Blue, Green, White · 180 x 100 mm | $239.00 | 15 in stock | View |
| LS-BKL-0987 | Red, Blue, Green, White · 140 x 140 mm | $249.00 | 13 in stock | View |
| LS-BKL-0989 | Red, Blue, Green, White · 150 x 150 mm | $269.00 | 11 in stock | View |
| LS-BKL-0990 | Red, Blue, Green, White · 160 x 160 mm | $289.00 | 15 in stock | View |
| LS-BKL-0992 | Red, Blue, Green, White · 180 x 140 mm | $289.00 | 13 in stock | View |
| LS-BKL-0993 | Red, Blue, Green, White · 180 x 180 mm | $329.00 | 19 in stock | View |
| LS-BKL-0994 | Red, Blue, Green, White · 200 x 200 mm | $379.00 | 15 in stock | View |
