Backlights
500 x 400 mm Side light / edge-lit area light (LS-BKL-1285)
Model LS-BKL-1285-R
- ColourRed, Green, Blue, White
- Emitting area500 x 400 mm
- TypeEdge-lit / ultra-thin
- Voltage24 V
$1,249.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Edge-lit area light: the LEDs are distributed evenly along the sides of the light and a light-guide plate and diffuser form an even emitting surface. Sizes are flexible and easy to customise; square or round holes can be made.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1285 |
|---|---|
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Centre hole dia. (mm) | 70 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 500 x 400 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Power, green / blue / white (W) | 52.0 |
|---|---|
| Power, red (W) | 43.0 |
| Recommended controllers | LS-CTL-0140, -2T / LS-CTL-0142 / LS-CTL-0526, -4T / LS-CTL-0333, -4T, -6T, -8T |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0140, LS-CTL-0142, LS-CTL-0526, LS-CTL-0333 |
Mechanical

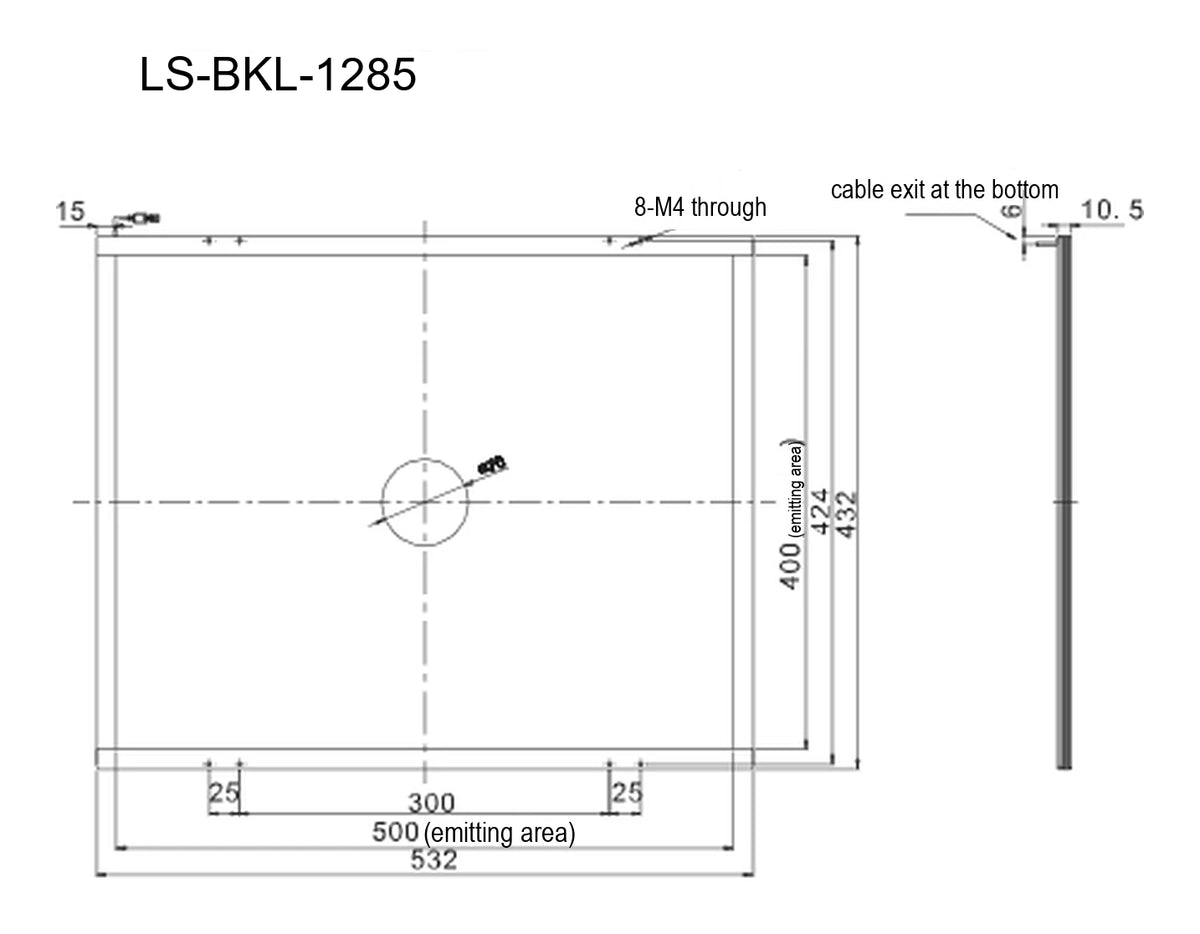

| Mounting | M4 through holes (per drawing) |
|---|---|
| Shipping weight | 0.20 kg |
