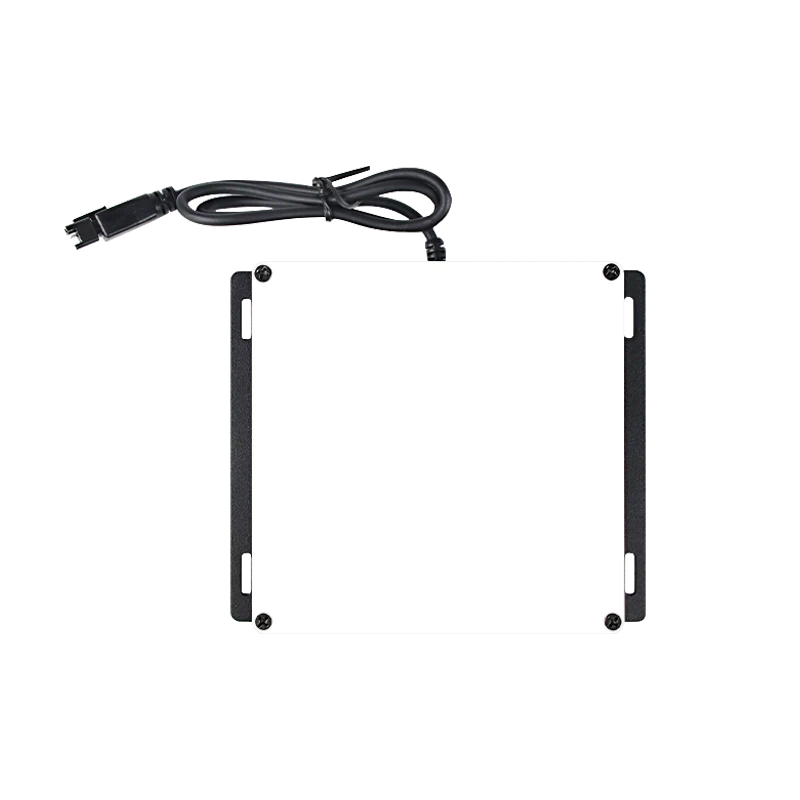

100 x 100 mm Collimated backlight, 130 x 110 x 22.5 mm (LS-BKL-0912)

Model LS-BKL-0912

ColourRed, Blue, White
Voltage24 V
TypeCollimated
ConnectorSM3

$279.00

Ships in 2-3 weeks

0.55 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

3.0 collimated back light high directional LED beam with precision lens can uniformly illuminate and suppress stray light.Support customized color, wavelength, luminous size, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-0912
M3 nut slot	√
Category	Collimated backlight
Terminal Plug	Flat head 3PIN2 pin
Cooling	Naturalair cooling
Electrical insulation capacity	DC500V Insulation resistance>20 megohms
Pressure Resistance Requirements	AC1000 V10mA/5S
Flammability Rating	IEC60707
Value-added Services	One year free technical support

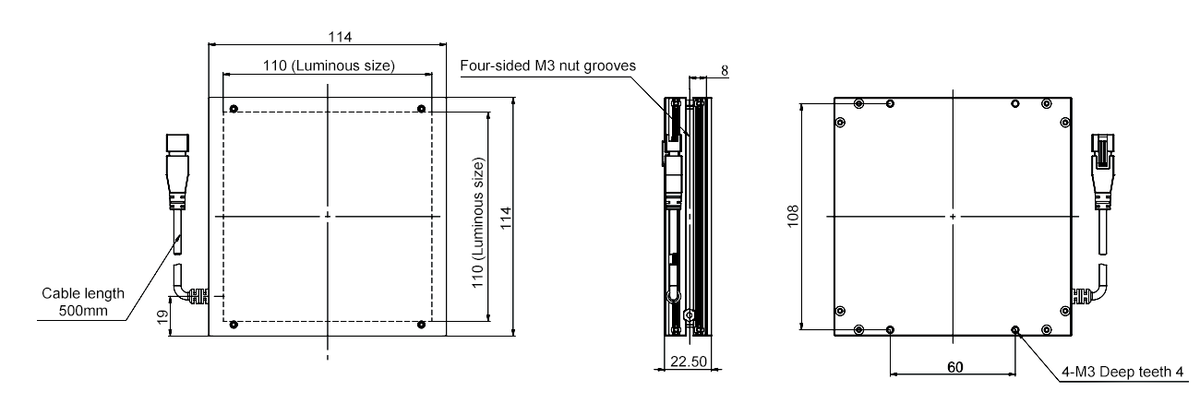

Long (mm)	130
Wide (mm)	110
High (mm)	22.5
Remarks	SM3 (1.3 pin) interface

Interfaces and I/O

Interface	SM3 (1.3 pin)
Cable length	0.5m
Connector Definition	1:positive(+)red; 2:leave empty; 3:negative(-)black.
Mating cable (optional)	1.Light source extension cable 2.Connector adapter cable

Light

LED type	SMD
Luminous size (mm)	100*100
Color	red/white/blue/green
Wavelength	red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm
Color temperature	red: —; white: 6000-6500K; blue: —; green: —
Brightness Controller (optional)	1.Analog Controller 2.Digital Controller

Environment and compliance

Operating Temperature and Humidity	Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing)
Lifespan	Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value

Electrical

Power tolerance	actual product power within ±10% of the table is the normal range
Voltage (V)	24
Power red (W)	8.4
Power blue/white (W)	10.0

Mechanical

Installation method	M3 nut slot (four-sided M3 nut grooves) and bottom side installation
Shell material	Aluminum Alloy (Oxidative blackened surface)
Shell Hardness Parameters	Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g
Shipping weight	0.55 kg

Downloads

Datasheet (PDF)LS-BKL-0912 · 419 KB

Features

Collimated (parallel) backlight for sharp edges in measurement
Four-sided M3 nut grooves and bottom side installation
Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
SM3 (1.3 pin) interface
Luminous size:100mm*100mm.
Brightness level 255, connected to the controller can be adjusted.
Life span:50000 hours for red light and 30000 hours for white light.
Suitable for defect detection, size measurement, complex surface detection, positioning and alignment of transparent/translucent materials.

Applications

Metal cylinder profile measurement
Glass bottle diameter measurement
Large-area circuit board component detection and identification
Dimension measurement of metal parts
Wafer surface defect detection
