Ring back light (LS-BKL-S95)
  • Ring back light (LS-BKL-S95)

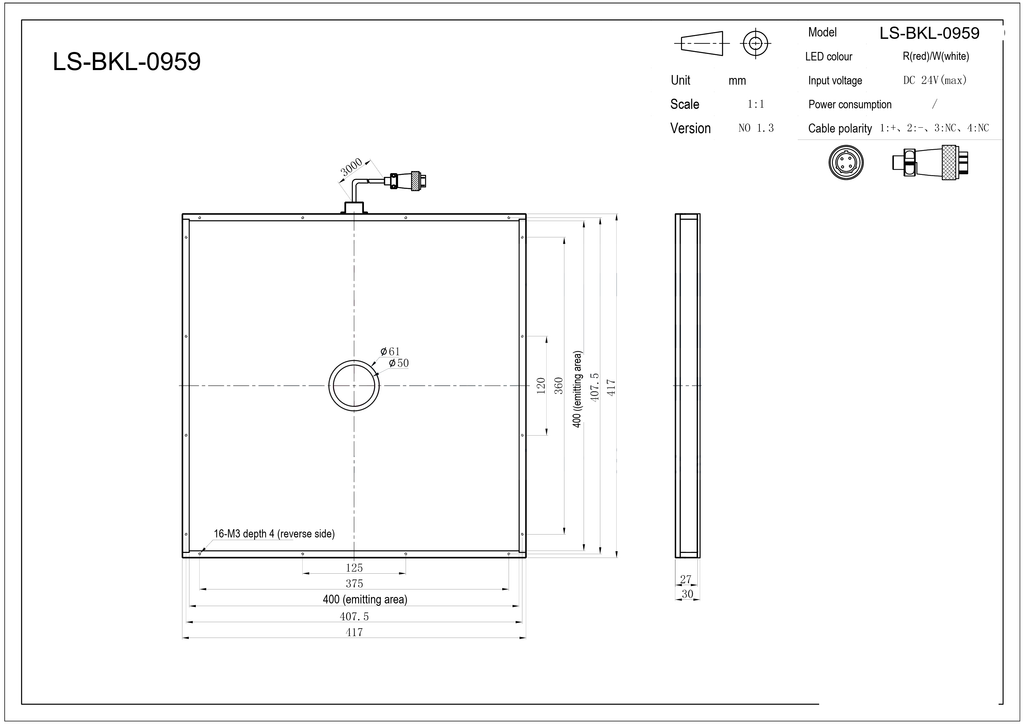

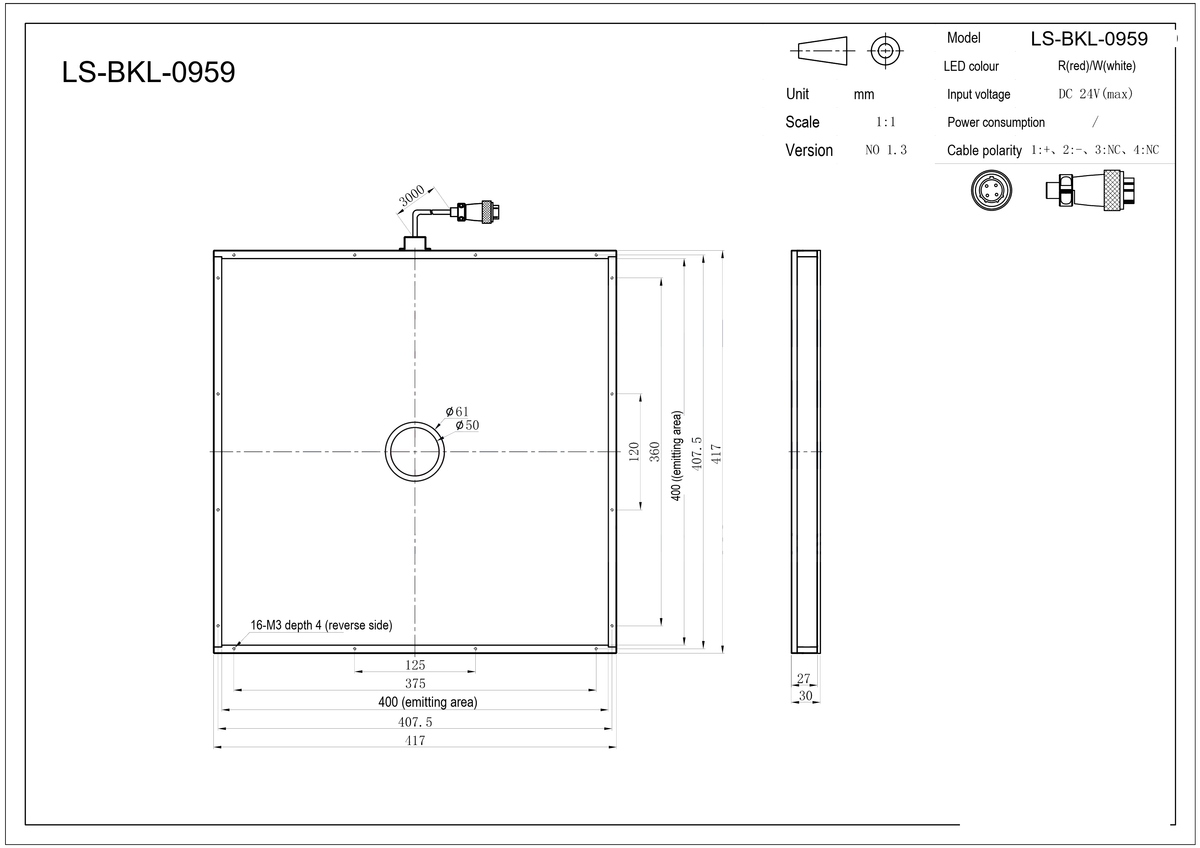

  • LS-BKL-0959 dimensions (mm)

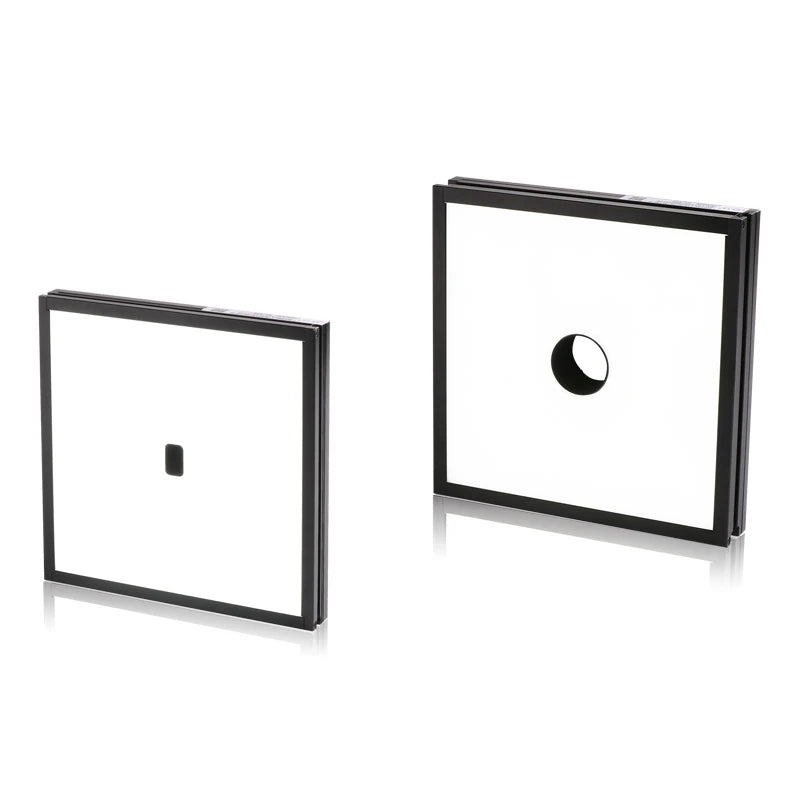

Representative photo of this series

Backlights

Ring back light, 417 x 417 x 30 mm (LS-BKL-0959)

Model LS-BKL-0959

  • ColourRed, Blue, Green, White
  • Emitting area400 x 400 mm
  • SizeL417xW417xH30(mm)
  • Voltage24V
  • Power82.6W/103.5W
$1,059.00

Ships in 2-3 weeks

4.2 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring back light, 417 x 417 x 30 mm (LS-BKL-0959)LS-BKL-0959

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High-density LED distribute to the bottom of the light. High uniformity, high luminance. Diverse dimension for reference, used to various applications.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0959
NoteUV & IR light can be customized as required.

Interfaces and I/O

Cable polarity1: +, 2: -, 3: NC, 4: NC

Light

LED colourR(red)/W(white)
Emitting surface (mm)400 x 400

Electrical

Voltage24V
Power82.6W/103.5W
Input voltageDC 24V (max)

Mechanical

DimensionL417xW417xH30(mm)
Mounting holes16-M3 depth 4 (reverse side)
Shipping weight4.20 kg

Other models in the Ring back light (LS-BKL-S95) series

See all 15 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-0949 Red, Blue, Green, White · 100 x 100 mm $199.00 Ships in 2-3 weeks View
LS-BKL-0950 Red, Blue, Green, White · 110 x 110 mm $209.00 Ships in 2-3 weeks View
LS-BKL-0951 Red, Blue, Green, White · 150 x 100 mm $229.00 Ships in 2-3 weeks View
LS-BKL-0952 Red, Blue, Green, White · 150 x 150 mm $279.00 Ships in 2-3 weeks View
LS-BKL-0953 Red, Blue, Green, White · 200 x 200 mm $389.00 Ships in 2-3 weeks View
LS-BKL-0954 Red, Blue, Green, White · L237xW237xH27(mm) $449.00 Ships in 2-3 weeks View
LS-BKL-0955 Red, Blue, Green, White · L317xW217xH25(mm) $509.00 Ships in 2-3 weeks View
LS-BKL-0956 Red, Blue, Green, White · 300 x 300 mm $679.00 Ships in 2-3 weeks View
LS-BKL-0957 Red, Blue, Green, White · 350 x 300 mm $759.00 Ships in 2-3 weeks View
LS-BKL-0958 Red, Blue, Green, White · 400 x 300 mm $839.00 Ships in 2-3 weeks View
LS-BKL-0960 Red, Blue, Green, White · 500 x 400 mm $1,279.00 Ships in 2-3 weeks View
LS-BKL-0961 Red, Blue, Green, White · 500 x 500 mm $1,549.00 Ships in 2-3 weeks View
LS-BKL-0962 Red, Blue, Green, White · 600 x 600 mm $2,149.00 Ships in 2-3 weeks View
LS-BKL-0963 Red, Blue, Green, White · 1000 x 700 mm $3,999.00 Ships in 2-3 weeks View
