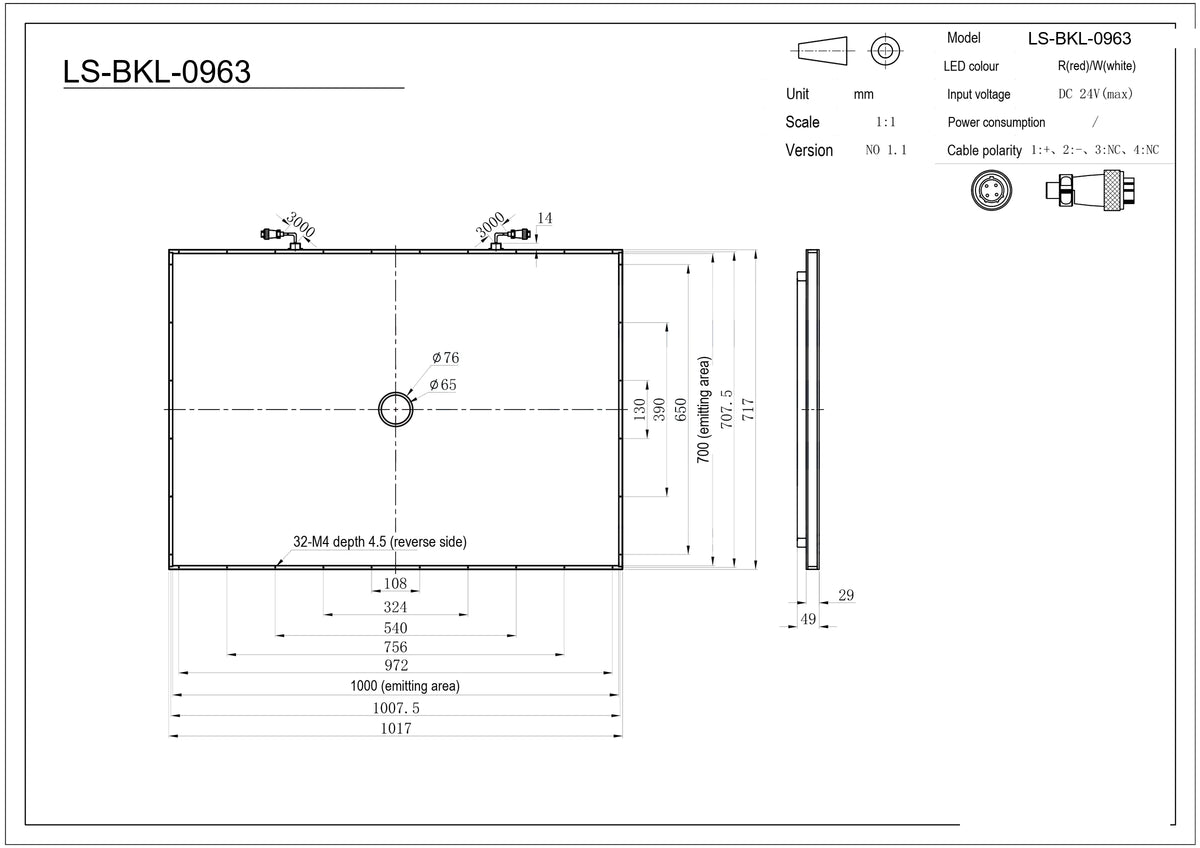

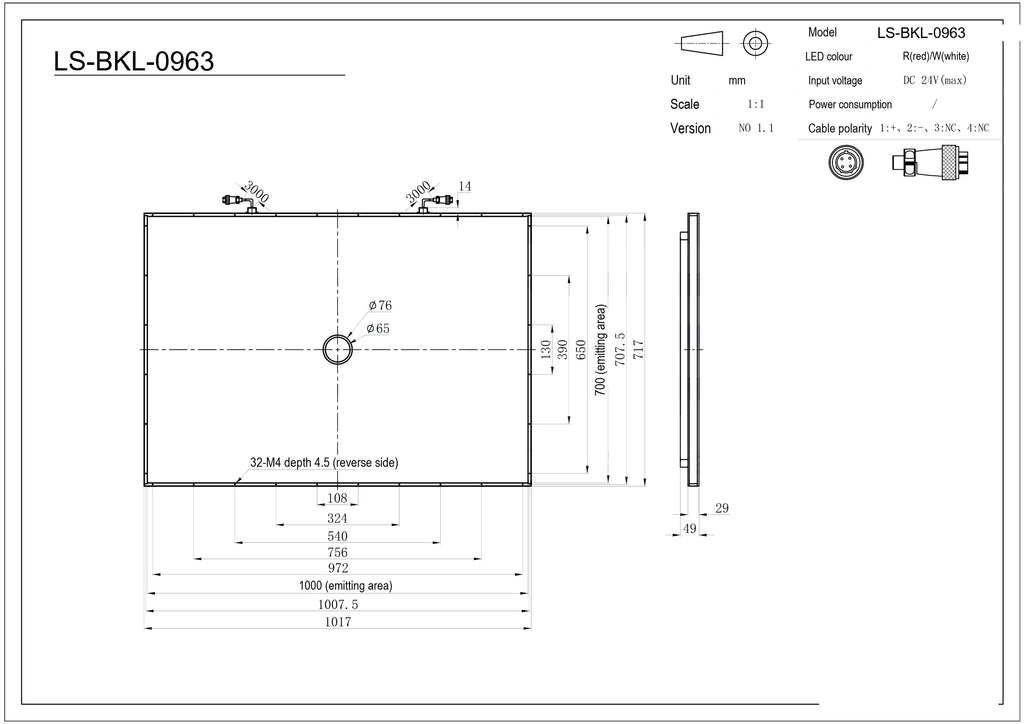

  • LS-BKL-0963 dimensions (mm)

Representative photo of this series

Backlights

Ring back light, 1017 x 717 x 51 mm (LS-BKL-0963)

Model LS-BKL-0963

  • ColourRed, Blue, Green, White
  • Emitting area1000 x 700 mm
  • SizeL1017xW717xH51(mm)
  • Voltage24V
  • Power363.6W/390.0W
$3,999.00

Ships in 2-3 weeks

16.7 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring back light, 1017 x 717 x 51 mm (LS-BKL-0963)LS-BKL-0963

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High-density LED distribute to the bottom of the light. High uniformity, high luminance. Diverse dimension for reference, used to various applications.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0963
NoteUV & IR light can be customized as required.

Interfaces and I/O

Cable polarity1: +, 2: -, 3: NC, 4: NC
Cable (mm)3000 (drawing)

Light

LED colourR(red)/W(white)
Emitting surface (mm)1000 x 700

Electrical

Voltage24V
Power363.6W/390.0W
Input voltageDC 24V (max)

Mechanical

DimensionL1017xW717xH51(mm)
Mounting holes32-M4 depth 4.5 (reverse side)
Shipping weight16.70 kg
