Opening side back light source (2KFS)
  • Opening side back light source (2KFS)

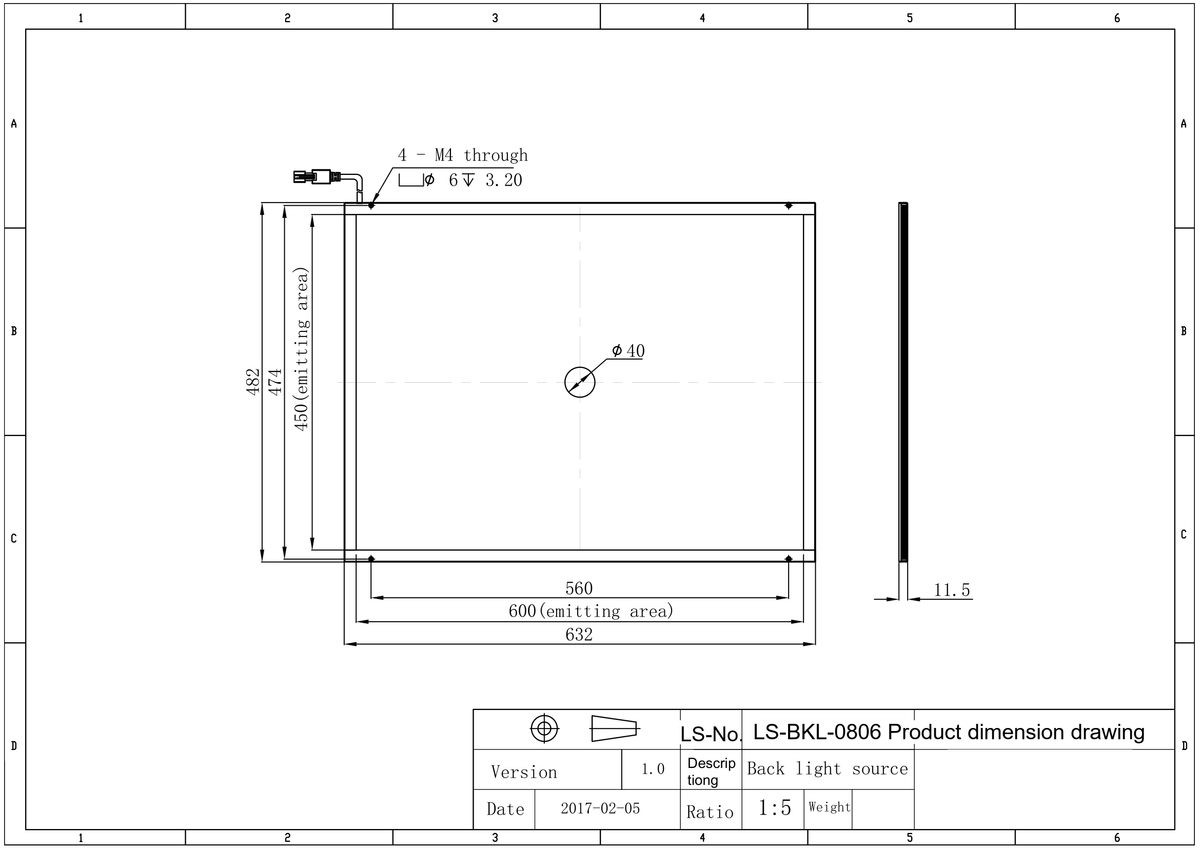

  • LS-BKL-0806 dimensions (mm)

Representative photo of this series

Backlights

600 x 450 mm Opening side back light source (LS-BKL-0806)

Model LS-BKL-0806

  • ColourRed, Green, Blue, White
  • TypeEdge-lit / ultra-thin
  • Voltage24 V
  • Wavelength red620-630 nm
$1,619.00

In stock - ships the same business day (3 available, order by 2 PM ET)

4.0 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

600 x 450 mm Opening side back light source (LS-BKL-0806)LS-BKL-0806

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ultra-thin side backlight with a hole through the centre; light from several sides gives overall uniformity. Flexible sizes, square or round holes can be opened on request.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0806
Optional accessoriesExtension cable
Service life (red)60000 h continuous at 25 °C, 50% illumination, to 50% decrement
Service life (white)30000 h continuous at 25 °C, 50% illumination, to 50% decrement
Overall L (mm)632
Overall W (mm)482
Overall H (mm)11.5
OpeningRound centre hole, dia. 40 mm

Light

Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm
Colour temperature white6000-6500 K
Wavelength IR850-940 nm
Wavelength UV365-405 nm
Illuminance chart referenceLS-BKL-0800-W; uniformity at LWD 100 mm, FOV 320 x 320 mm
Luminous size (mm)600 x 450

Environment and compliance

Storage temperature-20 to 60 °C
Operating temperature0 to 40 °C
Humidity20-85 %RH (non-condensing)

Electrical

ControllerLS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)68
Power G/B/W (W)79
Recommended controllerLS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

Shipping weight4.00 kg
