Backlights

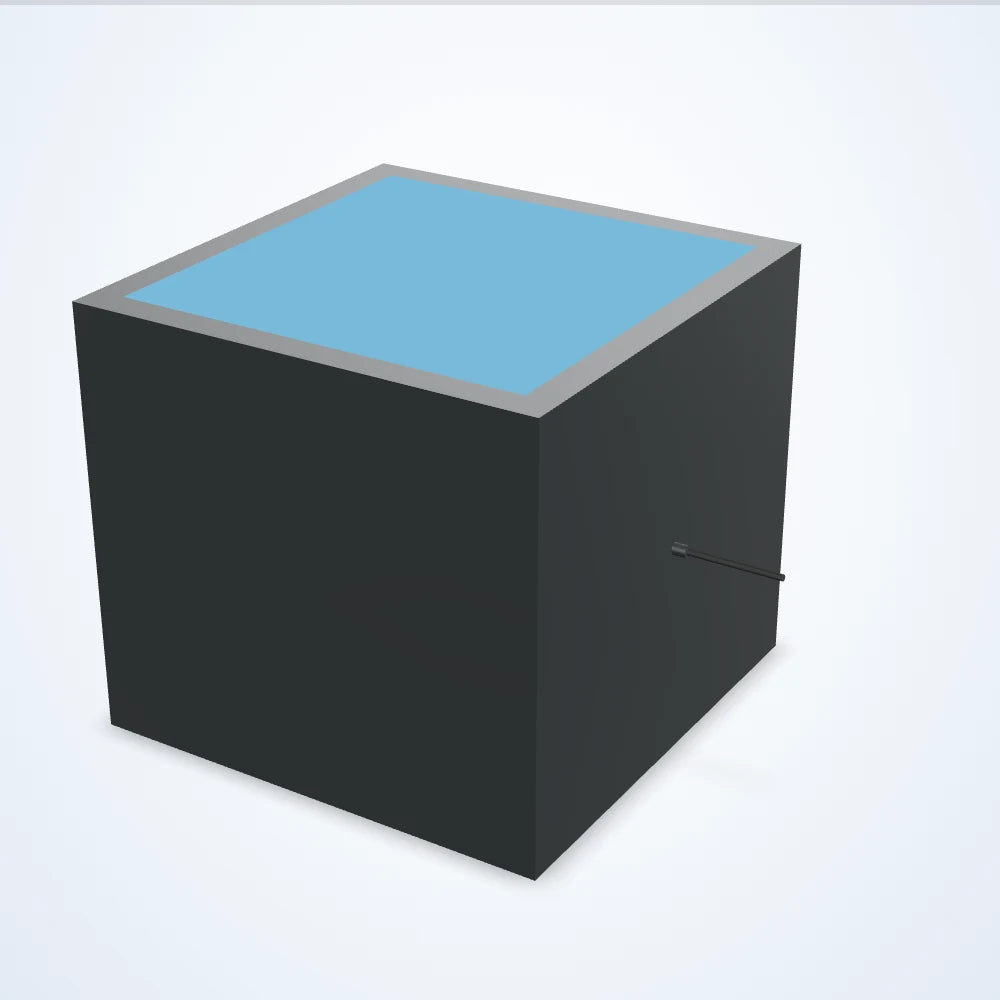

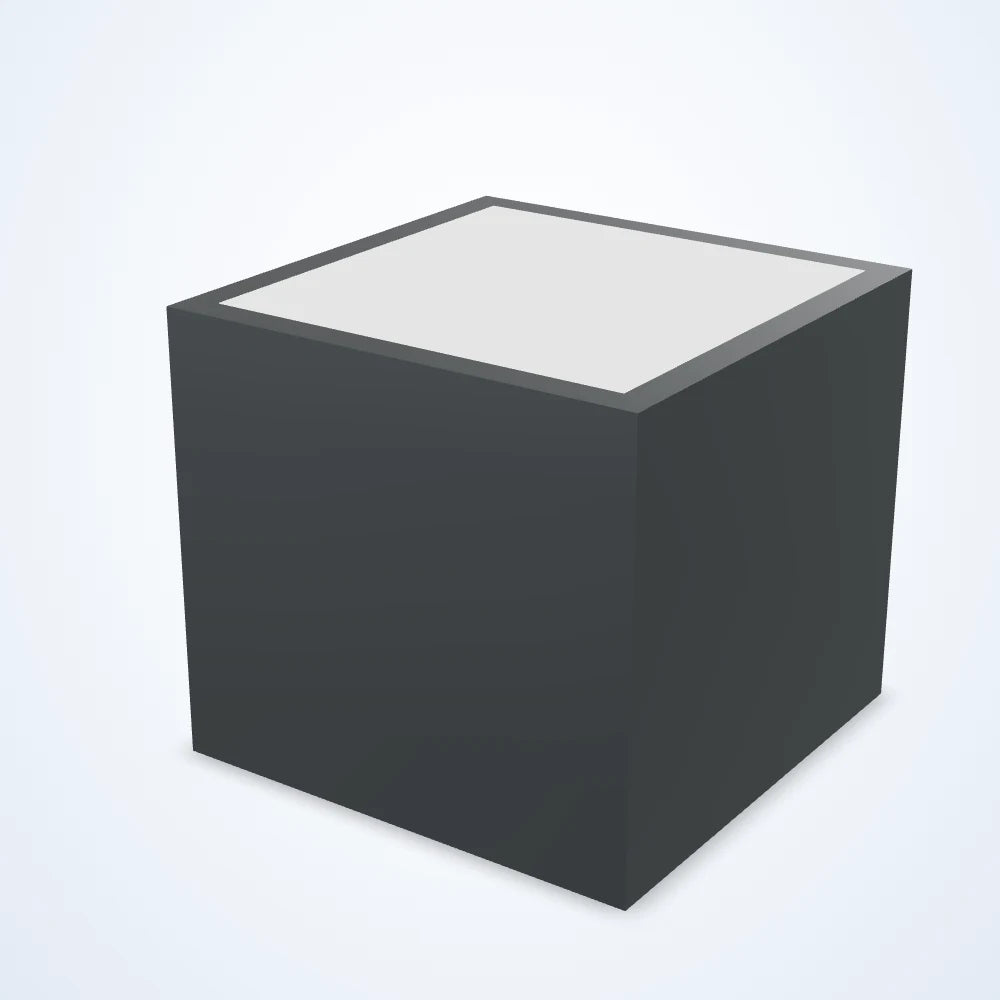

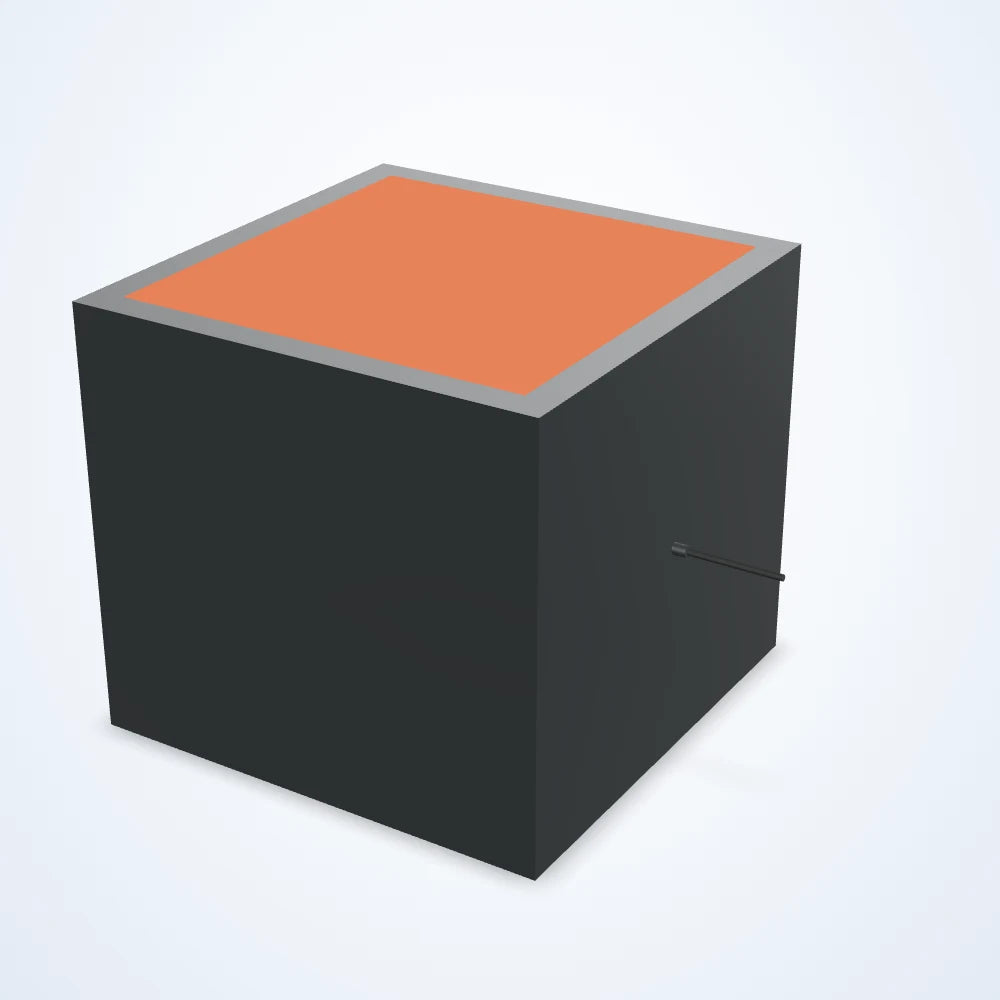

Backlight, 351.5 x 351.5 mm lit area (LS-BKL-0144-L13)
Model LS-BKL-0144-L13
- ColourWhite, Infrared, Red, Green, Blue
- Voltage24 VDC
- TypeStandard
- Wavelength730 nm, 850 nm, 940 nm
from $1,909.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 22 available
Configuration LS-BKL-0144-496 $1,909.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 351.5 x 351.5 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (22 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0144-L13 |
|---|---|
| Connection at light | Hardwired |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum constant on current (mA) | 2435 / 4059 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 8000 (by configuration) |
| Maximum input power constant on (W) | 58.4 / 97.4 (by configuration) |
| Maximum input power overcurrent strobe (W) | 150 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 20 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |
Mechanical

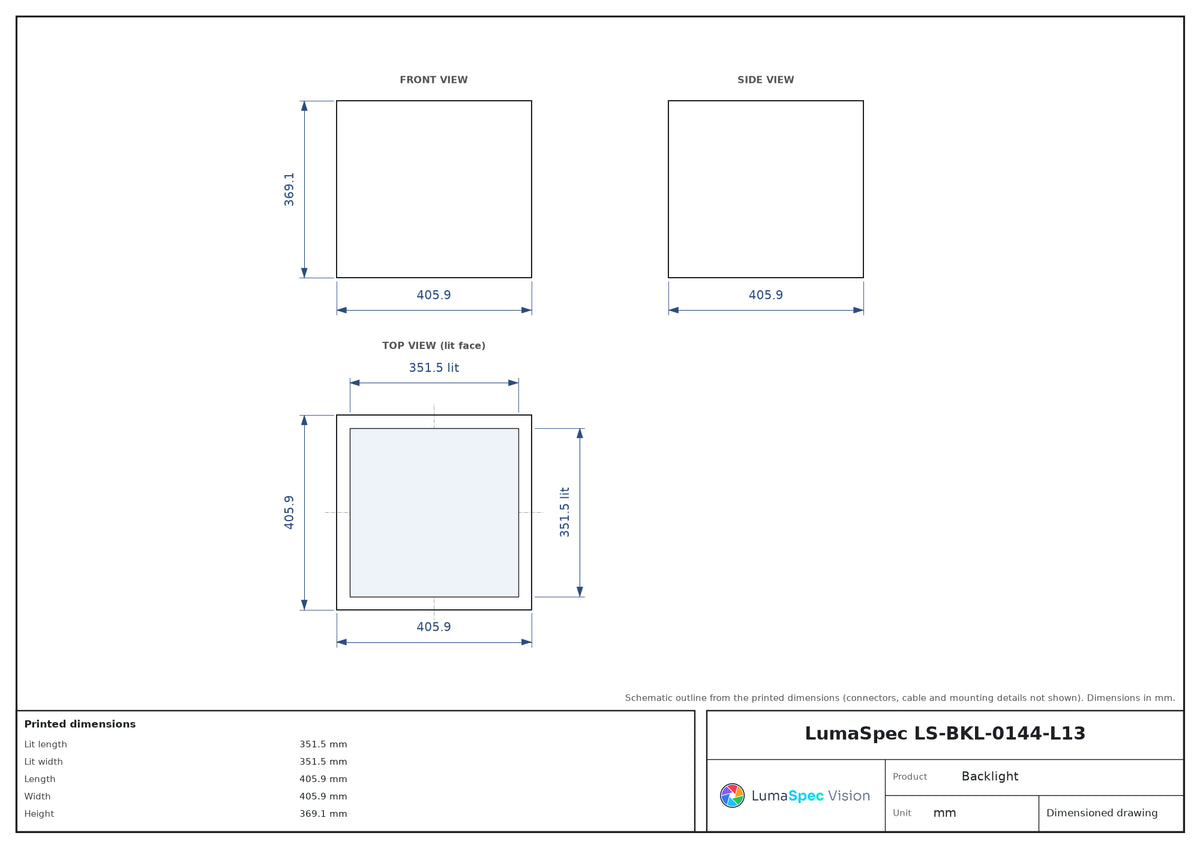

| Lit length (mm) | 351.5 |
|---|---|
| Lit width (mm) | 351.5 |
| Length (mm) | 405.9 |
| Width (mm) | 405.9 |
| Height (mm) | 369.1 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
Other models in the Backlight series, Flying Leads, IP50 (S09) series
See all 23 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0144-L1 | 51.5 x 51.5 mm | $589.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L2 | 76.5 x 76.5 mm | $679.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L3 | 101.5 x 101.5 mm | $779.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L4 | 126.5 x 126.5 mm | $879.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L5 | 151.5 x 151.5 mm | $989.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L6 | 176.5 x 176.5 mm | $1,089.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L7 | 201.5 x 201.5 mm | $1,199.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L8 | 226.5 x 226.5 mm | $1,309.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L9 | 251.5 x 251.5 mm | $1,429.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L10 | 276.5 x 276.5 mm | $1,549.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L11 | 301.5 x 301.5 mm | $1,659.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L12 | 326.5 x 326.5 mm | $1,789.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L14 | 376.5 x 376.5 mm | $2,039.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L15 | 401.5 x 401.5 mm | $2,169.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L16 | 426.5 x 426.5 mm | $2,299.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L17 | 451.5 x 451.5 mm | $2,439.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L18 | 476.5 x 476.5 mm | $2,579.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L19 | 501.5 x 501.5 mm | $2,719.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L20 | 526.5 x 526.5 mm | $2,829.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L21 | 551.5 x 551.5 mm | $2,949.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L22 | 576.5 x 576.5 mm | $3,059.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0144-L23 | 601.5 x 601.5 mm | $3,169.00 Quote | Built to order: ships in about 4-5 weeks | View |
