Backlights

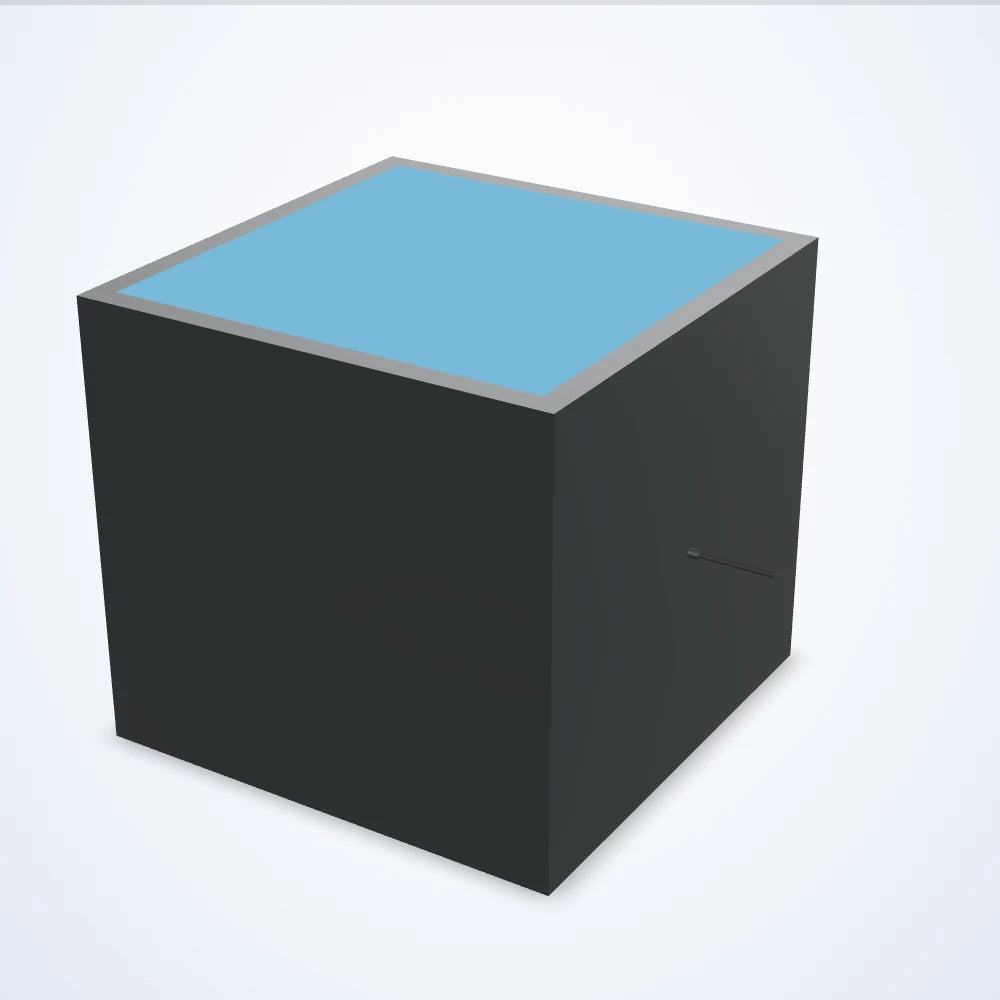

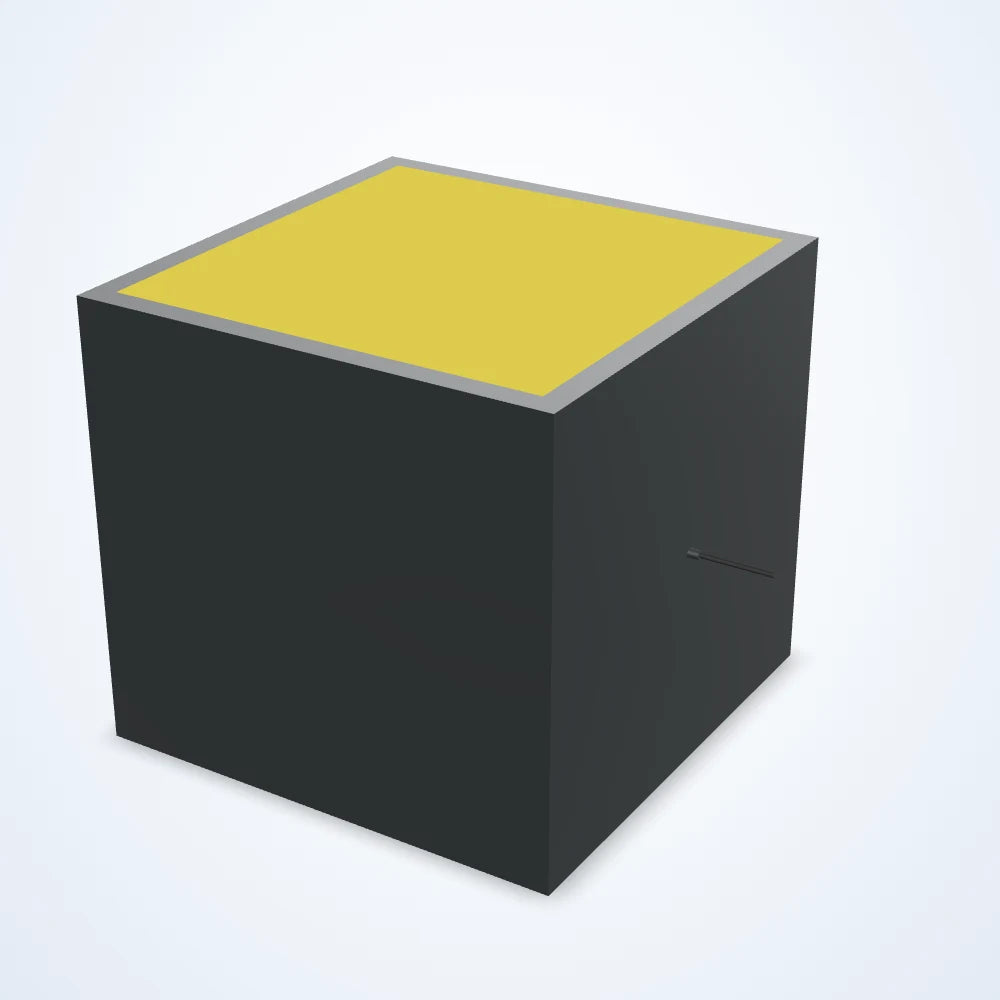

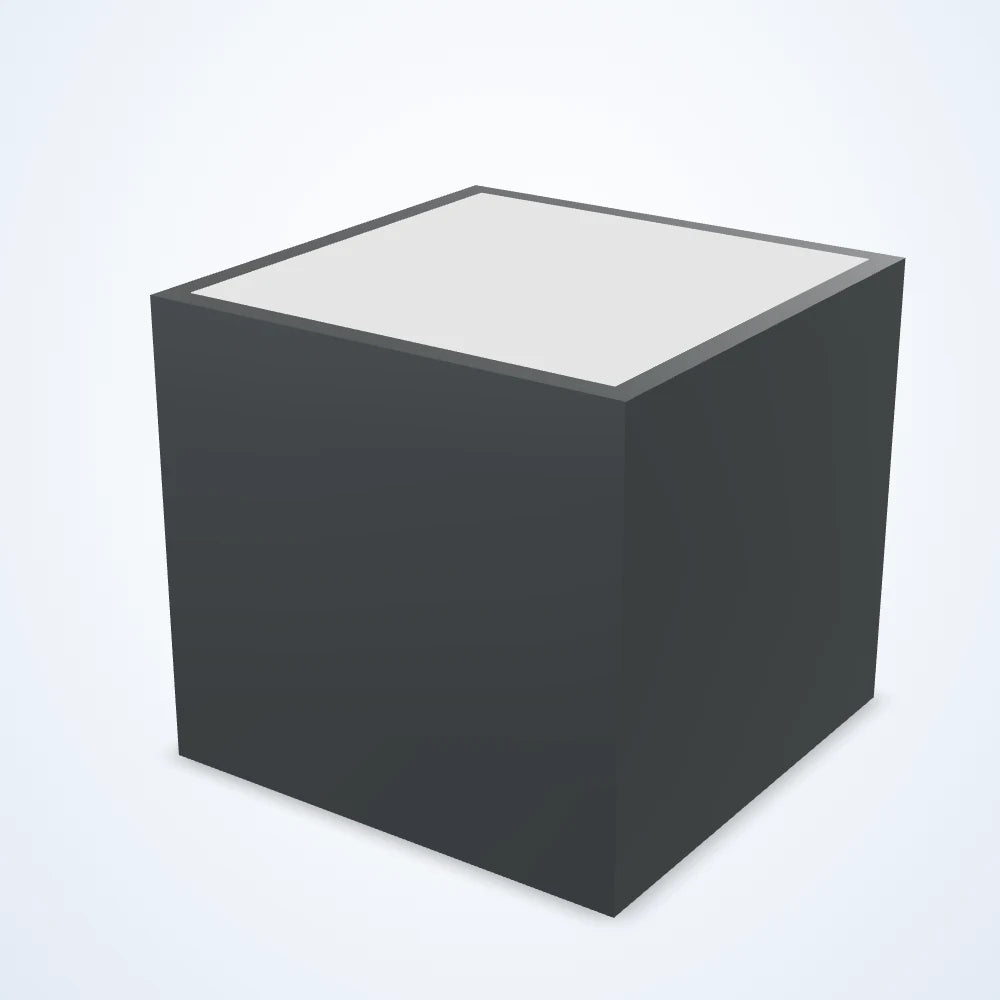

Backlight, 476.5 x 476.5 mm lit area (LS-BKL-0144-L18)
Model LS-BKL-0144-L18
- ColourWhite, Infrared, Red, Green, Blue
- Voltage24 VDC
- TypeStandard
- Wavelength730 nm, 850 nm, 940 nm
from $2,579.00 USDList price
Sold by quote: request a quote and we confirm the price, lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 22 available
Dashed or marked values are not made with your other choices: picking one switches them to the nearest available configuration.
Configuration LS-BKL-0144-606 $2,579.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 476.5 x 476.5 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (22 configurations) and request a quote.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Certifications (as printed)CEIEC 62471RoHS
Specifications
General
| Model | LS-BKL-0144-L18 |
|---|---|
| Connection at light | Hardwired |
| Maximum duty cycle (%) | 100 |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | 0 to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS
As declared by the manufacturer |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum constant on current (mA) | 2123 / 3185 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 8000 (by configuration) |
| Maximum input power constant on (W) | 51 / 76.4 (by configuration) |
| Maximum input power overcurrent strobe (W) | 150 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 20 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |
Mechanical
| Lit length (mm) | 476.5 |
|---|---|
| Lit width (mm) | 476.5 |
| Length (mm) | 530.9 |
| Width (mm) | 530.9 |
| Height (mm) | 494.1 |
| Housing | Aluminum |
| Mounting | Through Holes |
Engineering data
Drive and fit the LS-BKL-0144-L18
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Supply24 V DC
Emitting area476.5 × 476.5 mmKeep the camera's field of view inside it for an even background.
Ingress protectionIP50
Operating temperature0 to 60 °C
Cable length2000 mm
Mounting and installation
| Mounting | Through holes |
|---|---|
| Cable | 2 m, Flying leads |
| Protection | IP50 |
| Housing | Aluminum |

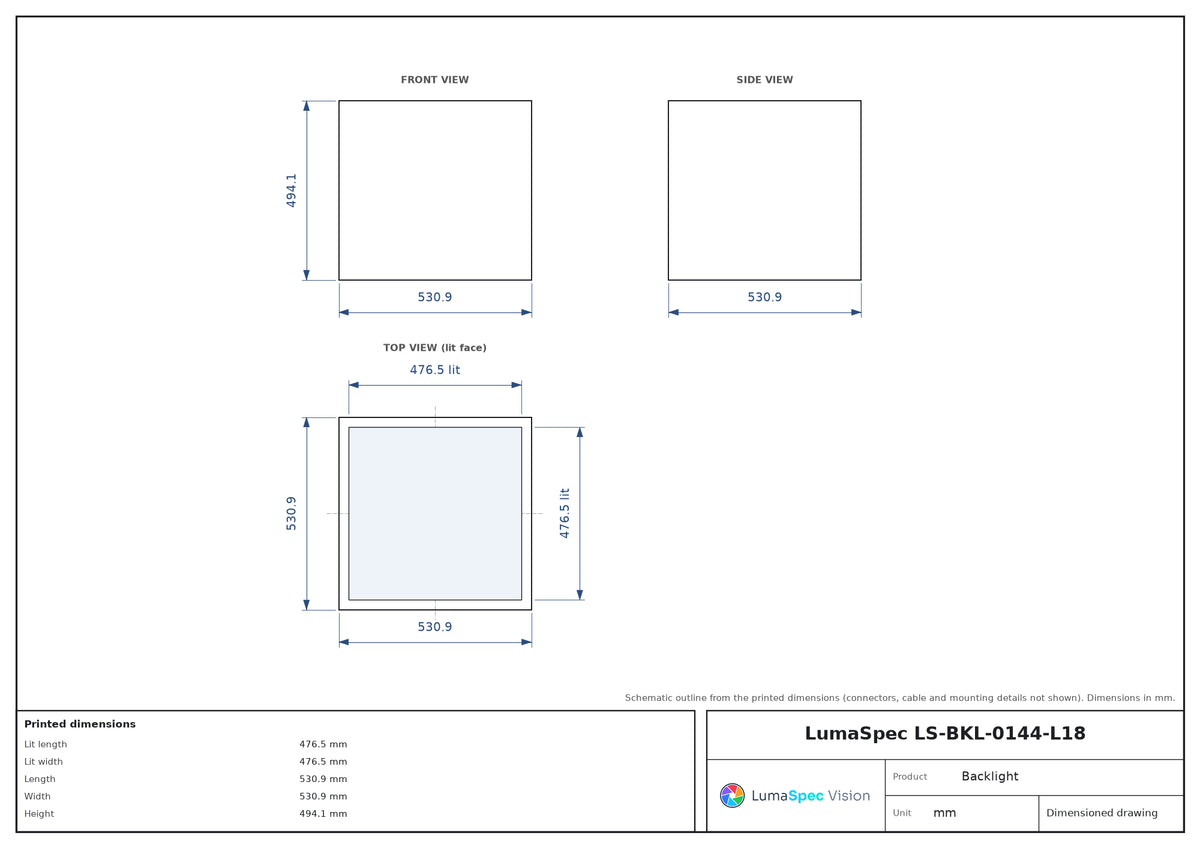

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: supply voltage, drive type and the light's power against the controller's power per channel.
Controllers for this light
Same 24 V supply
Analog constant-voltage light controller, 200 W, 2 channels, 12M-2B interface
LS-CTL-0121
- Output 24 VDC
- Input 100 ~ 240 VAC, 50/60 Hz
$189.00
Ships in 2-3 weeks
About 144 W per channel at 24 V (from its rated output) for this 76.4 W light
200 W per channel at 24 V for this 76.4 W light
100 W per channel at 24 V for this 76.4 W light
Programmable light controller, 1 channel, 24 VDC constant-voltage output, 300 W, GigE port
LS-CTL-0564
- Output 24 VDC
- Input 100 ~ 240 VAC, 50/60 Hz
$199.00
Ships in 2-3 weeks
300 W per channel at 24 V for this 76.4 W light
Single channel analog LED light controller, 1 ch
LS-CTL-0547
- Channels 1
- Output 24 V
$199.00
Ships in 2-3 weeks
Same 24 V supply
