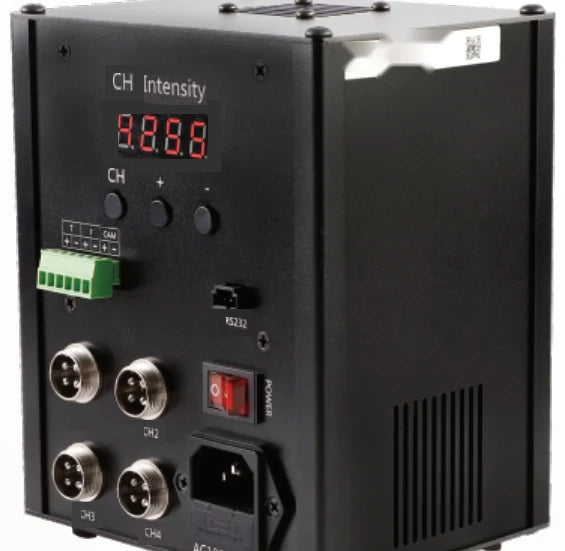

Alternate strobe controller, 4 ch, 200 W (LS-CTL-0034)

Model LS-CTL-0034

Channels4
Output24V
InputAC 100-240V
Total output200W
ControlRS232 serial port

$329.00

Ships in 2-3 weeks

1.1 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Alternate strobe controller for line scan lights: channels light up alternately, each channel lighting time 10-68us adjustable, fast shooting speed (theoretical 80K), RS232 control.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0034
Working mode	alternate trigger mode
Lighting time	10-68us
Lighting time delay	<2.5us

Interfaces and I/O

Communication	RS232 serial port

Light

Luminance control method	manual adjust by button, PC remote adjustment
Luminance control mode	constant voltage (luminance cannot be adjusted, only lighting time)

Electrical

Input voltage	AC 100-240V
Input frequency	50/60Hz
Output voltage	24V
Baud rate	19200bps
Trigger signal	rising edge trigger
Channels	4
One way max. output power	200W
Total output power	200W
External trigger support	Y
External trigger voltage	5-24V rising edge

Mechanical

Shipping weight	1.10 kg

Other models in the Alternate strobe controller (LS-CTL-S05) series

See the category

Model	Size / key data	Price	Availability	Link
LS-CTL-0033	2 ch, 200 W	$279.00	Ships in 2-3 weeks	View
