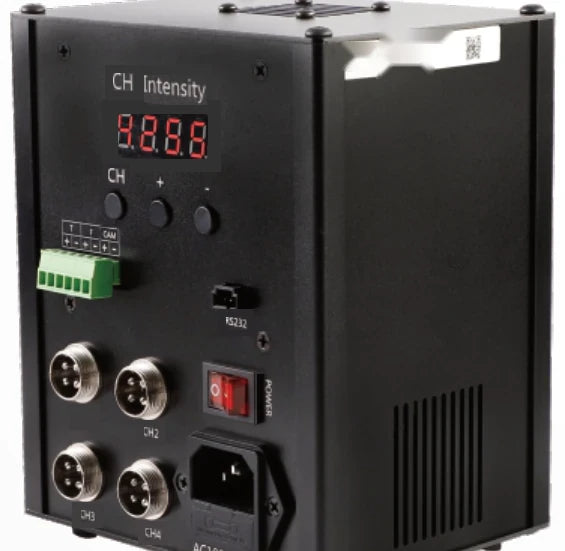

Representative photo of this series
Light controllers
Alternate strobe controller, 2 ch, 200 W (LS-CTL-0033)
Model LS-CTL-0033
- Channels2
- Output24V
- InputAC 100-240V
- Total output200W
- ControlRS232 serial port
$279.00
Ships in 2-3 weeks
1.1 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Alternate strobe controller for line scan lights: channels light up alternately, each channel lighting time 10-68us adjustable, fast shooting speed (theoretical 80K), RS232 control.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0033 |
|---|---|
| Working mode | alternate trigger mode |
| Lighting time | 10-68us |
| Lighting time delay | <2.5us |
Interfaces and I/O
| Communication | RS232 serial port |
|---|
Light
| Luminance control method | manual adjust by button, PC remote adjustment |
|---|---|
| Luminance control mode | constant voltage (luminance cannot be adjusted, only lighting time) |
Electrical
| Input voltage | AC 100-240V |
|---|---|
| Input frequency | 50/60Hz |
| Output voltage | 24V |
| Baud rate | 19200bps |
| Trigger signal | rising edge trigger |
| Channels | 2 |
| One way max. output power | 200W |
| Total output power | 200W |
| External trigger support | Y |
| External trigger voltage | 5-24V rising edge |
Mechanical
| Shipping weight | 1.10 kg |
|---|
Other models in the Alternate strobe controller (LS-CTL-S05) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0034 | 4 ch, 200 W | $329.00 | Ships in 2-3 weeks | View |
