Light controllers

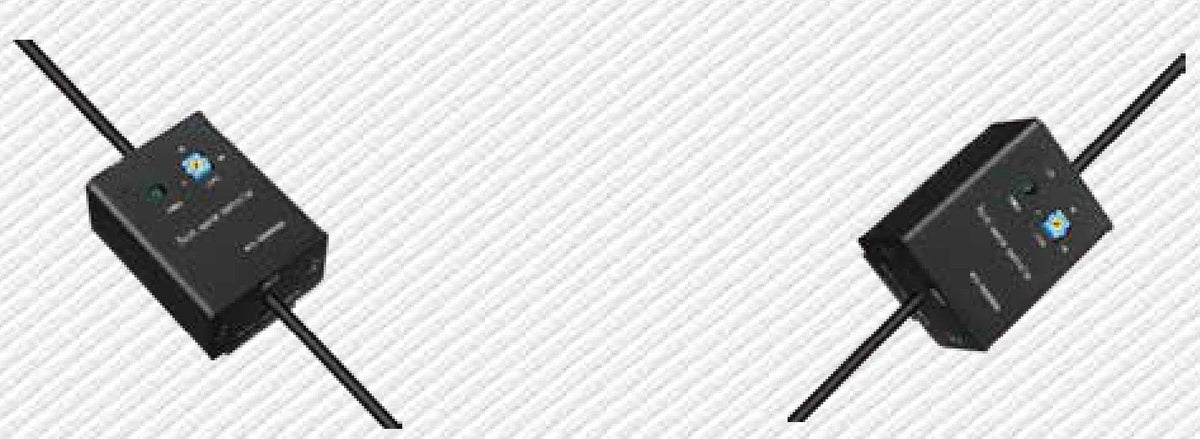

Single channel analog LED light controller, 1 ch (LS-CTL-0547)
Model LS-CTL-0547
- Channels1
- Output24V
- ControlAnalog potentiometer (0~100)
- TriggerSync with external trigger pulse
$199.00
Ships in 2-3 weeks
0.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Constant current single channel analog controller for high precision and intensity control of machine vision LED lights; external trigger pulse sync mode and ON mode; precision potentiometer allows high precision intensity adjustment.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0547 |
|---|---|
| Intensity adjustment | Potentiometer, 0~100 [0 is off, 100 is max] |
| Control | Analog potentiometer (0~100) |
Environment and compliance
| Operating environment | Temperature 0~40°C / Humidity 25%~85% |
|---|
Electrical
| Power supply | DC24V |
|---|---|
| Max. output current of each channel | 0~5mA/5V |
| Max. output voltage of each channel | 24V |
| Channels | 1 |
| External trigger mode | Sync with external trigger pulse |
| External trigger voltage | 5~24V |
Mechanical

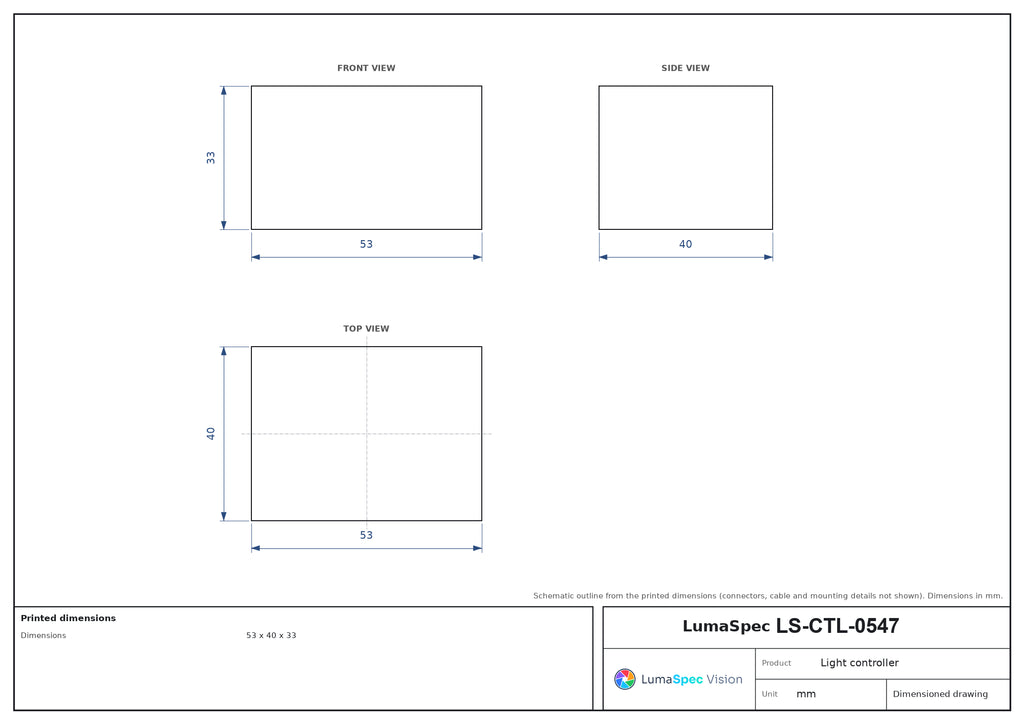

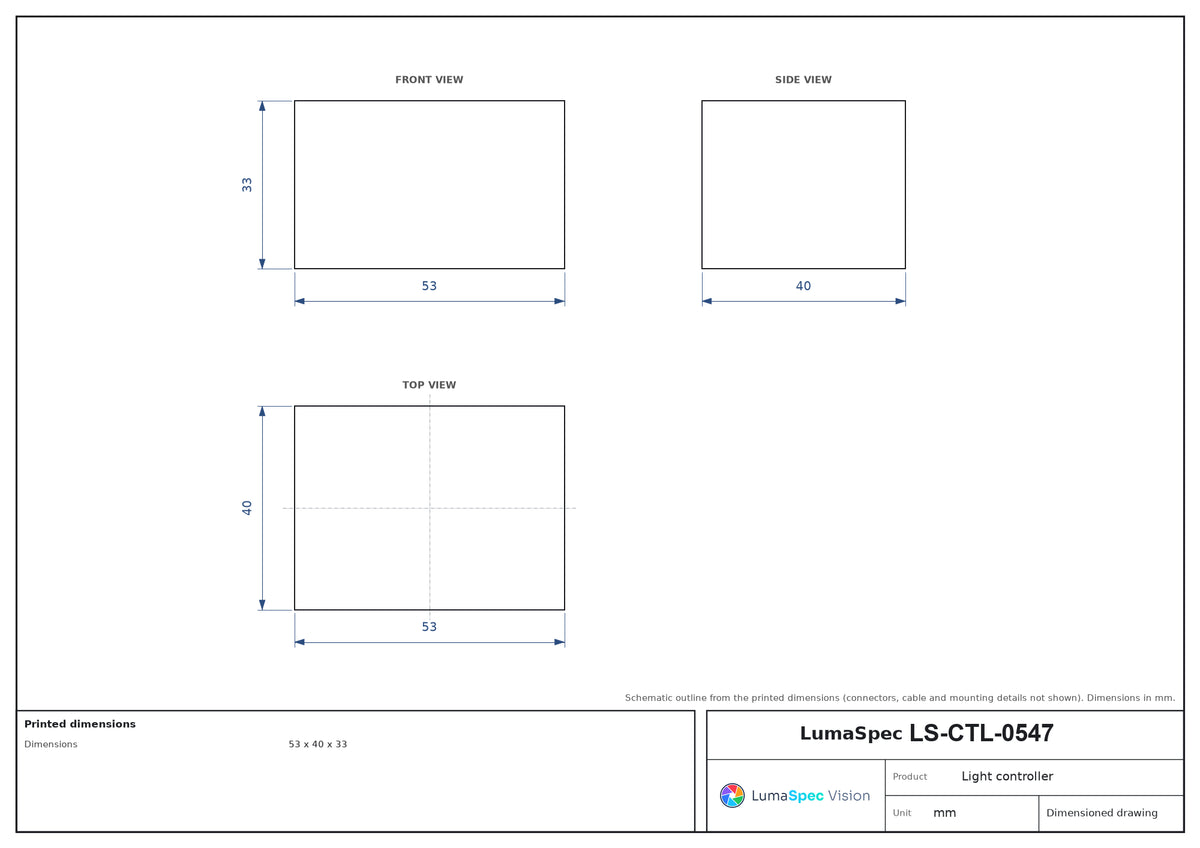

| Dimensions (mm) | 53 x 40 x 33 |
|---|---|
| Installation mode | DIN |
| Weight | 200g |
Other models in the Single channel analog LED light controller (LS-CTL-S110) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0548 | 1 ch | $199.00 | Ships in 2-3 weeks | View |
