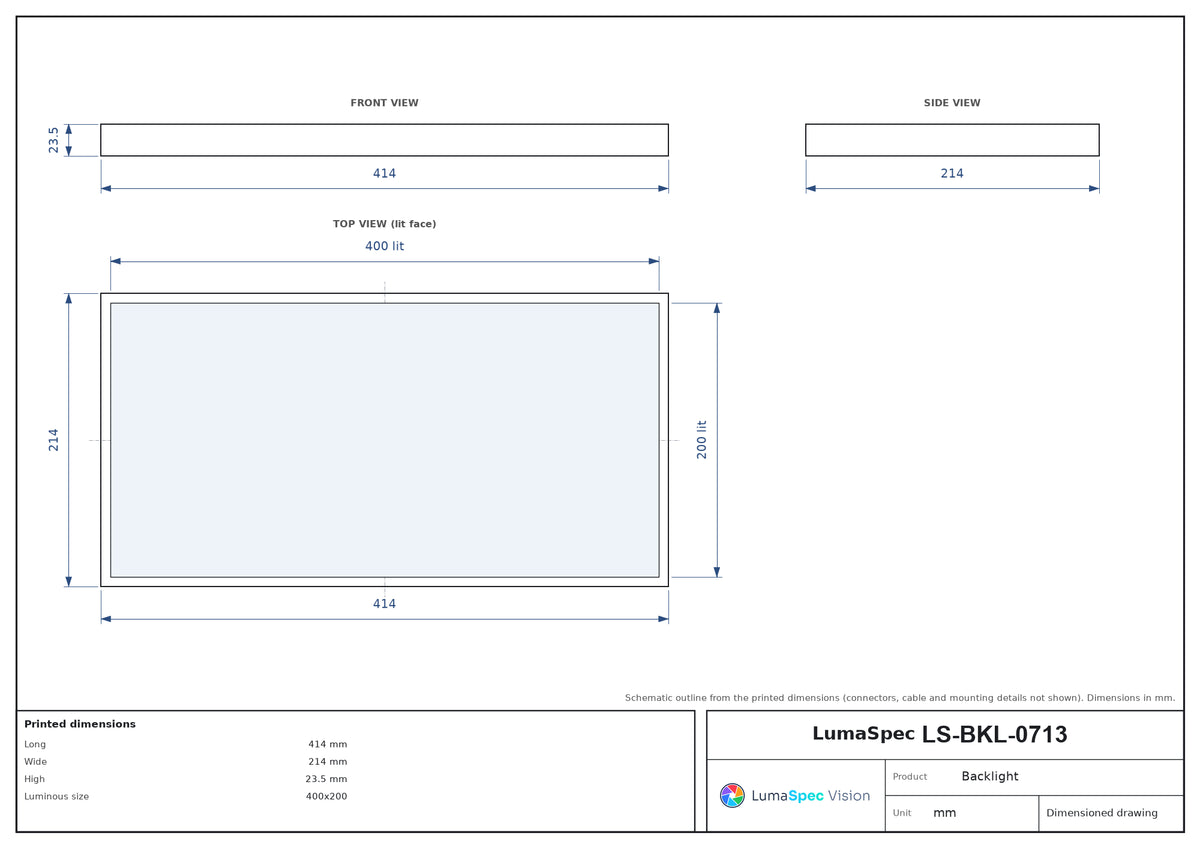

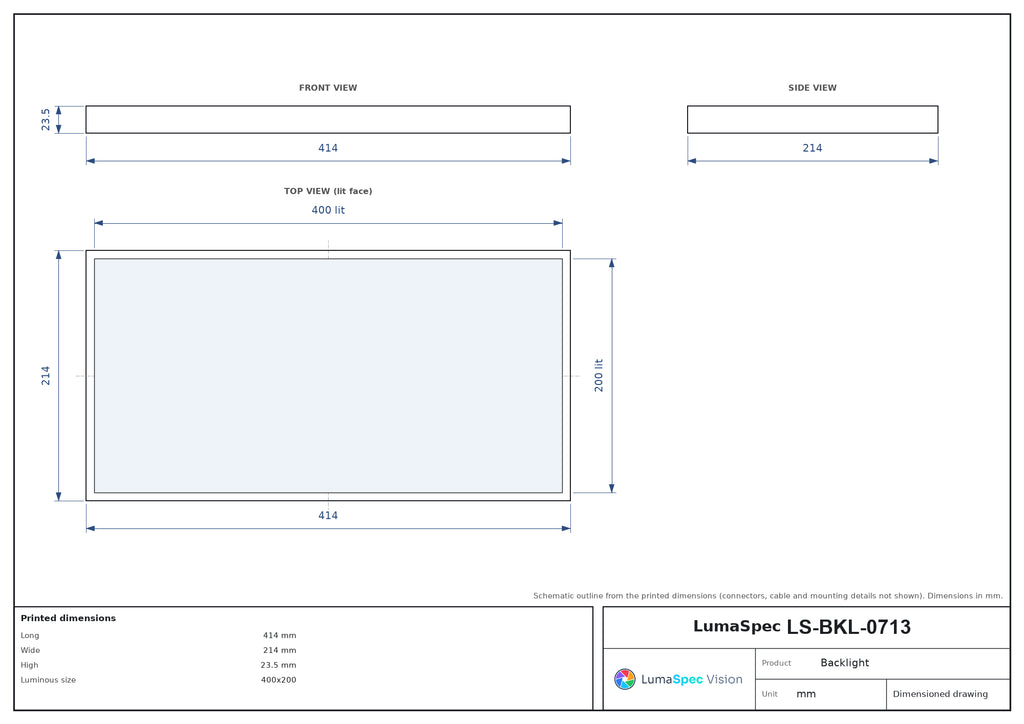

  • LS-BKL-0713 dimensions (mm)

Representative photo of this series

Backlights

400 x 200 mm Collimated backlight (LS-BKL-0713)

Model LS-BKL-0713

  • ColourRed, Blue, White
  • Voltage24 V
  • TypeCollimated
  • LED typeSMD
$879.00

Ships in 2-3 weeks

2.25 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

400 x 200 mm Collimated backlight (LS-BKL-0713)LS-BKL-0713

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Collimated backlight consists of uniformly distributed LED light-emitting units. Support customized color, wavelength, luminous size, etc.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0713
Working lifewhite: 30000 hours, red: 30000 hours (the value varies according to the use environment)
Quality serviceone year product warranty, technical support
Long (mm)414
Wide (mm)214
High (mm)23.5
RemarksLarge size

Light

LED typeSMD
Luminous size (mm)400x200
Wavelength red620-630 nm
Wavelength blue460-470 nm
Colour temperature white6000-7500 K

Environment and compliance

Operating environment (indoor)temperature 0~40 °C, humidity 20~85% (non condensing)

Electrical

Power toleranceactual product power within ±10% of the table is the normal range
Voltage (V)24
Power red (W)38.9
Power blue/white (W)44.9

Mechanical

Installation methodM3 nut slot (four-sided M3 nut grooves) and bottom side installation
Wire length500 mm (drawing)
Shipping weight2.25 kg
