60 x 60 mm Collimated backlight (LS-BKL-0699)

Model LS-BKL-0699

ColourRed, Blue, White
Voltage24 V
TypeCollimated
LED typeSMD

$219.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.3 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Collimated backlight consists of uniformly distributed LED light-emitting units. Support customized color, wavelength, luminous size, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-0699
Working life	white: 30000 hours, red: 30000 hours (the value varies according to the use environment)
Quality service	one year product warranty, technical support
Long (mm)	74
Wide (mm)	74
High (mm)	22.5
Remarks	The luminous size can be multiplied individually: 10050, 12060, 14070, 16080, 200100, 240120

Light

LED type	SMD
Luminous size (mm)	60x60
Wavelength red	620-630 nm
Wavelength blue	460-470 nm
Colour temperature white	6000-7500 K

Environment and compliance

Operating environment (indoor)	temperature 0~40 °C, humidity 20~85% (non condensing)

Electrical

Power tolerance	actual product power within ±10% of the table is the normal range
Voltage (V)	24
Power red (W)	4.3
Power blue/white (W)	3.6

Mechanical

Installation method	M3 nut slot (four-sided M3 nut grooves) and bottom side installation

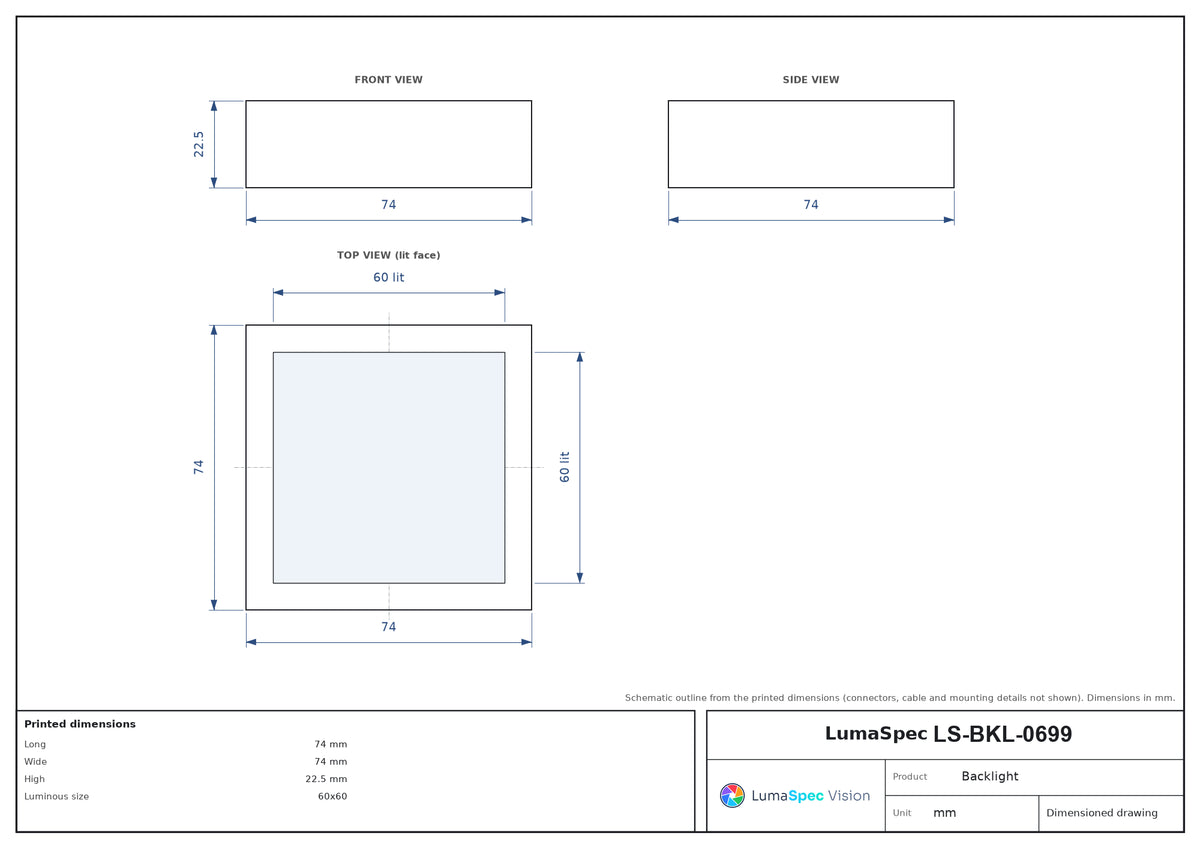

Wire length	500 mm (drawing)
Shipping weight	0.30 kg

Downloads

Datasheet (PDF)LS-BKL-0699 · 545 KB

Features

Collimated (parallel) backlight for sharp edges in measurement
Four-sided M3 nut grooves and bottom side installation
Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
Luminous size can be made individually: 10050, 12060, 14070, 16080, 200100, 240120 (remark for the small sizes)
Luminous size: 50mm*50mm.
Brightness level 255, connected to the controller can be adjusted.
Life span:30000 hours for red light and 30000 hours for white light.
Suitable for high-precision detection such as contour detection, Edge breakage detection and Liquid height detection, etc.

Applications

Metal cylinder profile measurement
Glass bottle diameter measurement
Large-area circuit board component detection and identification
Dimension measurement of metal parts
Wafer surface defect detection

Complete the station
