Backlights

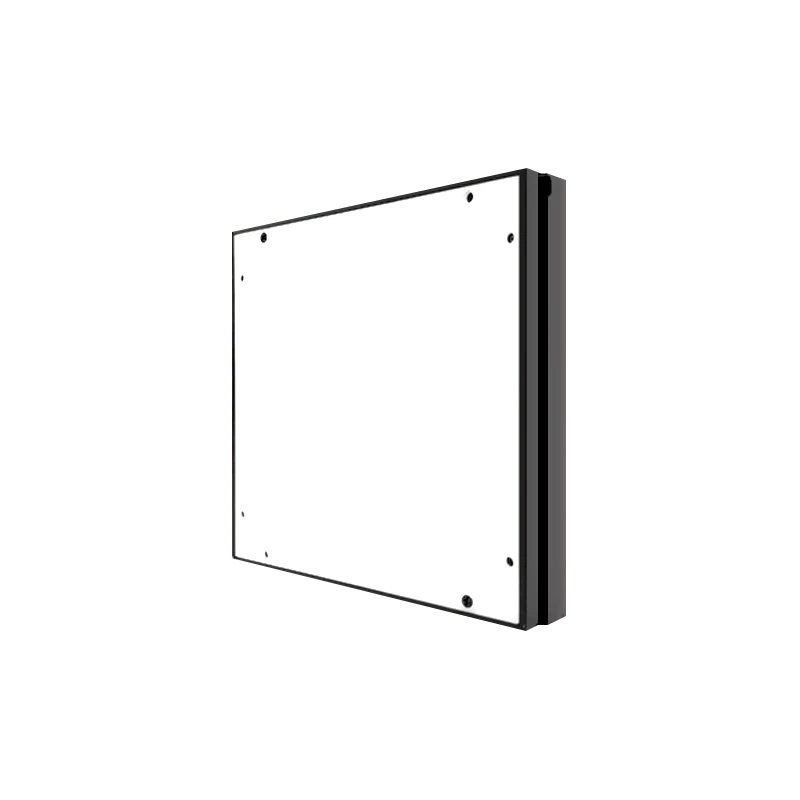

400 x 400 mm Collimated backlight, 414 x 414 x 23.5 mm (LS-BKL-0715)
Model LS-BKL-0715
- ColourRed, Blue, White
- Voltage24 V
- TypeCollimated
- Connector3-pin flat
$1,049.00
In stock - ships the same business day (3 available, order by 2 PM ET)
4.05 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Collimated backlight consists of uniformly distributed LED light-emitting units. Support customized color, wavelength, luminous size, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0715 |
|---|---|
| M3 nut slot | √ |
| Category | Collimated backlight |
| Terminal Plug | Flat head 3PIN2 pin |
| Cooling | Natural air cooling |
| Electrical insulation capacity | DC500V Insulation resistance>20 megohms |
| Pressure Resistance Requirements | AC1000 V10mA/5S |
| Flammability Rating | IEC60707 |
| Value-added Services | One year free technical support |

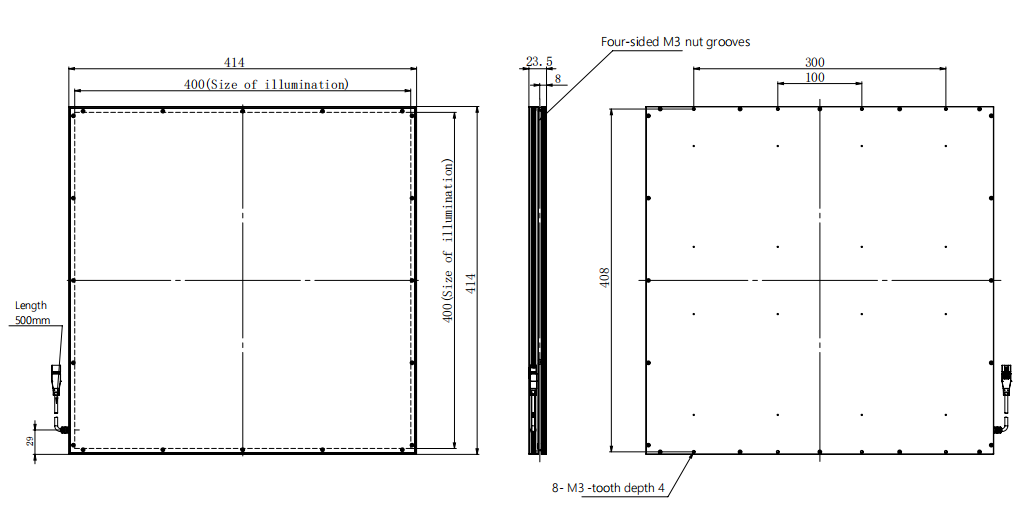

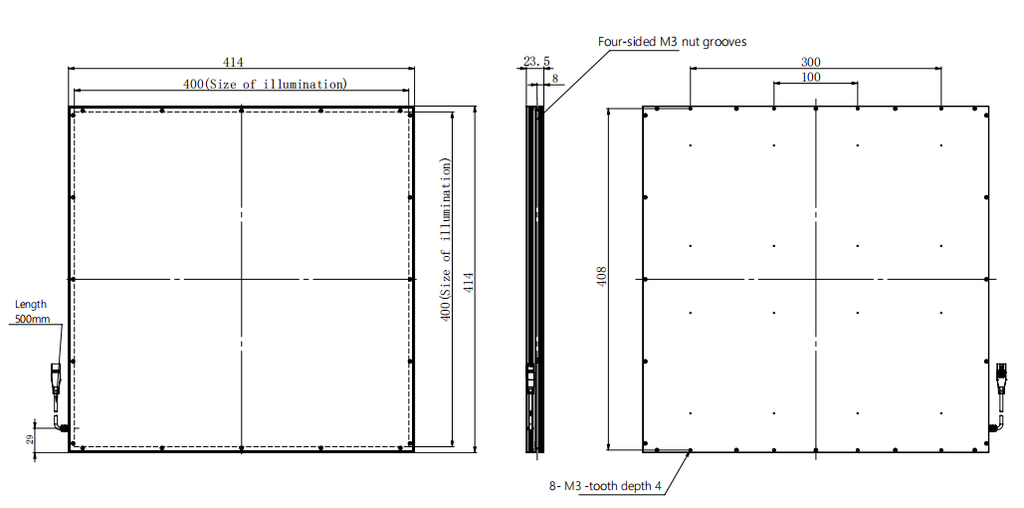

| Long (mm) | 414 |
| Wide (mm) | 414 |
| High (mm) | 23.5 |
| Remarks | Large size |
Interfaces and I/O
| Luminous size expansion | Large size |
|---|---|
| Cable length | 0.5m |
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. |
| Mating cable (optional) | 1.Light source extension cable 2.Connector adapter cable |
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 400x400 |
| Color | red/white/blue/green |
| Wavelength | red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm |
| Color temperature | red: —; white: 6000-6500K; blue: —; green: — |
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller |
Environment and compliance
| Operating Temperature and Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) |
|---|---|
| Lifespan | Under our specified conditions of use,30000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24 |
| Power red (W) | 77.8 |
| Power blue/white (W) | 89.9 |
Mechanical
| Installation method | M3 nut slot (four-sided M3 nut grooves) and bottom side installation |
|---|---|
| Bottom side installation | √ |
| Shell material | Aluminum Alloy (Oxidative blackened surface) |
| Shell Hardness Parameters | Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |
| Shipping weight | 4.05 kg |
Other models in the Collimated backlight (LS-BKL-S81) series
See all 18 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0698 | 50 x 50 mm | $209.00 | 6 in stock | View |
| LS-BKL-0699 | 60 x 60 mm | $219.00 | 12 in stock | View |
| LS-BKL-0700 | 70 x 70 mm | $229.00 | 14 in stock | View |
| LS-BKL-0701 | 80 x 80 mm | $249.00 | 9 in stock | View |
| LS-BKL-0702 | 90 x 90 mm | $259.00 | 7 in stock | View |
| LS-BKL-0703 | 100 x 100 mm | $279.00 | 11 in stock | View |
| LS-BKL-0704 | 120 x 120 mm | $309.00 | 12 in stock | View |
| LS-BKL-0705 | 150 x 150 mm | $389.00 | 9 in stock | View |
| LS-BKL-0706 | 200 x 150 mm | $459.00 | 12 in stock | View |
| LS-BKL-0708 | 250 x 125 mm | $469.00 | 8 in stock | View |
| LS-BKL-0707 | 200 x 200 mm | $549.00 | 10 in stock | View |
| LS-BKL-0710 | 300 x 150 mm | $599.00 | 13 in stock | View |
| LS-BKL-0711 | 300 x 200 mm | $719.00 | 10 in stock | View |
| LS-BKL-0709 | 250 x 250 mm | $739.00 | 8 in stock | View |
| LS-BKL-0713 | 400 x 200 mm | $879.00 | 8 in stock | View |
| LS-BKL-0712 | 300 x 300 mm | $959.00 | 13 in stock | View |
| LS-BKL-0714 | 400 x 300 mm | $1,189.00 | 9 in stock | View |
