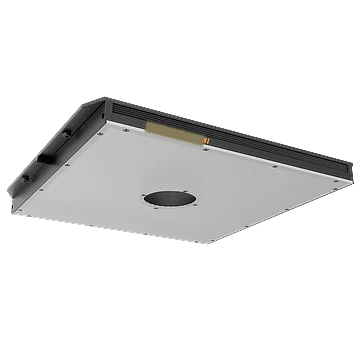

Flat Backlight with Center Hole, 450 x 320 mm, White (LS-BKL-1408)
  • Flat Backlight with Center Hole, 450 x 320 mm, White (LS-BKL-1408)

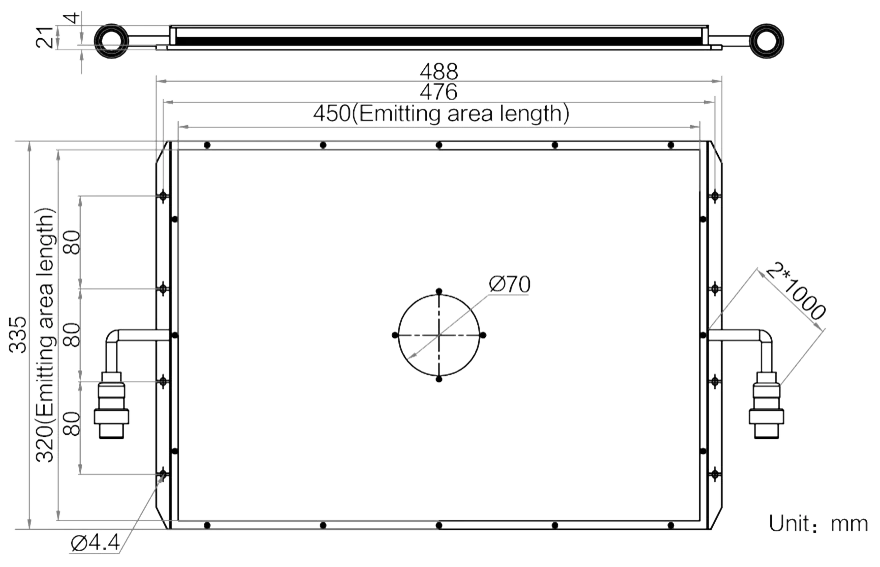

  • LS-BKL-1408 dimensions (mm)

Backlights

Flat Backlight with Center Hole, 450 x 320 mm, White (LS-BKL-1408)

Model LS-BKL-1408

  • ColourWhite
  • Emitting area450 mm × 320 mm
  • Size488 mm × 335 mm × 21 mm
  • Voltage24 VDC
  • Power198 W
$1,379.00
Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

4.58 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Flat Backlight with Center Hole, 450 x 320 mm, White (LS-BKL-1408)LS-BKL-1408

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Flat Backlight with Center Hole, 450 x 320 mm, White. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1408
Cooling modeNatural cooling

Interfaces and I/O

Connector typeDual-channel 19M-2A
Cable length1 m

Light

ColorWhite
Center illuminance/irradiance≥ 16000 lux@600 mm
Color temperature6000 ~ 7000K
Emitting area dimension450 mm × 320 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power198 W
Input voltage24 VDC

Mechanical

Dimension488 mm × 335 mm × 21 mm
Bore dimensionΦ70 mm
Weight3.2 kg
Shipping weight (estimated)4.58 kg
