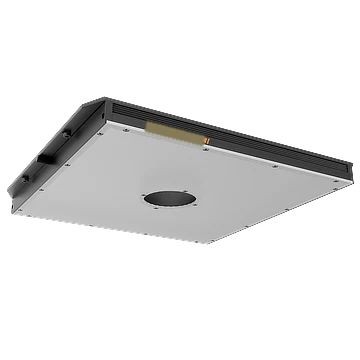

Flat Backlight with Center Hole, 250 x 250 mm, IR 940 nm (LS-BKL-1390)
  • Flat Backlight with Center Hole, 250 x 250 mm, IR 940 nm (LS-BKL-1390)
  • LS-BKL-1390 dimensions (mm)

Backlights

Flat Backlight with Center Hole, 250 x 250 mm, IR 940 nm (LS-BKL-1390)

Model LS-BKL-1390

  • ColourInfrared
  • Emitting area250 mm × 250 mm
  • Size282 mm × 263 mm × 19 mm
  • Voltage24 VDC
  • Power52 W
  • Wavelength940 nm
$739.00
Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

1.64 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Flat Backlight with Center Hole, 250 x 250 mm, IR 940 nm (LS-BKL-1390)LS-BKL-1390

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Flat Backlight with Center Hole, 250 x 250 mm, IR 940 nm. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1390
Cooling modeNatural cooling

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorInfrared
Wavelength940 nm
Center illuminance/irradiance≥ 5000 uW/cm2@200 mm
Emitting area dimension250 mm × 250 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power52 W
Input voltage24 VDC

Mechanical

Dimension282 mm × 263 mm × 19 mm
Bore dimensionΦ50 mm
Weight1.1 kg
Shipping weight (estimated)1.64 kg
