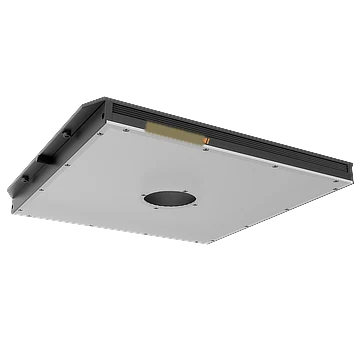

Flat Backlight with Center Hole, 250 x 200 mm, White (LS-BKL-1388)
  • Flat Backlight with Center Hole, 250 x 200 mm, White (LS-BKL-1388)

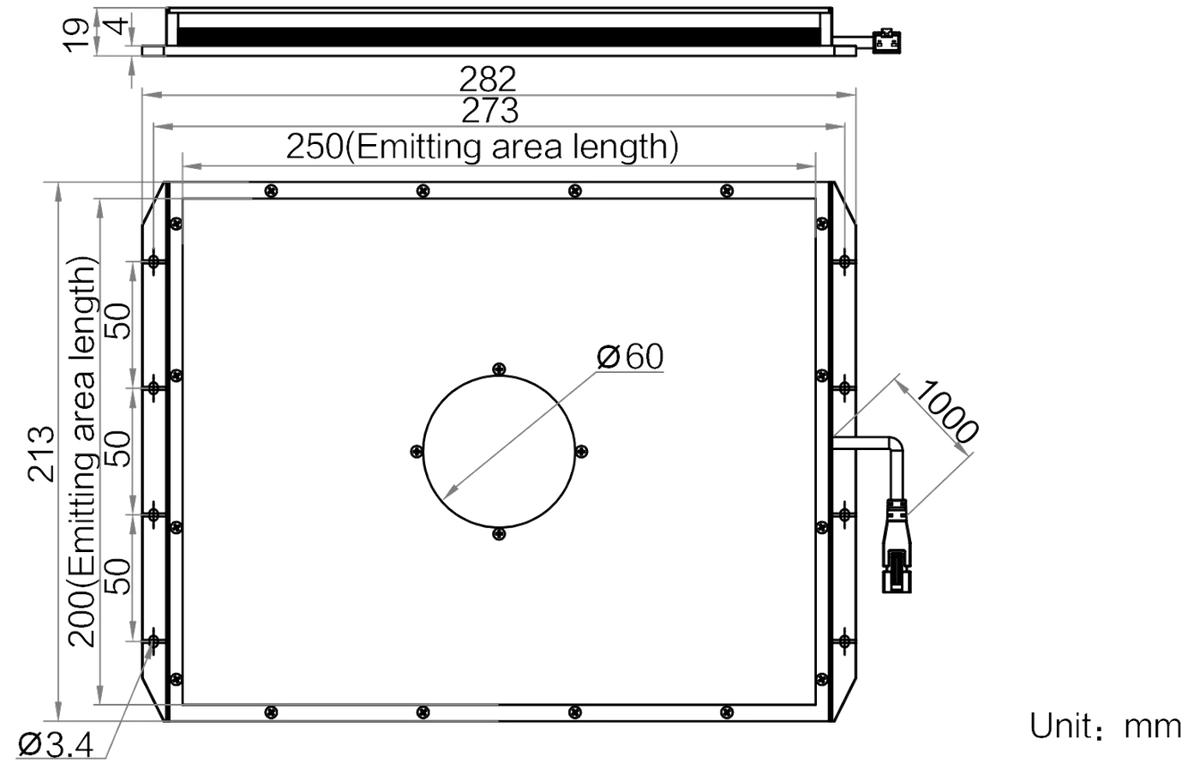

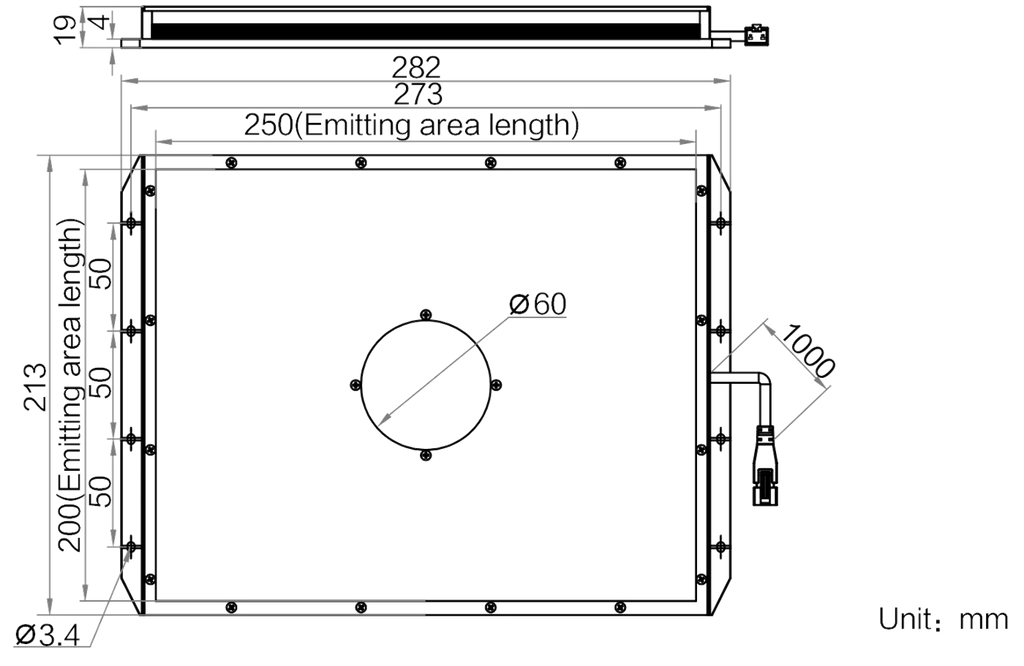

  • LS-BKL-1388 dimensions (mm)

Backlights

Flat Backlight with Center Hole, 250 x 200 mm, White (LS-BKL-1388)

Model LS-BKL-1388

  • ColourWhite
  • Emitting area250 mm × 200 mm
  • Size282 mm × 213 mm × 19 mm
  • Voltage24 VDC
  • Power58.6 W
$639.00

Ships in 2-3 weeks

1.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Flat Backlight with Center Hole, 250 x 200 mm, White (LS-BKL-1388)LS-BKL-1388

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Flat Backlight with Center Hole, 250 x 200 mm, White. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1388

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorWhite
Center illuminance/irradiance≥ 25000 lux@200 mm
Color temperature6000 ~ 7000K
Emitting area dimension250 mm × 200 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power58.6 W
Input voltage24 VDC

Mechanical

Dimension282 mm × 213 mm × 19 mm
Bore dimensionØ 60 mm
Weight1 kg
Shipping weight (estimated)1.50 kg
