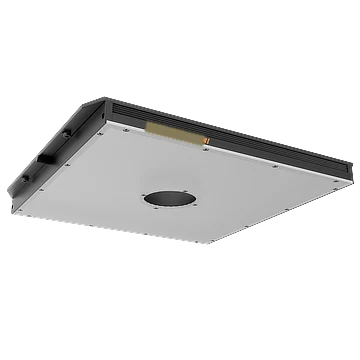

Flat Backlight with Center Hole, 200 x 200 mm, Blue (LS-BKL-1377)
Model LS-BKL-1377
- ColourBlue
- Emitting area200 mm × 200 mm
- Size232 mm × 213 mm × 18 mm
- Voltage24 VDC
- Power41.4 W
- Wavelength470 nm
$549.00
Ships in 2-3 weeks
1.22 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Flat Backlight with Center Hole, 200 x 200 mm, Blue. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1377 |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 1 m |
Light
| Color | Blue |
|---|---|
| Center illuminance/irradiance | ≥ 5400 lux@200 mm |
| Wavelength | 470 nm |
| Emitting area dimension | 200 mm × 200 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
Electrical
| Power | 41.4 W |
|---|---|
| Input voltage | 24 VDC |
Mechanical
| Dimension | 232 mm × 213 mm × 18 mm |
|---|---|
| Bore dimension | Ø 45 mm |
| Weight | 0.8 kg |
| Shipping weight (estimated) | 1.22 kg |
