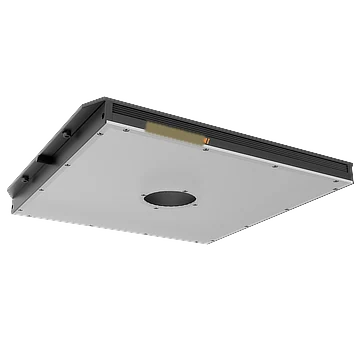

Flat Backlight with Center Hole, 250 x 150 mm, White (LS-BKL-1384)
Model LS-BKL-1384
- ColourWhite
- Emitting area250 mm × 150 mm
- Size282 mm × 163 mm × 19 mm
- Voltage24 VDC
- Power39.4 W
$529.00
Ships in 2-3 weeks
1.22 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Flat Backlight with Center Hole, 250 x 150 mm, White. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1384 |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 1 m |
Light
| Color | White |
|---|---|
| Center illuminance/irradiance | ≥ 22000 lux@200 mm |
| Color temperature | 6000 ~ 7000K |
| Emitting area dimension | 250 mm × 150 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
Electrical
| Power | 39.4 W |
|---|---|
| Input voltage | 24 VDC |
Mechanical
| Dimension | 282 mm × 163 mm × 19 mm |
|---|---|
| Bore dimension | Ø 50 mm |
| Weight | 0.8 kg |
| Shipping weight (estimated) | 1.22 kg |
