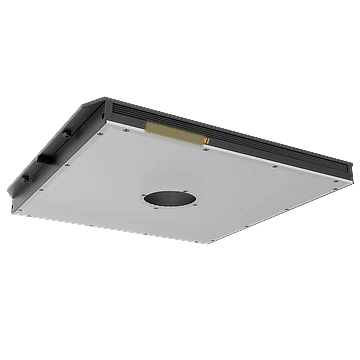

Flat Backlight with Center Hole, 120 x 120 mm, Red (LS-BKL-1371)
  • Flat Backlight with Center Hole, 120 x 120 mm, Red (LS-BKL-1371)
  • LS-BKL-1371 dimensions (mm)

Backlights

Flat Backlight with Center Hole, 120 x 120 mm, Red (LS-BKL-1371)

Model LS-BKL-1371

  • ColourRed
  • Emitting area120 mm × 120 mm
  • Size152 mm × 133 mm × 18 mm
  • Voltage24 VDC
  • Power13 W
  • Wavelength625 nm
$309.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Flat Backlight with Center Hole, 120 x 120 mm, Red (LS-BKL-1371)LS-BKL-1371

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Flat Backlight with Center Hole, 120 x 120 mm, Red. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1371

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorRed
Center illuminance/irradiance≥ 4000 lux@200 mm
Wavelength625 nm
Emitting area dimension120 mm × 120 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power13 W
Input voltage24 VDC

Mechanical

Dimension152 mm × 133 mm × 18 mm
Bore dimensionØ 40 mm
Weight0.4 kg
Shipping weight (estimated)0.66 kg
