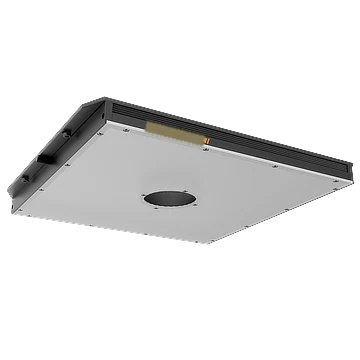

Flat Backlight with Center Hole, 50 x 50 mm, Red (LS-BKL-1364)
  • Flat Backlight with Center Hole, 50 x 50 mm, Red (LS-BKL-1364)
  • LS-BKL-1364 dimensions (mm)

Backlights

Flat Backlight with Center Hole, 50 x 50 mm, Red (LS-BKL-1364)

Model LS-BKL-1364

  • ColourRed
  • Emitting area50 mm × 50 mm
  • Size82 mm × 63.2 mm × 19 mm
  • Voltage24 VDC
  • Power1.7 W
  • Wavelength625 nm
  • Lowest power of the 53 models in its series: 1.7 W
$209.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Flat Backlight with Center Hole, 50 x 50 mm, Red (LS-BKL-1364)LS-BKL-1364

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-BKL-1364: emitting area dimension 50 mm x 50 mm, dimension 82 mm x 63.2 mm x 19 mm, bore dimension 20 mm x 20 mm, power 1.7 W.

Flat Backlight with Center Hole, 50 x 50 mm, Red. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1364

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorRed
Center illuminance/irradiance≥ 500 lux @ 200 mm
Wavelength625 nm
Emitting area dimension50 mm × 50 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power1.7 W
Input voltage24 VDC

Mechanical

Dimension82 mm × 63.2 mm × 19 mm
Bore dimension20 mm × 20 mm
Weight0.2 kg
Shipping weight (estimated)0.38 kg

Engineering data

Drive and fit the LS-BKL-1364

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 V71 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 1.7 W
Emitting area50 × 50 mmKeep the camera's field of view inside it for an even background.
Operating temperature0 to 40 °C
Cable length1 m
Center illuminance≥ 500 luxat 200 mm

Mounting and installation

Cable1 mSMR-03V-B connector

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Controllers for this light

8.1 W per channel at 24 V for this 1.7 W light

7.5 W per channel at 24 V for this 1.7 W light

20 W per channel at 24 V for this 1.7 W light

15 W per channel at 24 V for this 1.7 W light

10 W per channel at 24 V for this 1.7 W light

24 W per channel at 24 V for this 1.7 W light

Light cables

Other models in the Flat lights with center hole (LS-BKL-S126) series

See all 53 models
  • Lowest power of the 53 models in its series: 1.7 W
  • Lightest of the 53 models in its series: 0.2 kg (shared with 2 other models)
ModelEmitting areaSizePowerPriceAvailabilityLink
LS-BKL-1364This model50 mm × 50 mm82 mm × 63.2 mm × 19 mm1.7 W$209.00 Ships in 2-3 weeks
LS-BKL-136350 mm × 50 mm82 mm × 63.2 mm × 19 mm2.0 W$209.00 Ships in 2-3 weeks View
LS-BKL-136550 mm × 50 mm82 mm × 63.2 mm × 19 mm2.2 W$209.00 Ships in 2-3 weeks View
LS-BKL-1368100 mm × 100 mm132 mm × 113 mm × 18 mm11 W$279.00 Quote Ships in 2-3 weeks View
LS-BKL-1366100 mm × 100 mm132 mm × 113 mm × 18 mm10.5 W$279.00 Ships in 2-3 weeks View
LS-BKL-1367100 mm × 100 mm132 mm × 113 mm × 18 mm8.8 W$279.00 Ships in 2-3 weeks View
LS-BKL-1369100 mm × 100 mm132 mm × 113 mm × 18 mm12 W$279.00 Ships in 2-3 weeks View
LS-BKL-1372120 mm × 120 mm152 mm × 133 mm × 18 mm16 W$309.00 Quote Ships in 2-3 weeks View
LS-BKL-1370120 mm × 120 mm152 mm × 133 mm × 18 mm15.3 W$309.00 Ships in 2-3 weeks View
LS-BKL-1371120 mm × 120 mm152 mm × 133 mm × 18 mm13 W$309.00 Ships in 2-3 weeks View
LS-BKL-1373120 mm × 120 mm152 mm × 133 mm × 18 mm17.6 W$309.00 Ships in 2-3 weeks View
LS-BKL-1374150 mm × 150 mm182 mm × 163 mm × 18 mm26.4 W$389.00 Ships in 2-3 weeks View
LS-BKL-1375150 mm × 150 mm182 mm × 163 mm × 18 mm19.5 W$389.00 Ships in 2-3 weeks View
LS-BKL-1376150 mm × 150 mm182 mm × 163 mm × 18 mm27.7 W$389.00 Ships in 2-3 weeks View
LS-BKL-1383250 mm × 150 mm282 mm × 163 mm × 19 mm41 W$529.00 Quote Ships in 2-3 weeks View
LS-BKL-1381250 mm × 150 mm282 mm × 163 mm × 19 mm34.7 W$529.00 Ships in 2-3 weeks View
LS-BKL-1382250 mm × 150 mm282 mm × 163 mm × 19 mm30.8 W$529.00 Ships in 2-3 weeks View
LS-BKL-1384250 mm × 150 mm282 mm × 163 mm × 19 mm39.4 W$529.00 Ships in 2-3 weeks View
LS-BKL-1379200 mm × 200 mm232 mm × 213 mm × 18 mm48 W$549.00 Quote Ships in 2-3 weeks View
LS-BKL-1377200 mm × 200 mm232 mm × 213 mm × 18 mm41.4 W$549.00 Ships in 2-3 weeks View
LS-BKL-1378200 mm × 200 mm232 mm × 213 mm × 18 mm34.1 W$549.00 Ships in 2-3 weeks View
LS-BKL-1380200 mm × 200 mm232 mm × 213 mm × 18 mm48 W$549.00 Ships in 2-3 weeks View
LS-BKL-1387250 mm × 200 mm282 mm × 213 mm × 19 mm53 W$639.00 Quote Ships in 2-3 weeks View
LS-BKL-1385250 mm × 200 mm282 mm × 213 mm × 19 mm48 W$639.00 Ships in 2-3 weeks View
LS-BKL-1386250 mm × 200 mm282 mm × 213 mm × 19 mm45.7 W$639.00 Ships in 2-3 weeks View
