Lighting accessories

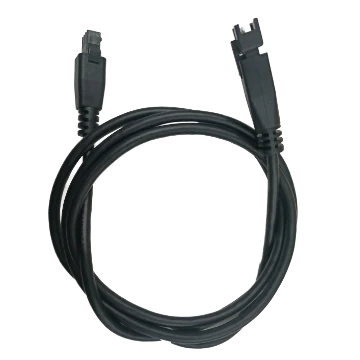

Light Cable, SMR-03V-B to SMR-03V-BC, 5 m (LS-LAC-0039)
Model LS-LAC-0039
- Length5 m
- End ASMR-03V-B
- End BSMR-03V-BC
- DiameterΦ5 mm
$39.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Light Cable, SMR-03V-B to SMR-03V-BC, 5 m. Provides various connector types for various machine vision light source interfaces. Various lengths can be selected to meet the installation mode of different distances of the light sources (it should be noted that there is a risk of voltage drop under 30 m distance).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LAC-0039 |
|---|---|
| Flame resistance rating | VW-1 |
| Insulation | ≥ 20 MΩ/KM |
Interfaces and I/O
| End A connector | SMR-03V-B |
|---|---|
| End B connector | SMR-03V-BC |
| Cable diameter | Φ5 mm |
| Cable mechanical | 24AWG*3C |
| Cable jacket | PVC |
| Connector durability | 2000 times |
Environment and compliance
| Temperature | Working temperature: 0 °C to 80 °C (32 °F to 176 °F); Storage temperature: –20 °C to 80 °C (–4 °F to 176 °F) |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
| Ingress protection | IP55 (under correct installation) |
| Certification | RoHS 2.0 |
Electrical
| Channel | 1 |
|---|---|
| Withstand voltage capability | 30 V |
Mechanical
| Length | 5 m |
|---|---|
| Max. U-type bending cycles | 5 million times |
| Min. bending radius | 60 mm |
| Shipping weight (estimated) | 0.31 kg |
