Lighting accessories

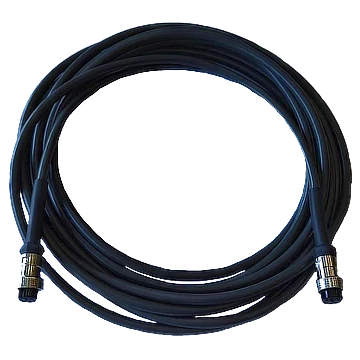

Light Cable, 19M-8A to 19M-8A, 15 m (LS-LAC-0043)
Model LS-LAC-0043
- Length15 m
- End A19M-8A
- End B19M-8A
- DiameterΦ8.75 mm
$59.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Light Cable, 19M-8A to 19M-8A, 15 m. Provides high-quality cable(s) for drag chain use scenarios. Various lengths can be selected to meet the installation mode of different distances of the light sources (it should be noted that there is a certain voltage drop under a long distance).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LAC-0043 |
|---|---|
| Flame resistance rating | VW-1 |
| Insulation | ≥ 10 MΩ/KM |
Interfaces and I/O
| End A connector | 19M-8A |
|---|---|
| End B connector | 19M-8A |
| Cable diameter | Φ8.75 mm |
| Cable jacket | PVC |
| Connector durability | 500 times |
Environment and compliance
| Temperature | Working temperature: 0 °C to 80 °C (32 °F to 176 °F); Storage temperature: –20 °C to 80 °C (–4 °F to 176 °F) |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
| Ingress protection | IP55 (under correct installation) |
| Certification | RoHS 2.0 |
Electrical
| Channel | 1 |
|---|---|
| Withstand voltage capability | 300 V |
Mechanical
| Length | 15 m |
|---|---|
| Max. ±90° bending cycles | 2 million times |
| Min. bending radius | Cable: 105 mm; Cable plus connector tail: 130 mm |
| Shipping weight (estimated) | 0.31 kg |
