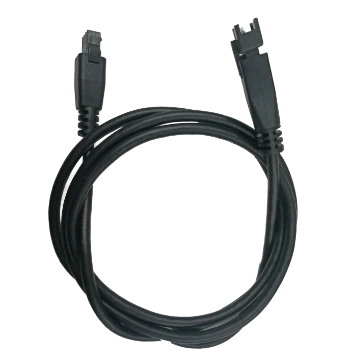

Light Cable, SMR-03V-B to SMR-03V-BC, 15 m (LS-LAC-0044)
  • Light Cable, SMR-03V-B to SMR-03V-BC, 15 m (LS-LAC-0044)
  • LS-LAC-0044 dimensions (mm)

Lighting accessories

Light Cable, SMR-03V-B to SMR-03V-BC, 15 m (LS-LAC-0044)

Model LS-LAC-0044

  • Length15 m
  • End ASMR-03V-B
  • End BSMR-03V-BC
  • DiameterΦ5 mm
$59.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Light Cable, SMR-03V-B to SMR-03V-BC, 15 m (LS-LAC-0044)LS-LAC-0044

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Light Cable, SMR-03V-B to SMR-03V-BC, 15 m. Provides various connector types for various machine vision light source interfaces. Various lengths can be selected to meet the installation mode of different distances of the light sources (it should be noted that there is a risk of voltage drop under 30 m distance).

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LAC-0044
Flame resistance ratingVW-1
Insulation≥ 20 MΩ/KM

Interfaces and I/O

End A connectorSMR-03V-B
End B connectorSMR-03V-BC
Cable diameterΦ5 mm
Cable mechanical24AWG*2C
Cable jacketPVC
Connector durability2000 times

Environment and compliance

TemperatureWorking temperature: 0 °C to 80 °C (32 °F to 176 °F); Storage temperature: –20 °C to 80 °C (–4 °F to 176 °F)
Humidity20% RH to 90% RH (no condensation)
Ingress protectionIP55 (under correct installation)
CertificationRoHS 2.0

Electrical

Channel1
Withstand voltage capability30 V

Mechanical

Length15 m
Max. U-type bending cycles5 million times
Min. bending radius60 mm
Shipping weight (estimated)0.31 kg
