Lighting accessories

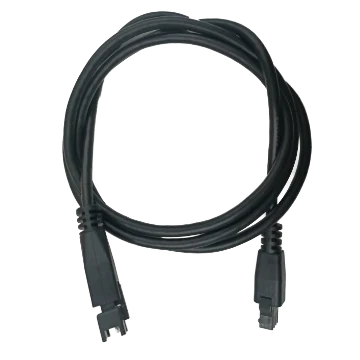

Light Cable, SMR-03V-BC to SMR-03V-B, 10 m (LS-LAC-0028)
Model LS-LAC-0028
- Length10 m
- End ASMR-03V-BC
- End BSMR-03V-B
- Diameterφ4 mm
$49.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Light Cable, SMR-03V-BC to SMR-03V-B, 10 m. Multiple lengths for mounting lights at different distances Multiple light connectors to match all common light interface types
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LAC-0028 |
|---|---|
| Flame resistance rating | 3 A |
| Insulation | ≥ 10 MΩ |
Interfaces and I/O
| End A connector | SMR-03V-BC |
|---|---|
| End B connector | SMR-03V-B |
| Cable diameter | φ4 mm |
| Cable jacket | TPU |
| Connector durability | 2×10, 000 cycles |
Environment and compliance
| Temperature | Operating temp.: -20 to 40 °C, Storage temp.: -20 to 60 °C |
|---|---|
| Humidity | 20% ~ 85%RH |
| Ingress protection | IP30 (when properly installed) |
| Certification | RoHS |
Electrical
| Channel | 1 |
|---|---|
| Withstand voltage capability | 300 |
Mechanical
| Length | 10 m |
|---|---|
| Max. ±90° bending cycles | 2 million times |
| Min. bending radius | 48 mm |
| Shipping weight (estimated) | 0.31 kg |
Other models in the Light extension cables (LS-LAC-S02) series
See all 27 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LAC-0038 | 5 m | $39.00 | Ships in 2-3 weeks | View |
| LS-LAC-0035 | 1 m | $39.00 | Ships in 2-3 weeks | View |
| LS-LAC-0037 | 3 m | $39.00 | Ships in 2-3 weeks | View |
| LS-LAC-0039 | 5 m | $39.00 | Ships in 2-3 weeks | View |
| LS-LAC-0040 | 7 m | $39.00 | Ships in 2-3 weeks | View |
| LS-LAC-0023 | 5 m | $39.00 | Ships in 2-3 weeks | View |
| LS-LAC-0026 | 5 m | $39.00 | Ships in 2-3 weeks | View |
| LS-LAC-0021 | 3 m | $39.00 | Ships in 2-3 weeks | View |
| LS-LAC-0022 | 3 m | $39.00 | Ships in 2-3 weeks | View |
| LS-LAC-0020 | 1 m | $39.00 | Ships in 2-3 weeks | View |
| LS-LAC-0027 | 5 m | $39.00 | Ships in 2-3 weeks | View |
| LS-LAC-0025 | 5 m | $39.00 | Ships in 2-3 weeks | View |
| LS-LAC-0024 | 5 m | $39.00 | Ships in 2-3 weeks | View |
| LS-LAC-0041 | 10 m | $49.00 | Ships in 2-3 weeks | View |
| LS-LAC-0042 | 10 m | $49.00 | Ships in 2-3 weeks | View |
| LS-LAC-0043 | 15 m | $59.00 | Ships in 2-3 weeks | View |
| LS-LAC-0044 | 15 m | $59.00 | Ships in 2-3 weeks | View |
| LS-LAC-0031 | 15 m | $59.00 | Ships in 2-3 weeks | View |
| LS-LAC-0032 | 15 m | $59.00 | Ships in 2-3 weeks | View |
| LS-LAC-0029 | 15 m | $59.00 | Ships in 2-3 weeks | View |
| LS-LAC-0030 | 15 m | $59.00 | Ships in 2-3 weeks | View |
| LS-LAC-0045 | 20 m | $69.00 | Ships in 2-3 weeks | View |
| LS-LAC-0033 | 20 m | $69.00 | Ships in 2-3 weeks | View |
| LS-LAC-0046 | 30 m | $89.00 | Ships in 2-3 weeks | View |
