Backlights · 23 models · from $589.00

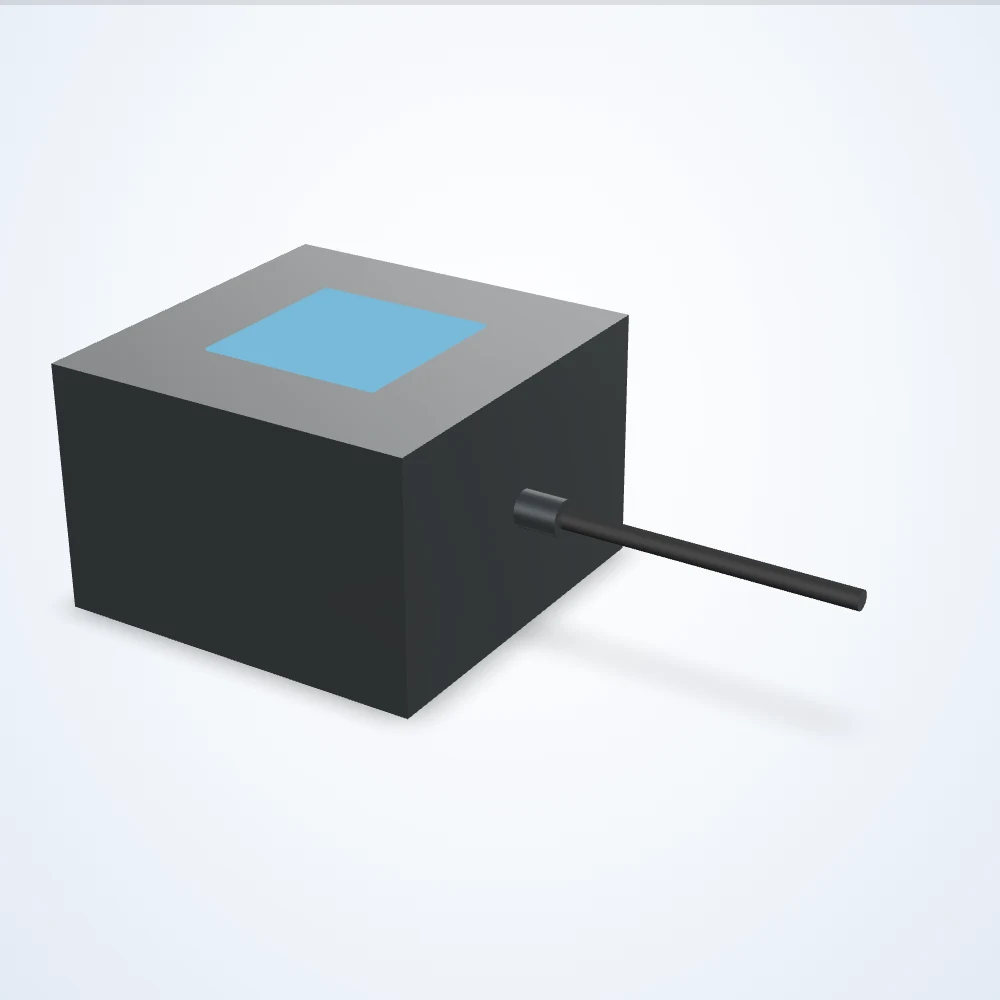

Backlight series, Flying Leads, IP50 (S09)
The Backlight series, Flying Leads, IP50 (S09) is a range of 23 backlights from LumaSpec Vision, from $589.00. It comes in 23 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 51.5 x 51.5 mm, 76.5 x 76.5 mm, 101.5 x 101.5 mm, 126.5 x 126.5 mm, 151.5 x 151.5 mm, 176.5 x 176.5 mm, 201.5 x 201.5 mm, 226.5 x 226.5 mm, 251.5 x 251.5 mm, 276.5 x 276.5 mm, 301.5 x 301.5 mm, 326.5 x 326.5 mm, 351.5 x 351.5 mm, 376.5 x 376.5 mm, 401.5 x 401.5 mm, 426.5 x 426.5 mm and 7 more |
|---|---|
| Type | Standard |
| Voltage | 24 V |
| Colour | Red, Green, Blue, White, Infrared |
| Wavelength | 730 nm, 850 nm, 940 nm |
All 23 models in the Backlight series, Flying Leads, IP50 (S09)
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0144-L1 | 51.5 x 51.5 mm | from $589.00 quote | 159 in stock | View |
| LS-BKL-0144-L2 | 76.5 x 76.5 mm | from $679.00 quote | 160 in stock | View |
| LS-BKL-0144-L3 | 101.5 x 101.5 mm | from $779.00 quote | 151 in stock | View |
| LS-BKL-0144-L4 | 126.5 x 126.5 mm | from $879.00 quote | 193 in stock | View |
| LS-BKL-0144-L5 | 151.5 x 151.5 mm | from $989.00 quote | 205 in stock | View |
| LS-BKL-0144-L6 | 176.5 x 176.5 mm | from $1,089.00 quote | 182 in stock | View |
| LS-BKL-0144-L7 | 201.5 x 201.5 mm | from $1,199.00 quote | 195 in stock | View |
| LS-BKL-0144-L8 | 226.5 x 226.5 mm | from $1,309.00 quote | 192 in stock | View |
| LS-BKL-0144-L9 | 251.5 x 251.5 mm | from $1,429.00 quote | 85 in stock | View |
| LS-BKL-0144-L10 | 276.5 x 276.5 mm | from $1,549.00 quote | 74 in stock | View |
| LS-BKL-0144-L11 | 301.5 x 301.5 mm | from $1,659.00 quote | 84 in stock | View |
| LS-BKL-0144-L12 | 326.5 x 326.5 mm | from $1,789.00 quote | 75 in stock | View |
| LS-BKL-0144-L13 | 351.5 x 351.5 mm | from $1,909.00 quote | 67 in stock | View |
| LS-BKL-0144-L14 | 376.5 x 376.5 mm | from $2,039.00 quote | 79 in stock | View |
| LS-BKL-0144-L15 | 401.5 x 401.5 mm | from $2,169.00 quote | 73 in stock | View |
| LS-BKL-0144-L16 | 426.5 x 426.5 mm | from $2,299.00 quote | 74 in stock | View |
| LS-BKL-0144-L17 | 451.5 x 451.5 mm | from $2,439.00 quote | 72 in stock | View |
| LS-BKL-0144-L18 | 476.5 x 476.5 mm | from $2,579.00 quote | 78 in stock | View |
| LS-BKL-0144-L19 | 501.5 x 501.5 mm | from $2,719.00 quote | 86 in stock | View |
| LS-BKL-0144-L20 | 526.5 x 526.5 mm | from $2,829.00 quote | 65 in stock | View |
| LS-BKL-0144-L21 | 551.5 x 551.5 mm | from $2,949.00 quote | 81 in stock | View |
| LS-BKL-0144-L22 | 576.5 x 576.5 mm | from $3,059.00 quote | 82 in stock | View |
| LS-BKL-0144-L23 | 601.5 x 601.5 mm | from $3,169.00 quote | 75 in stock | View |
