Backlights · 4 models · from $159.00

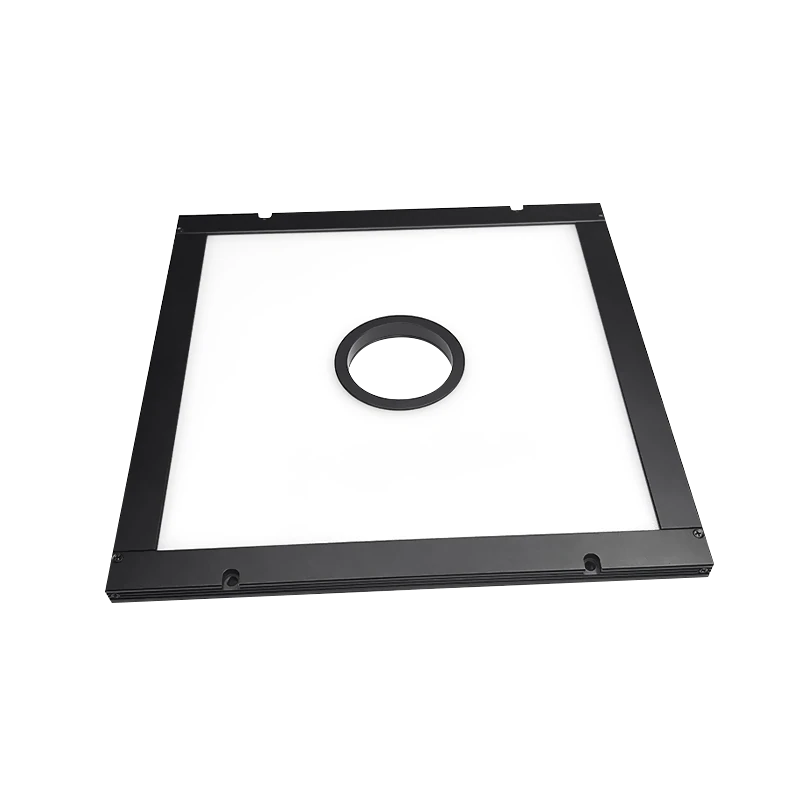

Hole side backlight (2FLCH series)
The Hole side backlight (2FLCH series) is a range of 4 backlights from LumaSpec Vision, from $159.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 150 x 150 mm, 200 x 200 mm, 250 x 250 mm, 300 x 300 mm |
|---|---|
| Colour | Blue, White |
| Type | With centre hole |
| Voltage | 24 V |
| Connector | 3-pin flat |
Features
- Centre hole dia. 50 mm (remark: hole diameter 50)
- 10.5 mm thickness
- Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
- Luminous size:150mm*150mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:30000 hours for red light and 30000 hours for white light.
- Suitable for high-precision detection such as measurement of the four dimensions of the object,edge breakage detection and transparent object impurity detection,etc.
Typical uses
- Measurement of the four dimensions of the object
- Edge breakage detection
- Transparent object impurity detection
- Phone case edge detection
- Sole contour detection
All 4 models in the Hole side backlight (2FLCH series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2FLCH150150K50 | 150 x 150 mm | 10.1 W | $159.00 | 6 in stock | View | |
| LS-2FLCH200200K50 | 200 x 200 mm | 13.4 W | $219.00 | 8 in stock | View | |
| LS-2FLCH250250K50 | 250 x 250 mm | 16.8 W | $299.00 | 5 in stock | View | |
| LS-2FLCH300300K50 | 300 x 300 mm | 20.2 W | $399.00 | 7 in stock | View |
