Backlights · 18 models · from $89.00

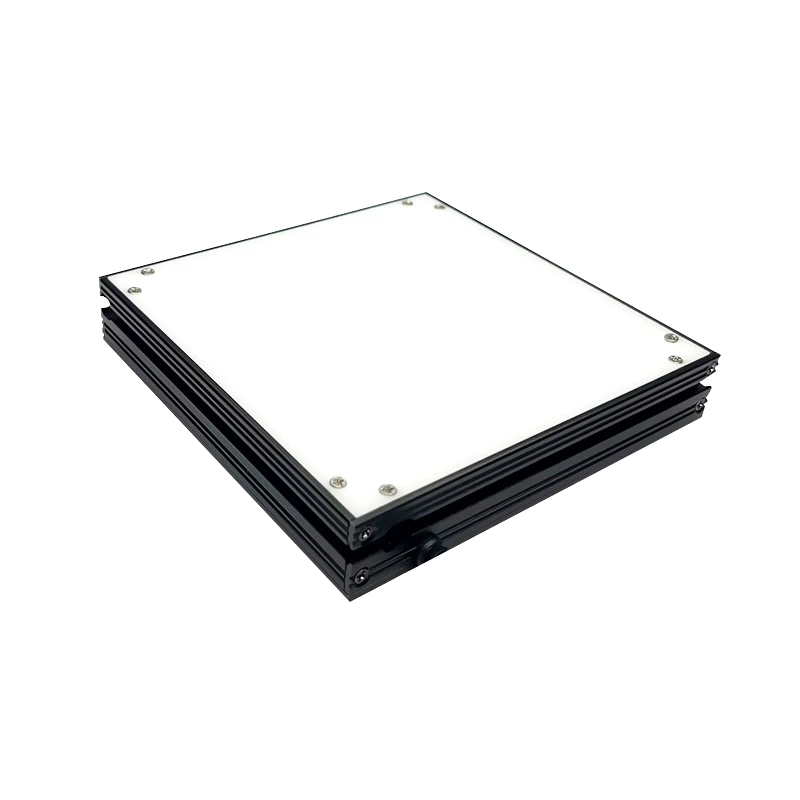

High power backlight (2FL series)
The High power backlight (2FL series) is a range of 18 backlights from LumaSpec Vision, from $89.00. It comes in 18 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 50 x 50 mm, 60 x 60 mm, 70 x 70 mm, 80 x 80 mm, 90 x 90 mm, 100 x 100 mm, 120 x 120 mm, 150 x 150 mm, 200 x 150 mm, 200 x 200 mm, 250 x 125 mm, 250 x 250 mm, 300 x 150 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm and 2 more |
|---|---|
| Colour | Red, Blue, White |
| Type | High power / strobe |
| Voltage | 24 V |
| Connector | 3-pin flat |
Features
- High power backlight with SMD LEDs
- Installation by M3 nut slot or from the bottom side
- Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
- Luminous size can be made individually: 10050, 12060, 14070, 16080, 200100, 240120 (remark for the small sizes)
- Sizes 150 x 150 and up marked 'Large size'
- Luminous size: 50mm*50mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:30000 hours for red light and 30000 hours for white light.
Typical uses
- Contour dimension measurement
- Edge breakage detection
- Transparent object impurity detection
- Oral liquid height detection
- Contour detection (white background with contrasting black edges)
All 18 models in the High power backlight (2FL series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2FL5050 | 50 x 50 mm | 2.9 W | $89.00 | 10 in stock | View | |
| LS-2FL6060 | 60 x 60 mm | 3.6 W | $89.00 | 10 in stock | View | |
| LS-2FL7070 | 70 x 70 mm | 5.4 W | $99.00 | 11 in stock | View | |
| LS-2FL8080 | 80 x 80 mm | 6.5 W | $99.00 | 7 in stock | View | |
| LS-2FL9090 | 90 x 90 mm | 7.6 W | $109.00 | 9 in stock | View | |
| LS-2FL100100 | 100 x 100 mm | 11.5 W | $109.00 | 11 in stock | View | |
| LS-2FL120120 | 120 x 120 mm | 13 W | $129.00 | 12 in stock | View | |
| LS-2FL150150 | 150 x 150 mm | 13.7 W | $159.00 | 6 in stock | View | |
| LS-2FL200150 | 200 x 150 mm | 17.5 W | $189.00 | 9 in stock | View | |
| LS-2FL250125 | 250 x 125 mm | 16.8 W | $189.00 | 12 in stock | View | |
| LS-2FL200200 | 200 x 200 mm | 22.5 W | $219.00 | 11 in stock | View | |
| LS-2FL300150 | 300 x 150 mm | 27.5 W | $239.00 | 11 in stock | View | |
| LS-2FL300200 | 300 x 200 mm | 34.9 W | $289.00 | 11 in stock | View | |
| LS-2FL250250 | 250 x 250 mm | 33.7 W | $299.00 | 9 in stock | View | |
| LS-2FL400200 | 400 x 200 mm | 44.9 W | $359.00 | 10 in stock | View | |
| LS-2FL300300 | 300 x 300 mm | 54.9 W | $399.00 | 7 in stock | View | |
| LS-2FL400300 | 400 x 300 mm | 69.9 W | $509.00 | 11 in stock | View | |
| LS-2FL400400 | 400 x 400 mm | 89.9 W | $649.00 | 10 in stock | View |
