Backlights · 40 models · from $79.00

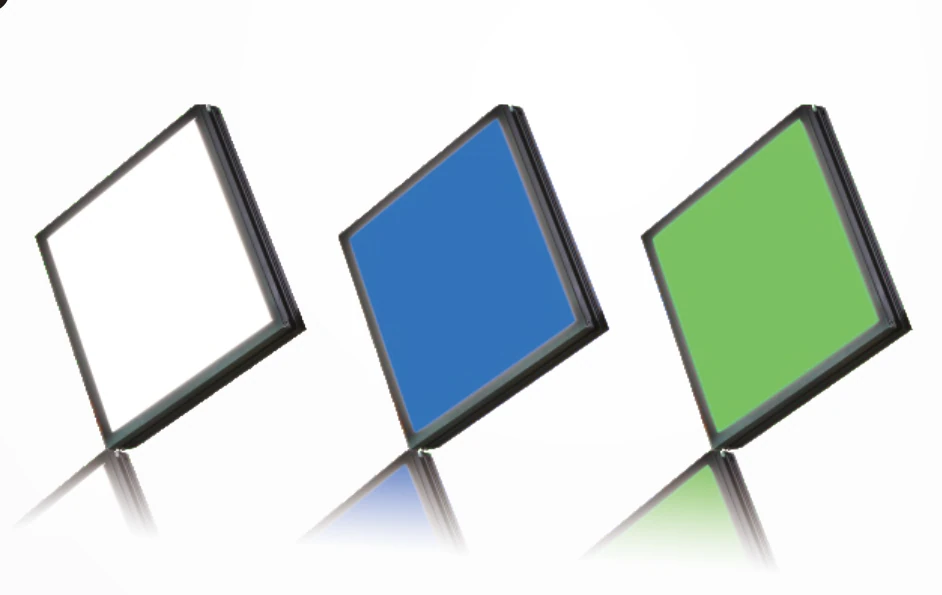

High luminance back light (2FT/3FT)
The High luminance back light (2FT/3FT) is a range of 40 backlights from LumaSpec Vision, from $79.00. It comes in 40 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 30 x 30 mm, 50 x 50 mm, 60 x 40 mm, 60 x 60 mm, 70 x 70 mm, 80 x 80 mm, 90 x 90 mm, 100 x 100 mm, 110 x 60 mm, 110 x 75 mm, 120 x 120 mm, 130 x 130 mm, 130 x 50 mm, 140 x 140 mm, 150 x 100 mm, 150 x 150 mm and 24 more |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
| Voltage | 24 V |
Features
- Compact design, efficient eco-friendly material
- Imported ultrathin paste (SMD) LED, high luminance, high uniformity
- Precision-moulded shell, small batch-to-batch difference
- Multiple installation methods
- Frame-structure installation (nut insertion hole, M3 screw, nut not attached) or base-area mounting holes
- Cover wire jacket, anti-pull
- Optional polarizing film to reduce lamp shadow or glare on reflective objects
Typical uses
- Contour dimension measurement
- Damaged edge inspection
- Transparency impurity inspection
- Oral liquid level height inspection
- Imaging example: contour inspection of a metal logo (LS-2FT7070-W)
All 40 models in the High luminance back light (2FT/3FT)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2FT3030 | 30 x 30 mm | 1.2 W | $79.00 | 15 in stock | View | |
| LS-2FT4060 | 60 x 40 mm | 2.2 W | $89.00 | 17 in stock | View | |
| LS-2FT5050 | 50 x 50 mm | 3.6 W | $89.00 | 16 in stock | View | |
| LS-2FT6060 | 60 x 60 mm | 4.8 W | $89.00 | 12 in stock | View | |
| LS-2FT7070 | 70 x 70 mm | 5.8 W | $99.00 | 18 in stock | View | |
| LS-2FT8080 | 80 x 80 mm | 7.2 W | $99.00 | 15 in stock | View | |
| LS-2FT11060 | 110 x 60 mm | 7.2 W | $99.00 | 19 in stock | View | |
| LS-2FT13050 | 130 x 50 mm | 6.7 W | $99.00 | 16 in stock | View | |
| LS-2FT9090 | 90 x 90 mm | 9.6 W | $109.00 | 14 in stock | View | |
| LS-2FT100100 | 100 x 100 mm | 11.5 W | $109.00 | 13 in stock | View | |
| LS-2FT11075 | 110 x 75 mm | 7.7 W | $109.00 | 13 in stock | View | |
| LS-2FT15050 | 150 x 50 mm | 8.6 W | $109.00 | 12 in stock | View | |
| LS-3FT20641 | 206 x 41 mm | 7.9 W | $109.00 | 13 in stock | View | |
| LS-3FT20060 | 200 x 60 mm | 12 W | $119.00 | 14 in stock | View | |
| LS-3FT30641 | 306 x 41 mm | 11.5 W | $119.00 | 13 in stock | View | |
| LS-2FT120120 | 120 x 120 mm | 14.4 W | $129.00 | 13 in stock | View | |
| LS-2FT150100 | 150 x 100 mm | 14.4 W | $129.00 | 16 in stock | View | |
| LS-2FT17090 | 170 x 90 mm | 15.1 W | $129.00 | 9 in stock | View | |
| LS-2FT130130 | 130 x 130 mm | 16.8 W | $139.00 | 16 in stock | View | |
| LS-2FT180100 | 180 x 100 mm | 16.8 W | $139.00 | 15 in stock | View | |
| LS-3FT24070 | 240 x 70 mm | 17.3 W | $139.00 | 15 in stock | View | |
| LS-3FT30060 | 300 x 60 mm | 17.3 W | $139.00 | 15 in stock | View | |
| LS-2FT140140 | 140 x 140 mm | 18.5 W | $149.00 | 17 in stock | View | |
| LS-2FT150150 | 150 x 150 mm | 19.2 W | $159.00 | 17 in stock | View | |
| LS-2FT160160 | 160 x 160 mm | 23 W | $169.00 | 15 in stock | View | |
| LS-2FT180140 | 180 x 140 mm | 19.2 W | $169.00 | 17 in stock | View | |
| LS-2FT180180 | 180 x 180 mm | 28.1 W | $189.00 | 16 in stock | View | |
| LS-3FT200150 | 200 x 150 mm | 25.2 W | $189.00 | 16 in stock | View | |
| LS-3FT60060 | 600 x 60 mm | 32.4 W | $209.00 | 16 in stock | View | |
| LS-3FT200200 | 200 x 200 mm | 33.6 W | $219.00 | 9 in stock | View | |
| LS-3FT500100 | 500 x 100 mm | 48 W | $259.00 | 14 in stock | View | |
| LS-3FT300200 | 300 x 200 mm | 50.4 W | $289.00 | 10 in stock | View | |
| LS-3FT250250 | 250 x 250 mm | 50.4 W | $299.00 | 15 in stock | View | |
| LS-3FT260260 | 260 x 260 mm | 51.9 W | $319.00 | 13 in stock | View | |
| LS-3FT280280 | 280 x 280 mm | 62.4 W | $359.00 | 12 in stock | View | |
| LS-3FT300300 | 300 x 300 mm | 77.3 W | $399.00 | 18 in stock | View | |
| LS-3FT400250 | 400 x 250 mm | 91.2 W | $439.00 | 17 in stock | View | |
| LS-3FT350350 | 350 x 350 mm | 116.6 W | $519.00 | 13 in stock | View | |
| LS-3FT500500 | 500 x 500 mm | 207.4 W | $969.00 | 13 in stock | View | |
| LS-3FT640427 | 640 x 427 mm | 115.2 W | $1,049.00 | 16 in stock | View |
