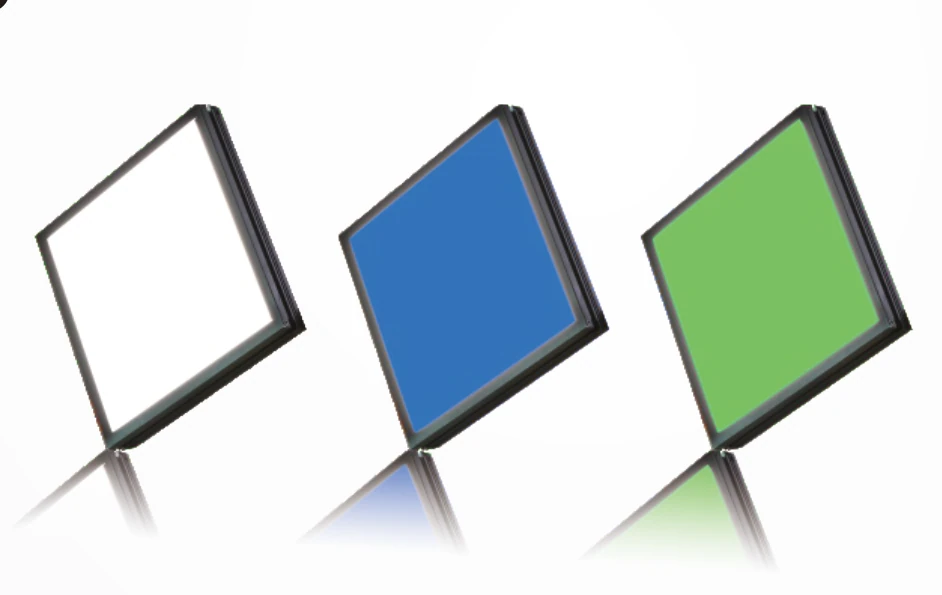

300 x 200 mm High luminance back light (2FT/3FT) (LS-3FT300200)
Model LS-3FT300200
Compact back light using imported ultrathin surface-mount LEDs for high luminance and uniformity, in a precision-moulded shell that keeps batches consistent, with multiple installation methods. 2FT luminous surfaces range from 30x30 to 180x180 mm, 3FT from 190x190 to 500x500 mm; square and rectangular sizes can be customized.
Features
- Compact design, efficient eco-friendly material
- Imported ultrathin paste (SMD) LED, high luminance, high uniformity
- Precision-moulded shell, small batch-to-batch difference
- Multiple installation methods
- Frame-structure installation (nut insertion hole, M3 screw, nut not attached) or base-area mounting holes
- Cover wire jacket, anti-pull
- Optional polarizing film to reduce lamp shadow or glare on reflective objects
Specifications
| Model | LS-3FT300200 |
|---|---|
| Voltage | 24 V |
| Adapted controller | Analog controller, digital controller, high power controller |
| Customizable | viewport, length and width, multi-area control, colour and colour temperature, cable length, installation method |
| Cable (mm) | 500 (drawings) |
| Option | Polarizing film |
| Min. emitting area | 30mm x 30mm |
| Max. emitting area | 620mm x 427mm |
| Recommended working distance | 1~100mm |
| FOV | 1~600mm |
| Colours (overview) | red / green / blue / white |
| Colour temperature of white | 6600K |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Life span | 50000 h (to 50% of factory-default luminance) |
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
| Custom wavelengths | UV & IR light can be customized as required |
| Power, R (W) | 30.2 |
| Power, G/B/W (W) | 50.4 |
| Weight (g) | 1518 |
| Emitting surface (mm) | 300 x 200 |
| Dimension drawing | 30 |
| Common | N |
Applications
- Contour dimension measurement
- Damaged edge inspection
- Transparency impurity inspection
- Oral liquid level height inspection
- Imaging example: contour inspection of a metal logo (LS-2FT7070-W)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the High luminance back light (2FT/3FT) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
