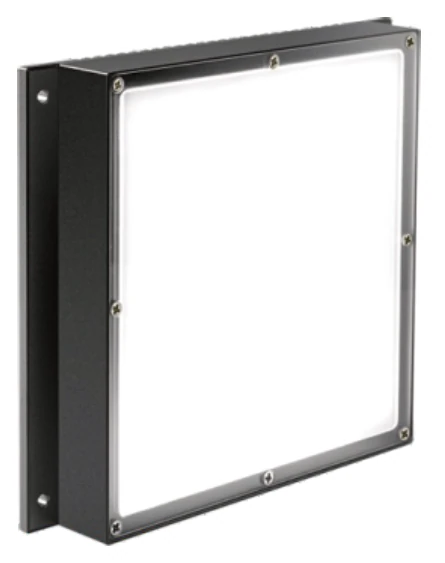

Back light source (HFS)
The Back light source (HFS) is a range of 20 backlights from LumaSpec Vision, from $79.00. It comes in 16 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 27 x 27 mm, 48 x 28 mm, 50 x 50 mm, 70 x 70 mm, 100 x 100 mm, 120 x 120 mm, 150 x 100 mm, 180 x 150 mm, 200 x 150 mm, 200 x 200 mm, 250 x 250 mm, 260 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 300 mm, 500 x 400 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
| Voltage | 24 V |
Features
- High density LED distributed at the bottom of the light source
- Good uniformity, soft and natural light, high brightness
- Flexible size, convenient customization, wide range of applications
- Various installation methods for convenient mounting
Typical uses
- Liquid level inspection
- Dimension measuring
- Liquid foreign matter inspection
- Burr inspection for metal profile
- Appearance inspection
- Dimension measuring for workpiece
All 20 models in the Back light source (HFS)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-HFS2727 | 27 x 27 mm | 1.7 W | $79.00 | 14 in stock | View | |
| LS-HFS4828 | 48 x 28 mm | 1.7 W | $79.00 | 10 in stock | View | |
| LS-2HFS2727 | 27 x 27 mm | 1.7 W | $79.00 | 14 in stock | View | |
| LS-HFS5050 | 50 x 50 mm | 3 W | $89.00 | 8 in stock | View | |
| LS-2HFS5050 | 50 x 50 mm | 3 W | $89.00 | 14 in stock | View | |
| LS-HFS7070 | 70 x 70 mm | 6.3 W | $99.00 | 13 in stock | View | |
| LS-HFS100100 | 100 x 100 mm | 11 W | $109.00 | 14 in stock | View | |
| LS-2HFS100100 | 100 x 100 mm | 11 W | $109.00 | 16 in stock | View | |
| LS-HFS120120 | 120 x 120 mm | 12 W | $129.00 | 13 in stock | View | |
| LS-HFS150100 | 150 x 100 mm | 16 W | $129.00 | 14 in stock | View | |
| LS-2HFS180150 | 180 x 150 mm | 34 W | $169.00 | 14 in stock | View | |
| LS-HFS180150 | 180 x 150 mm | 34 W | $169.00 | 14 in stock | View | |
| LS-HFS200150 | 200 x 150 mm | 25 W | $189.00 | 15 in stock | View | |
| LS-HFS200200 | 200 x 200 mm | 42 W | $219.00 | 13 in stock | View | |
| LS-HFS260200 | 260 x 200 mm | 44 W | $259.00 | 17 in stock | View | |
| LS-2HFS300200 | 300 x 200 mm | 63 W | $289.00 | 13 in stock | View | |
| LS-HFS250250 | 250 x 250 mm | 48 W | $299.00 | 11 in stock | View | |
| LS-HFS300300 | 300 x 300 mm | 101 W | $399.00 | 15 in stock | View | |
| LS-HFS400300 | 400 x 300 mm | 124 W | $509.00 | 12 in stock | View | |
| LS-HFS500400 | 500 x 400 mm | 174 W | $789.00 | 12 in stock | View |
