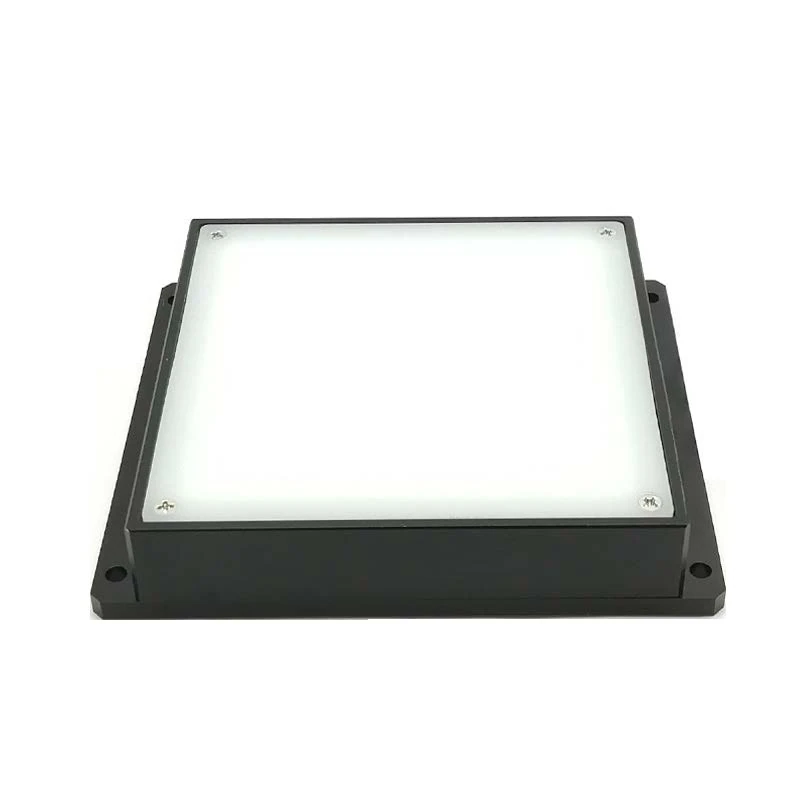

Back light (FL series)
The Back light (FL series) is a range of 9 backlights from LumaSpec Vision, from $89.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 50 x 50 mm, 70 x 70 mm, 100 x 100 mm, 120 x 120 mm, 150 x 100 mm, 180 x 150 mm, 200 x 150 mm, 200 x 200 mm, 250 x 250 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
| Voltage | 24 V |
Features
- High array LED arrangement
- High brightness plane lighting
- Customizable: size, length and width, colour and colour temperature, cable length, installation method
Typical uses
- Contour measurement
- Machining dimension measurement
- Glass bottle damage, foreign body inspection
- Hose position inspection (imaging case)
All 9 models in the Back light (FL series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-FL5050K | 50 x 50 mm | 3.5 W | $89.00 | 19 in stock | View | |
| LS-FL7070K | 70 x 70 mm | 8 W | $99.00 | 13 in stock | View | |
| LS-FL100100K | 100 x 100 mm | 11 W | $109.00 | 15 in stock | View | |
| LS-FL120120K | 120 x 120 mm | 10 W | $129.00 | 17 in stock | View | |
| LS-FL150100K | 150 x 100 mm | 13.5 W | $129.00 | 11 in stock | View | |
| LS-FL180150K | 180 x 150 mm | 17.5 W | $169.00 | 18 in stock | View | |
| LS-FL200150K | 200 x 150 mm | 27 W | $189.00 | 18 in stock | View | |
| LS-FL200200K | 200 x 200 mm | 24 W | $219.00 | 18 in stock | View | |
| LS-FL250250K | 250 x 250 mm | 38 W | $299.00 | 12 in stock | View |
