Backlights · 15 models · from $119.00

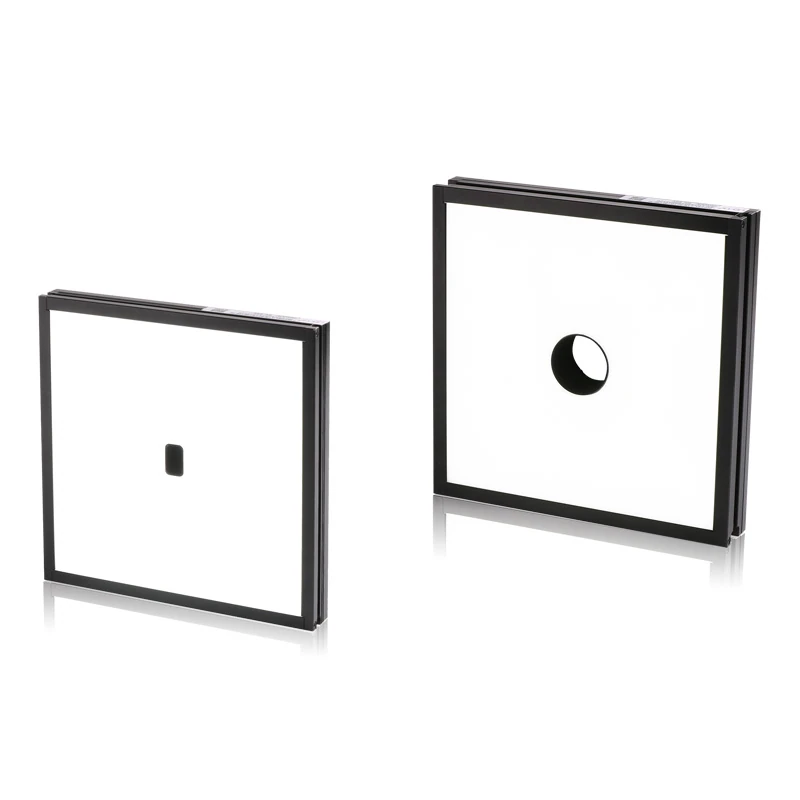

Ring back light (3FTR)
The Ring back light (3FTR) is a range of 15 backlights from LumaSpec Vision, from $119.00. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Colour | Red, Green, Blue, White |
|---|---|
| Size | 100-200 mm, 200-400 mm, 400 mm + |
| Type | Standard |
| Voltage | 24 V |
Features
- High-density LED distribute to the bottom of the light
- High uniformity, high luminance
- Diverse dimension for reference, used to various applications
- Emitting area and the center hole can be customized
Typical uses
- Boundary dimension measurement
- Damaged edge inspection
- Transparency impurity inspection
- Oral liquid level height inspection
All 15 models in the Ring back light (3FTR)
| Model | Size | Colours | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-3FTR100100-D34 | $119.00 | 17 in stock | View | ||
| LS-3FTR110110-D40 | $119.00 | 11 in stock | View | ||
| LS-3FTR150100-D40 | $129.00 | 14 in stock | View | ||
| LS-3FTR150150-D30 | $159.00 | 11 in stock | View | ||
| LS-3FTR200200-D50 | $229.00 | 17 in stock | View | ||
| LS-3FTR220220-D60 | $259.00 | 13 in stock | View | ||
| LS-3FTR300220-D45 | $299.00 | 10 in stock | View | ||
| LS-3FTR300300-D50 | $409.00 | 14 in stock | View | ||
| LS-3FTR350300-D80 | $459.00 | 13 in stock | View | ||
| LS-3FTR400300-D50 | $509.00 | 16 in stock | View | ||
| LS-3FTR400400-D50 | $659.00 | 13 in stock | View | ||
| LS-3FTR500400-D65 | $799.00 | 15 in stock | View | ||
| LS-3FTR500500-D60 | $979.00 | 16 in stock | View | ||
| LS-3FTR600600-D50 | $1,379.00 | 16 in stock | View | ||
| LS-3FTR1000700-D65 | $2,599.00 | 17 in stock | View |
