Backlights · 27 models · from $89.00

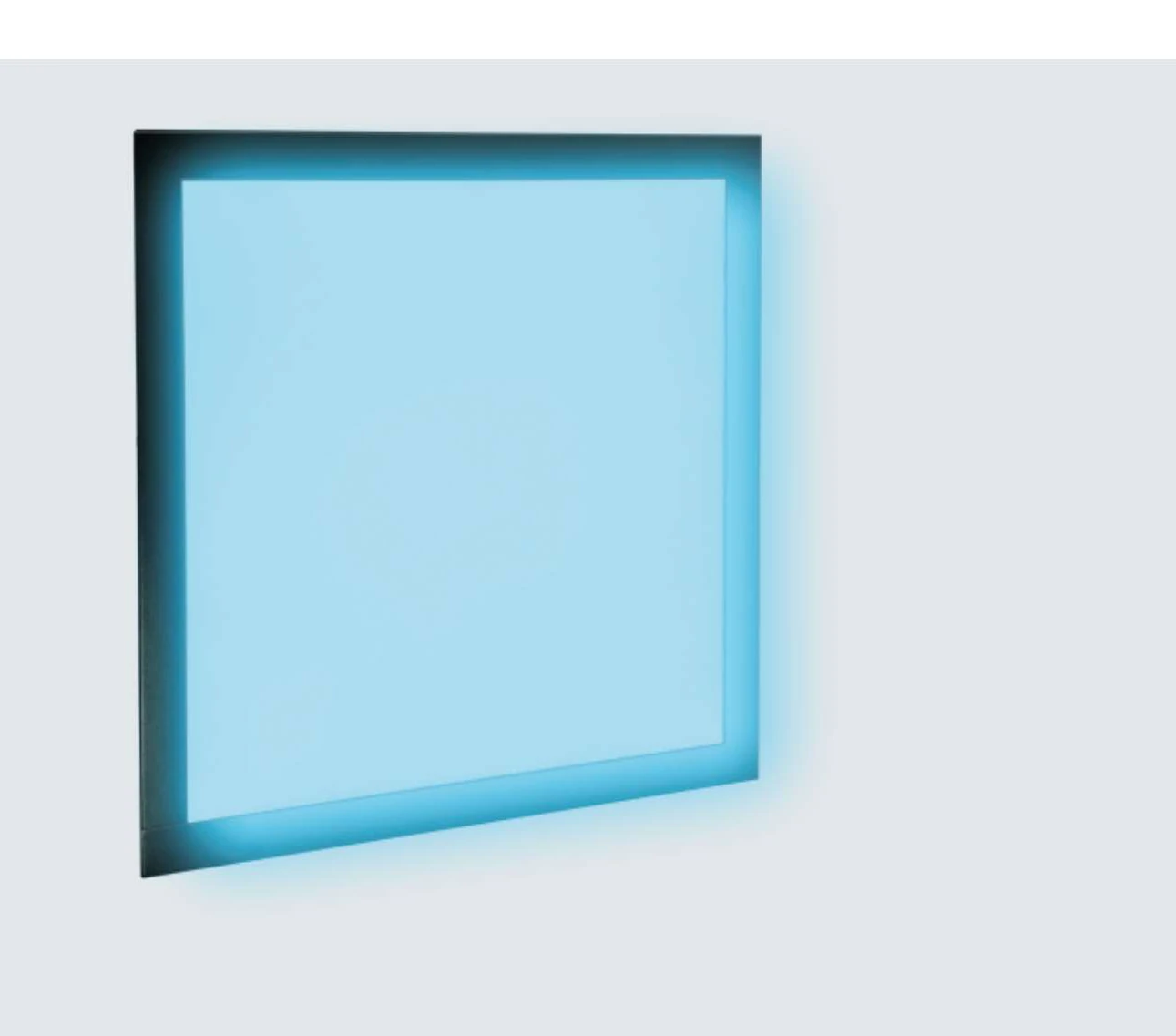

Side light / edge-lit area light (HFL)
The Side light / edge-lit area light (HFL) is a range of 27 backlights from LumaSpec Vision, from $89.00. It comes in 20 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 50 x 50 mm, 70 x 70 mm, 100 x 100 mm, 150 x 150 mm, 200 x 150 mm, 200 x 200 mm, 250 x 120 mm, 250 x 150 mm, 250 x 200 mm, 250 x 250 mm, 300 x 200 mm, 300 x 250 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 500 x 400 mm and 4 more |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Edge-lit / ultra-thin |
| Voltage | 24 V |
Features
- Ultra-thin design, freely customisable size
- Large-area, highly uniform flat illumination
- Versions with a centre hole (HOLE series, -K<hole dia.>)
Typical uses
- Outline measurement, machined dimension measurement, glass bottle damage, foreign matter
- Surface scratches, internal foreign matter and damage on transparent objects
- Tablet appearance inspection, carton positioning, remote-control key character recognition
- Backlit inspection of LED substrates, outer contour edge positioning
All 27 models in the Side light / edge-lit area light (HFL)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-HFL5050K | 50 x 50 mm | 8.5 W | $89.00 | 12 in stock | View | |
| LS-HFL7070K | 70 x 70 mm | 9 W | $99.00 | 13 in stock | View | |
| LS-HFL100100K | 100 x 100 mm | 13 W | $109.00 | 13 in stock | View | |
| LS-HFL100100K-K35 | 100 x 100 mm | 12.5 W | $109.00 | 12 in stock | View | |
| LS-HFL150150K | 150 x 150 mm | 17.5 W | $159.00 | 13 in stock | View | |
| LS-HFL250120K-K50 | 250 x 120 mm | 26 W | $189.00 | 14 in stock | View | |
| LS-HFL200150K | 200 x 150 mm | $189.00 | 15 in stock | View | ||
| LS-HFL250150K | 250 x 150 mm | 26 W | $209.00 | 17 in stock | View | |
| LS-HFL250150K-K50 | 250 x 150 mm | 26 W | $209.00 | 11 in stock | View | |
| LS-HFL200200K | 200 x 200 mm | 25 W | $219.00 | 15 in stock | View | |
| LS-HFL200200K-K50 | 200 x 200 mm | 20.5 W | $219.00 | 13 in stock | View | |
| LS-HFL250200K | 250 x 200 mm | 26 W | $259.00 | 16 in stock | View | |
| LS-HFL300200K | 300 x 200 mm | 31 W | $289.00 | 11 in stock | View | |
| LS-HFL300200K-K50 | 300 x 200 mm | 31 W | $289.00 | 18 in stock | View | |
| LS-HFL250250K-K50 | 250 x 250 mm | 26 W | $299.00 | 18 in stock | View | |
| LS-HFL300250K | 300 x 250 mm | 31 W | $349.00 | 12 in stock | View | |
| LS-HFL400200K-K40 | 400 x 200 mm | 43.5 W | $359.00 | 11 in stock | View | |
| LS-HFL300300K | 300 x 300 mm | 31 W | $399.00 | 12 in stock | View | |
| LS-HFL300300K-K50 | 300 x 300 mm | 31 W | $399.00 | 14 in stock | View | |
| LS-HFL400300K | 400 x 300 mm | 43.5 W | $509.00 | 13 in stock | View | |
| LS-HFL400300K-K50 | 400 x 300 mm | 43.5 W | $509.00 | 14 in stock | View | |
| LS-HFL500400K-K70 | 500 x 400 mm | 52 W | $789.00 | 16 in stock | View | |
| LS-HFL600450K | 600 x 450 mm | 61 W | $1,039.00 | 16 in stock | View | |
| LS-HFL600450K-K50 | 600 x 450 mm | 57.5 W | $1,039.00 | 16 in stock | View | |
| LS-HFL800600K-K50 | 800 x 600 mm | 74.5 W | $1,789.00 | 14 in stock | View | |
| LS-HFL900618K-K50 | 900 x 618 mm | 51 W | $2,059.00 | 18 in stock | View | |
| LS-HFL568668K-K50 | 1568 x 668 mm | 151 W | $3,819.00 | 16 in stock | View |
