Backlights · 18 models · from $79.00

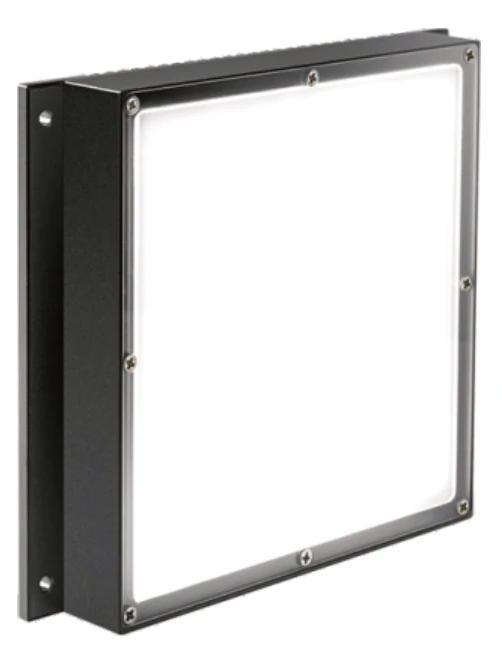

Parallel back light source (PHFS)
The Parallel back light source (PHFS) is a range of 18 backlights from LumaSpec Vision, from $79.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 27 x 27 mm, 48 x 28 mm, 50 x 50 mm, 100 x 100 mm, 100 x 50 mm, 120 x 120 mm, 150 x 100 mm, 180 x 150 mm, 200 x 100 mm, 200 x 200 mm, 228 x 158 mm, 250 x 150 mm, 250 x 250 mm, 300 x 200 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Collimated |
| Voltage | 24 V |
Features
- High density LED distributed at the bottom of the light source
- Good uniformity, soft and natural light, high brightness
- Flexible size, convenient customization, wide range of applications
- Various installation methods for convenient mounting
- Special optical material design, simple structure, can eliminate the shadow
Typical uses
- High precision dimension measuring
- Inspection of foreign matter on metal surface
- Inspection of glue on metal surface
- Glass vessel inspection
- Screen positioning and fitting
- Optical fibre alignment
All 18 models in the Parallel back light source (PHFS)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-PHFS2727 | 27 x 27 mm | 1.7 W | $79.00 | 16 in stock | View | |
| LS-PHFS4828 | 48 x 28 mm | 1.7 W | $79.00 | 12 in stock | View | |
| LS-2PHFS2727 | 27 x 27 mm | 1.7 W | $79.00 | 13 in stock | View | |
| LS-PHFS5050 | 50 x 50 mm | 3 W | $89.00 | 12 in stock | View | |
| LS-2PHFS5050 | 50 x 50 mm | 3 W | $89.00 | 15 in stock | View | |
| LS-PHFS10050 | 100 x 50 mm | 5.5 W | $99.00 | 14 in stock | View | |
| LS-PHFS100100 | 100 x 100 mm | 11 W | $109.00 | 14 in stock | View | |
| LS-2PHFS100100 | 100 x 100 mm | 11 W | $109.00 | 13 in stock | View | |
| LS-PHFS120120 | 120 x 120 mm | 12 W | $129.00 | 18 in stock | View | |
| LS-PHFS150100 | 150 x 100 mm | 16 W | $129.00 | 14 in stock | View | |
| LS-PHFS200100 | 200 x 100 mm | 21 W | $149.00 | 13 in stock | View | |
| LS-2PHFS180150 | 180 x 150 mm | 34 W | $169.00 | 13 in stock | View | |
| LS-PHFS180150 | 180 x 150 mm | 34 W | $169.00 | 14 in stock | View | |
| LS-PHFS228158 | 228 x 158 mm | 34 W | $209.00 | 16 in stock | View | |
| LS-PHFS250150 | 250 x 150 mm | 42 W | $209.00 | 16 in stock | View | |
| LS-PHFS200200 | 200 x 200 mm | 42 W | $219.00 | 16 in stock | View | |
| LS-2PHFS300200 | 300 x 200 mm | 51 W | $289.00 | 14 in stock | View | |
| LS-PHFS250250 | 250 x 250 mm | 48 W | $299.00 | 10 in stock | View |
