Backlights · 12 models · from $79.00

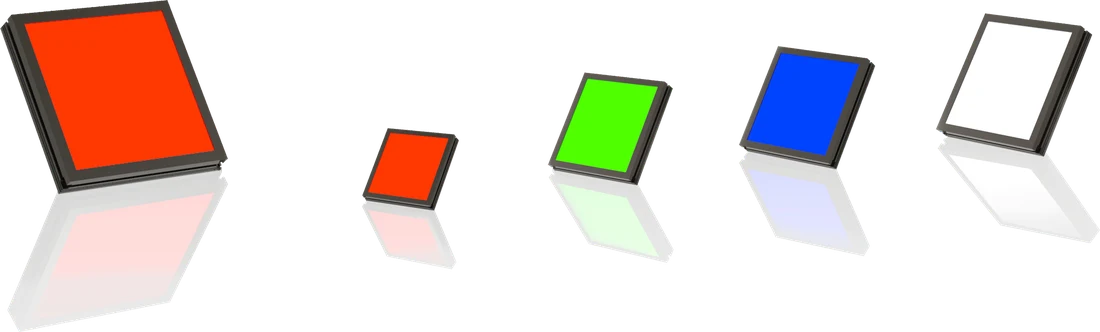

Bottom Back Light (BC series)
The Bottom Back Light (BC series) is a range of 12 backlights from LumaSpec Vision, from $79.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 27 x 27 mm, 43 x 35 mm, 50 x 50 mm, 63 x 60 mm, 83 x 75 mm, 100 x 100 mm, 140 x 105 mm, 160 x 120 mm, 200 x 150 mm, 200 x 50 mm, 211 x 200 mm, 224 x 170 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
| Voltage | 24 V |
Features
- High-brightness LED array arrangement for achieving uniform plane illumination.
- Large-area uniform illumination for transmissive contour imaging.
Typical uses
- Various size measurements, electronic component/IC outline inspection, film spot detection.
- Defect detection of chainsaw wheel gears
- Impurity detection in liquid
- Dimension inspection of metal part
- Date detection
All 12 models in the Bottom Back Light (BC series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-BC-27X27 | 27 x 27 mm | 2.5 W | $79.00 | 16 in stock | View | |
| LS-BC-43X35 | 43 x 35 mm | 2.5 W | $79.00 | 14 in stock | View | |
| LS-BC-50X50 | 50 x 50 mm | 6.5 W | $89.00 | 13 in stock | View | |
| LS-BC-63X60 | 63 x 60 mm | 8 W | $89.00 | 15 in stock | View | |
| LS-BC-83X75 | 83 x 75 mm | 9.5 W | $99.00 | 15 in stock | View | |
| LS-BC-100X100 | 100 x 100 mm | 10 W | $109.00 | 14 in stock | View | |
| LS-BC-200X50 | 200 x 50 mm | 25 W | $109.00 | 12 in stock | View | |
| LS-BC-140X105 | 140 x 105 mm | 15 W | $129.00 | 16 in stock | View | |
| LS-BC-160X120 | 160 x 120 mm | 20 W | $149.00 | 13 in stock | View | |
| LS-BC-200X150 | 200 x 150 mm | 30 W | $189.00 | 14 in stock | View | |
| LS-BC-224X170 | 224 x 170 mm | 25 W | $209.00 | 12 in stock | View | |
| LS-BC-211X200 | 211 x 200 mm | 33 W | $229.00 | 14 in stock | View |
