Backlights · 5 models · from $119.00

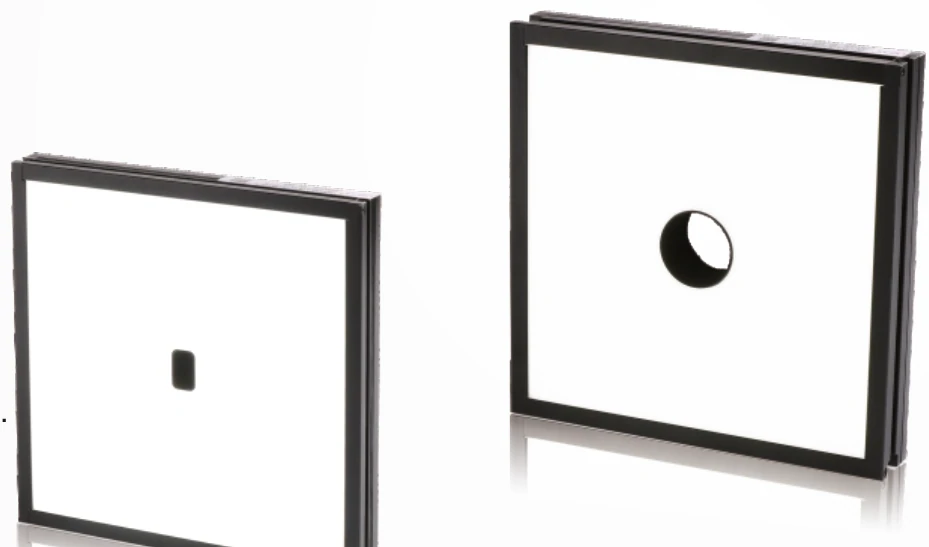

Square back light with centre hole (2FTB)
The Square back light with centre hole (2FTB) is a range of 5 backlights from LumaSpec Vision, from $119.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 110 x 110 mm, 140 x 140 mm, 200 x 100 mm, 200 x 180 mm, 236 x 186 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | With centre hole |
| Voltage | 24 V |
Features
- High-density LED distributed to the bottom of the light
- High uniformity, high luminance
- Diverse dimensions for various applications
- Through hole in the emitting area (square)
Typical uses
- Boundary dimension measurement
- Damaged edge inspection
- Transparency impurity inspection
- Oral liquid level height inspection
- Imaging example: dirty part inspection on a gauze mask (LS-2FTR300200-W)
All 5 models in the Square back light with centre hole (2FTB)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2FTB110110 | 110 x 110 mm | 9.6 W | $119.00 | 13 in stock | View | |
| LS-2FTB140140 | 140 x 140 mm | 18.2 W | $149.00 | 13 in stock | View | |
| LS-2FTB200100 | 200 x 100 mm | 16.3 W | $149.00 | 13 in stock | View | |
| LS-2FTB200180 | 200 x 180 mm | 32.2 W | $209.00 | 14 in stock | View | |
| LS-2FTB236186 | 236 x 186 mm | 37.4 W | $239.00 | 15 in stock | View |
