Backlights · 3 models · from $89.00

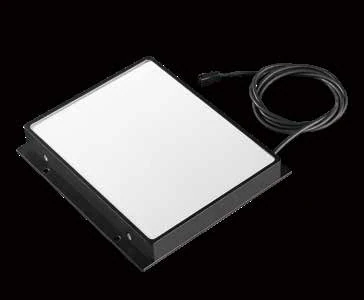

LED flat backlight
The LED flat backlight is a range of 3 backlights from LumaSpec Vision, from $89.00. It comes in 2 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 60 x 60 mm, 170 x 130 mm |
|---|---|
| Colour | White |
| Type | Standard |
| Voltage | 24 V |
Features
- Quick and efficient customization
- Uniform, low heat illumination
- Widely used in microscope
- Long working distance
- Compact design
- High density and high brightness LED array
- Lighting area from 60*60mm to 410*410mm
- Flat lighting can be customized other size and color
Typical uses
- Measurement inspection of mechanical components
- Inspection of transparent film
- Microscope illumination
All 3 models in the LED flat backlight
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-NTF-C60L60W | 60 x 60 mm | 5.5 W | $89.00 | 5 in stock | View | |
| LS-NTF-C170L130W | 170 x 130 mm | 18.9 W | $159.00 | 4 in stock | View | |
| LS-NTF-C410L410W | 36 W | $719.00 | 3 in stock | View |
