Backlights · 4 models · from $719.00

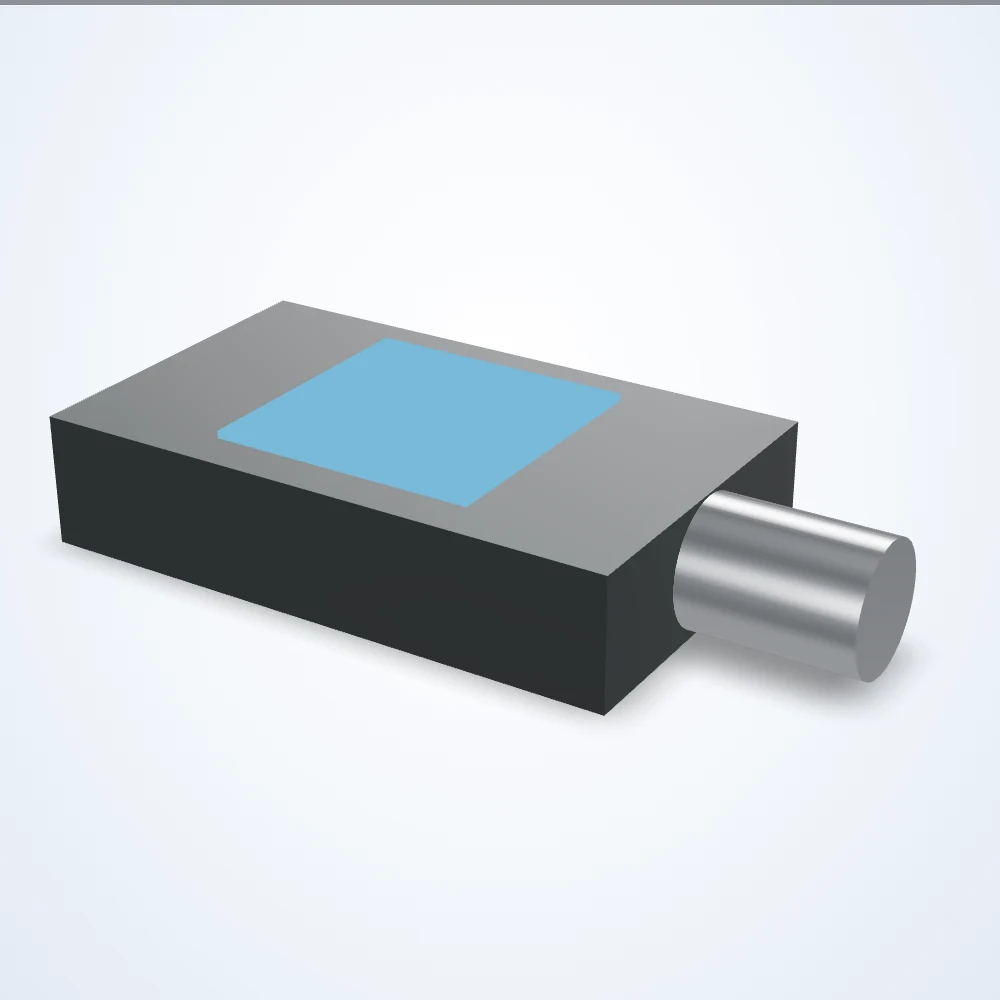

Backlight series, 12.4 mm high, 5 Pin M12 Male A-Coded
The Backlight series, 12.4 mm high, 5 Pin M12 Male A-Coded is a range of 4 backlights from LumaSpec Vision, from $719.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 25.5 x 25.5 mm, 50.5 x 50.5 mm, 75.5 x 75.5 mm, 100.5 x 100.5 mm |
|---|---|
| Type | Standard |
| Voltage | 24 V |
| Colour | Red, Blue, White, Infrared |
| Wavelength | 850 nm |
All 4 models in the Backlight series, 12.4 mm high, 5 Pin M12 Male A-Coded
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0508 | 25.5 x 25.5 mm | from $719.00 quote | 13 in stock | View |
| LS-BKL-0509 | 50.5 x 50.5 mm | from $829.00 quote | 14 in stock | View |
| LS-BKL-0510 | 75.5 x 75.5 mm | from $1,149.00 quote | 13 in stock | View |
| LS-BKL-0507 | 100.5 x 100.5 mm | from $1,339.00 quote | 17 in stock | View |
