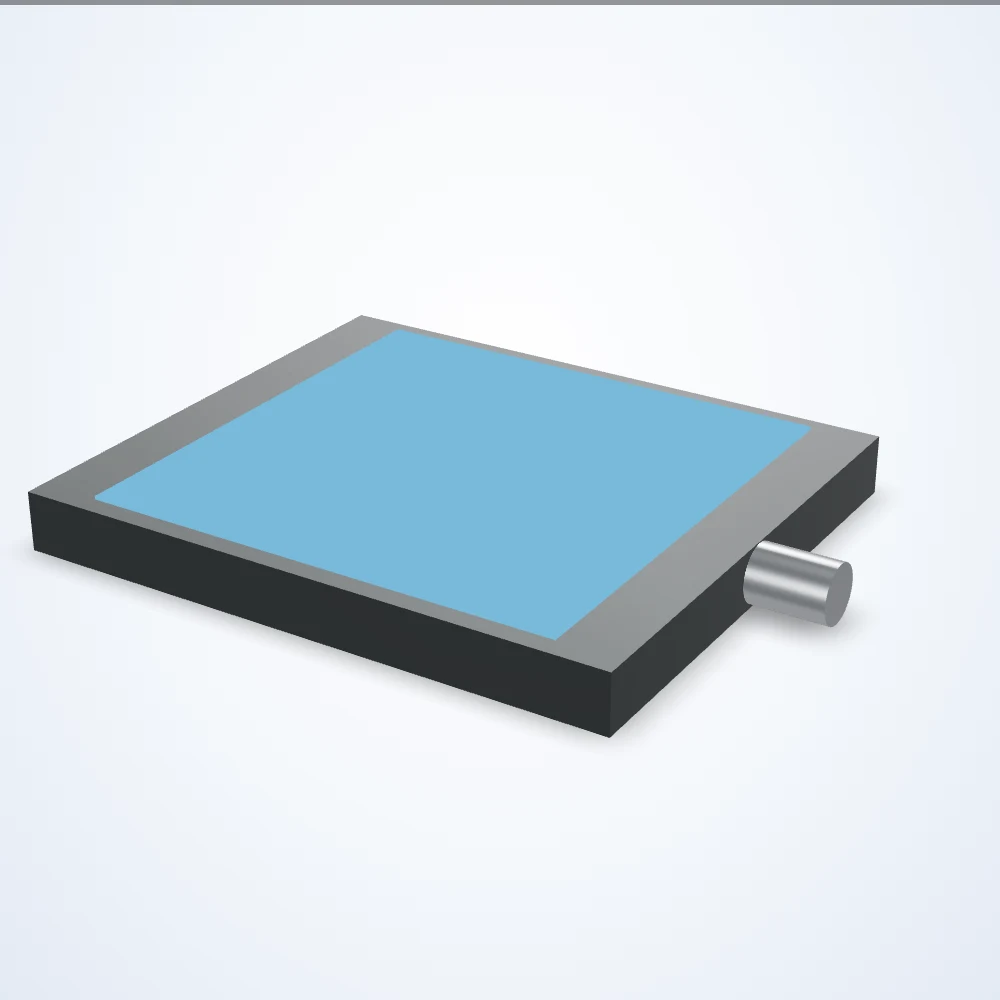

126.5 x 109 mm backlight (LS-BKL-0507)
Model LS-BKL-0507
126.5 x 109 mm backlight. Lit area 100.5 x 100.5 mm. Connection: 5 Pin M12 Male A-Coded. Available in 4 configurations (color); choose one below and request a quote.
Specifications
| Model | LS-BKL-0507 |
|---|---|
| Active Length (mm) | 100.5 |
| Active Width (mm) | 100.5 |
| Collimated | Collimated |
| Compliances | CE, CSA, FCC, IEC 62471, KCC, REACH, RoHS, UL, UL 61010, WEEE |
| Connector Type | 5 Pin M12 Male A-Coded |
| Connectorized At Light | Connectorized |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | Internal |
| Driver Nomenclature | SVL Multi-Drive |
| Height (mm) | 12.4 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Intensity Adjustment Type | Analog Voltage, SmartVisionLink |
| Length (mm) | 126.5 |
| Lens Angle | Diffused |
| Maximum Constant On Current (mA) | 500 |
| Maximum Current (Overcurrent Strobe) (mA) | 5000 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 12 |
| Maximum Input Power Overcurrent Strobe (W) | 120 |
| Maximum Operating Temperature (C) | 40 |
| Maximum Operating Temperature (F) | 104 |
| Maximum Overcurrent Strobe Duration (ms) | 50 |
| Maximum Overcurrent Strobe Duty Cycle (%) | 10 |
| Maximum Overcurrent Strobe Frequency (Hz) | 4000 |
| Maximum Overcurrent Strobe Latency (us) | 6 |
| Maximum Storage Temperature (C) | 70 |
| Maximum Storage Temperature (F) | 158 |
| Maximum Strobe Current (mA) | 500 |
| Maximum Strobe Duration (ms) | No Limit |
| Maximum Strobe Duty Cycle (%) | 100 |
| Maximum Strobe Frequency (Hz) | 4000 |
| Maximum Strobe Input Power (W) | 12 |
| Maximum Strobe Latency (us) | 10 |
| Minimum Operating Temperature (C) | 10 |
| Minimum Operating Temperature (F) | 50 |
| Minimum Overcurrent Strobe Duration (us) | 30 |
| Minimum Storage Temperature (C) | -20 |
| Minimum Storage Temperature (F) | -4 |
| Minimum Strobe Duration (us) | 30 |
| Mounting Method | T-Slot Channels, Tapped Holes |
| NPN Trigger Current (mA) | 12 |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Strobe, Strobe – Dimmable |
| PNP Trigger Current (mA) | 13.4 |
| PNP Trigger Voltage (V) | 3.3-24 VDC |
| Polarized | Not Polarized |
| Product Weight (Kg) | 0.28 |
| Product Weight (Lbs) | 0.61 |
| Strobe Trigger Input | NPN Trigger, PNP Trigger |
| Voltage | 24 VDC |
| Width (mm) | 109 |
