Backlights · 18 models · from $79.00

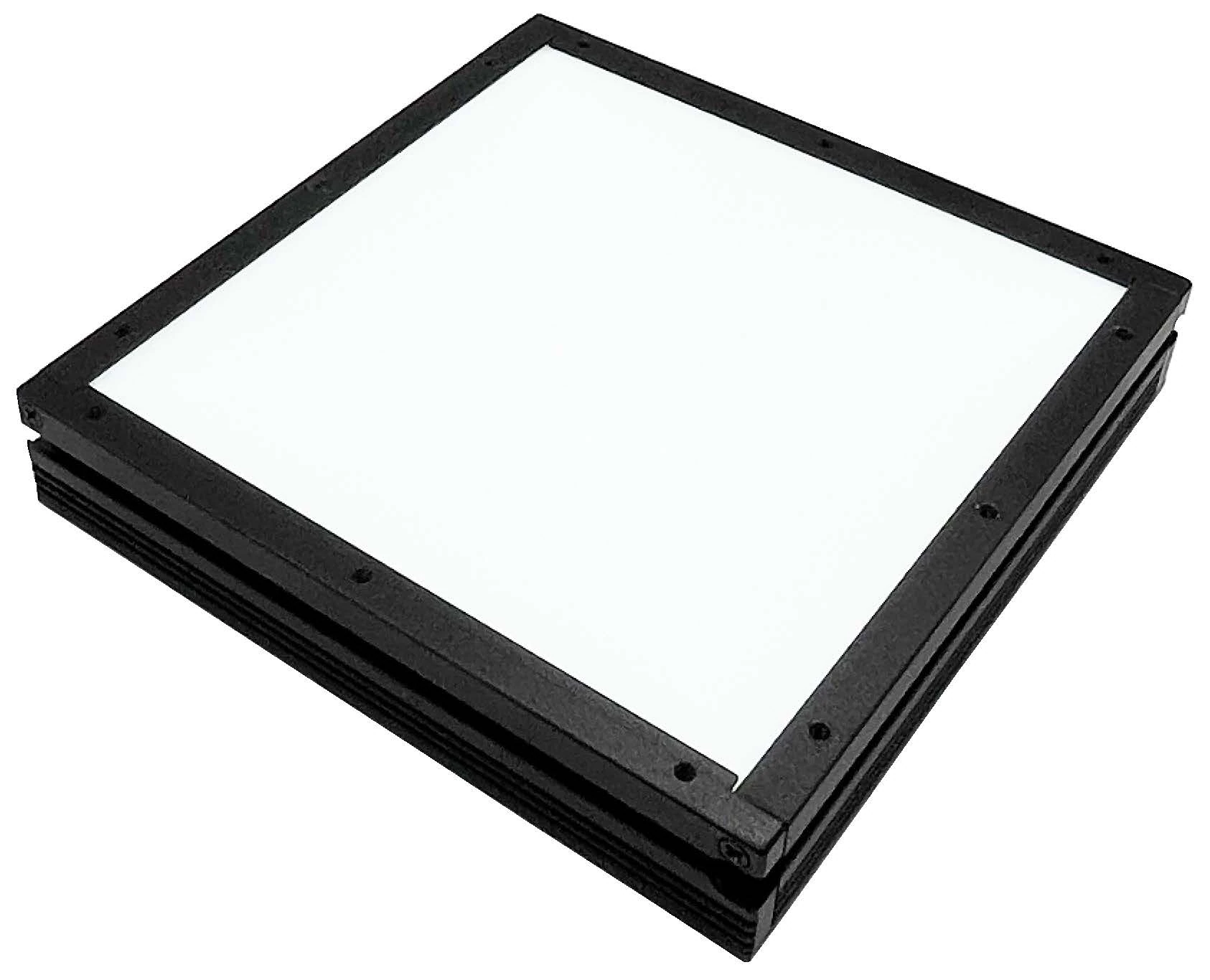

Back light, updated version (2FL)
The Back light, updated version (2FL) is a range of 18 backlights from LumaSpec Vision, from $79.00. It comes in 18 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 30 x 30 mm, 50 x 50 mm, 70 x 70 mm, 80 x 80 mm, 100 x 100 mm, 110 x 60 mm, 120 x 120 mm, 150 x 150 mm, 200 x 120 mm, 200 x 150 mm, 200 x 200 mm, 220 x 220 mm, 250 x 150 mm, 280 x 280 mm, 300 x 150 mm, 300 x 300 mm and 2 more |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
| Voltage | 24 V |
| Connector | anti-pull cable connector |
Features
- High array LED arrangement
- High brightness plane lighting
- Customizable: size, length and width, colour and colour temperature, cable length, installation method
Typical uses
- Contour measurement
- Machining dimension measurement
- Glass bottle damage, foreign body inspection
- Hose position inspection (imaging case)
All 18 models in the Back light, updated version (2FL)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2FL3030 | 30 x 30 mm | 1.44 W | $79.00 | 15 in stock | View | |
| LS-2FL5050-Z | 50 x 50 mm | 3.5 W | $89.00 | 15 in stock | View | |
| LS-2FL7070-Z | 70 x 70 mm | 6.3 W | $99.00 | 11 in stock | View | |
| LS-2FL8080-Z | 80 x 80 mm | 8.6 W | $99.00 | 14 in stock | View | |
| LS-2FL11060 | 110 x 60 mm | 8.6 W | $99.00 | 12 in stock | View | |
| LS-2FL100100-Z | 100 x 100 mm | 11.5 W | $109.00 | 19 in stock | View | |
| LS-2FL120120-Z | 120 x 120 mm | 17.3 W | $129.00 | 12 in stock | View | |
| LS-2FL150150-Z | 150 x 150 mm | 28.8 W | $159.00 | 15 in stock | View | |
| LS-2FL200120 | 200 x 120 mm | 28.8 W | $159.00 | 16 in stock | View | |
| LS-2FL200150-Z | 200 x 150 mm | 36 W | $189.00 | 12 in stock | View | |
| LS-2FL250150 | 250 x 150 mm | 41.5 W | $209.00 | 12 in stock | View | |
| LS-2FL200200-Z | 200 x 200 mm | 43.2 W | $219.00 | 15 in stock | View | |
| LS-2FL300150-Z | 300 x 150 mm | 51.8 W | $239.00 | 17 in stock | View | |
| LS-2FL220220 | 220 x 220 mm | 50.7 W | $249.00 | 17 in stock | View | |
| LS-2FL280280 | 280 x 280 mm | 69.1 W | $359.00 | 16 in stock | View | |
| LS-2FL300300-Z | 300 x 300 mm | 72 W | $399.00 | 13 in stock | View | |
| LS-2FL400300-Z | 400 x 300 mm | 103.7 W | $509.00 | 16 in stock | View | |
| LS-2FL400400-Z | 400 x 400 mm | 126.7 W | $649.00 | 13 in stock | View |
