Backlights · 6 models · from $109.00

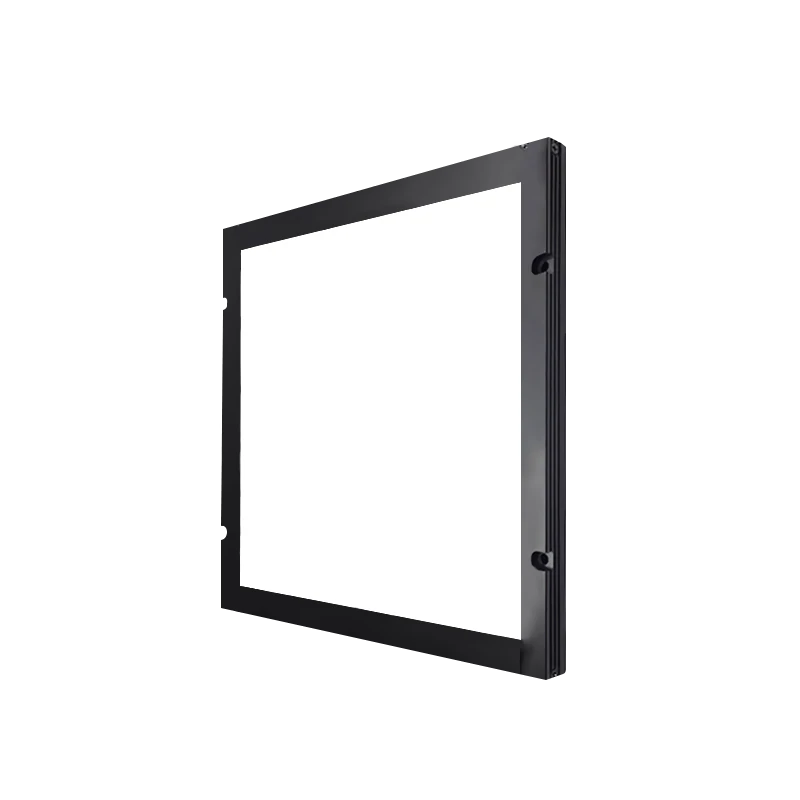

Ultra-thin flat light / side backlight (2FLC series)
The Ultra-thin flat light / side backlight (2FLC series) is a range of 6 backlights from LumaSpec Vision, from $109.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 100 x 100 mm, 150 x 150 mm, 200 x 200 mm, 250 x 250 mm, 300 x 300 mm |
|---|---|
| Colour | Blue, White |
| Type | Edge-lit / ultra-thin |
| Voltage | 24 V |
| Connector | 3-pin flat |
Features
- 10.5 mm thickness
- Side-lit SMD LEDs
- Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
- Luminous size:100mm*100mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:30000 hours for red light and 30000 hours for white light.
- Suitable for high-precision detection such as contour detection, transparent body stain defect detection, etc.
Typical uses
- Glass scratch detection
- PCB board printing defect detection
- Reflective plane defect detection
- Sheet metal detection (white background with contrasting black edges)
All 6 models in the Ultra-thin flat light / side backlight (2FLC series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2FLC100100 | 100 x 100 mm | 6.7 W | $109.00 | 5 in stock | View | |
| LS-2FCL150150 | 150 x 150 mm | 10.1 W | $159.00 | 6 in stock | View | |
| LS-2FLC150150 | 150 x 150 mm | $159.00 | 5 in stock | View | ||
| LS-2FLC200200 | 200 x 200 mm | 13.4 W | $219.00 | 4 in stock | View | |
| LS-2FLC250250 | 250 x 250 mm | 16.8 W | $299.00 | 7 in stock | View | |
| LS-2FLC300300 | 300 x 300 mm | 20.2 W | $399.00 | 8 in stock | View |
