Backlights · 5 models · from $109.00

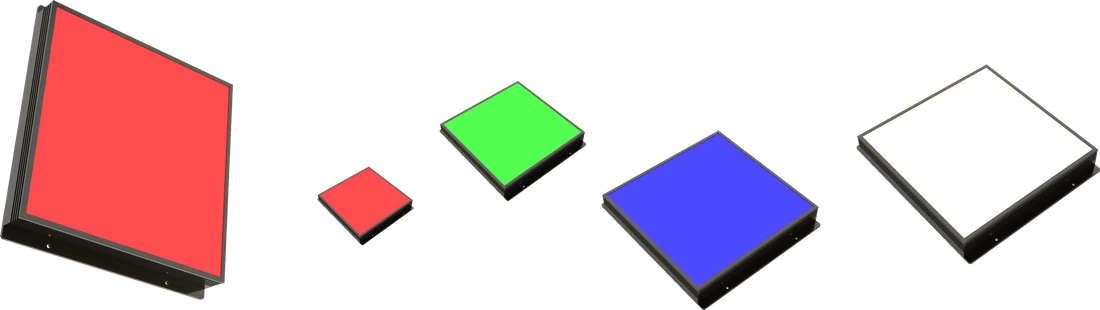

High Uniformity Back Light (HBC series)
The High Uniformity Back Light (HBC series) is a range of 5 backlights from LumaSpec Vision, from $109.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 50 x 50 mm, 110 x 110 mm, 240 x 160 mm, 430 x 350 mm, 550 x 400 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
| Voltage | 24 V |
Features
- Good uniformity, high brightness.
- Uniform illumination over a large area, with flexible and variable dimensions.
- High proportion of effective luminous surface, suitable for compact installation environments.
Typical uses
- Size measurement, contour inspection, metal burr detection, transparent object scratch detection, internal foreign object detection.
- Dice (or wheel) dimension inspection
- Metal plate dimension inspection
- Solar cell damage detection
- Automotive part dimension inspection
All 5 models in the High Uniformity Back Light (HBC series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-HBC-50X50 | 50 x 50 mm | 4.5 W | $109.00 | 11 in stock | View | |
| LS-HBC-110X110 | 110 x 110 mm | 8.1 W | $149.00 | 12 in stock | View | |
| LS-HBC-240X160 | 240 x 160 mm | 24 W | $269.00 | 16 in stock | View | |
| LS-HBC-450X350 | 430 x 350 mm | 135 W | $769.00 | 12 in stock | View | |
| LS-HBC-550X400 | 550 x 400 mm | 200 W | $1,079.00 | 14 in stock | View |
