Backlights · 29 models · from $79.00

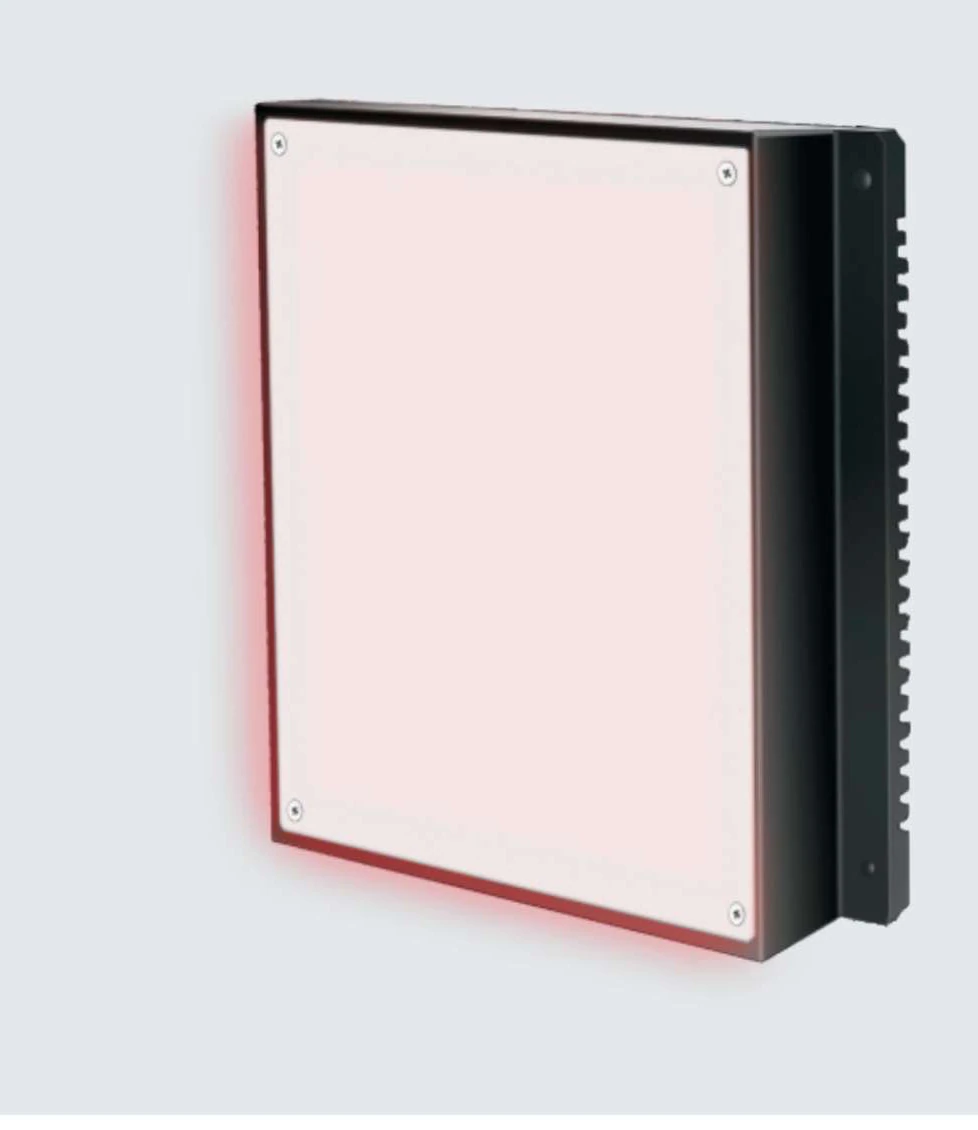

Back light / area light (HHFL)
The Back light / area light (HHFL) is a range of 29 backlights from LumaSpec Vision, from $79.00. It comes in 29 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 19 x 19 mm, 27 x 27 mm, 30 x 30 mm, 50 x 50 mm, 60 x 40 mm, 70 x 70 mm, 100 x 100 mm, 100 x 50 mm, 110 x 60 mm, 120 x 120 mm, 150 x 100 mm, 160 x 120 mm, 180 x 100 mm, 190 x 100 mm, 200 x 100 mm, 200 x 160 mm and 13 more |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
| Voltage | 24 V |
Features
- High-density LED array
- High-brightness flat illumination
- Optional parallel version (PHFL) with brightness-enhancement film, +20% to 50% brightness
Typical uses
- Outline measurement, machined dimension measurement
- Glass bottle damage, foreign matter inspection
- Surface scratches, stains, internal foreign matter and damage on transparent objects
All 29 models in the Back light / area light (HHFL)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-HHFL1919 | 19 x 19 mm | 1 W | $79.00 | 19 in stock | View | |
| LS-HHFL2727 | 27 x 27 mm | 1.5 W | $79.00 | 9 in stock | View | |
| LS-HHFL3030 | 30 x 30 mm | 2 W | $79.00 | 13 in stock | View | |
| LS-HHFL5050 | 50 x 50 mm | 3.5 W | $89.00 | 19 in stock | View | |
| LS-HHFL6040 | 60 x 40 mm | 4 W | $89.00 | 15 in stock | View | |
| LS-HHFL7070 | 70 x 70 mm | 8 W | $99.00 | 15 in stock | View | |
| LS-HHFL10050 | 100 x 50 mm | 5 W | $99.00 | 17 in stock | View | |
| LS-HHFL11060 | 110 x 60 mm | 9 W | $99.00 | 16 in stock | View | |
| LS-HHFL100100 | 100 x 100 mm | 11 W | $109.00 | 16 in stock | View | |
| LS-HHFL120120 | 120 x 120 mm | 25.5 W | $129.00 | 13 in stock | View | |
| LS-HHFL150100 | 150 x 100 mm | 14.5 W | $129.00 | 17 in stock | View | |
| LS-HHFL180100 | 180 x 100 mm | 25.5 W | $139.00 | 16 in stock | View | |
| LS-HHFL160120 | 160 x 120 mm | 23 W | $149.00 | 17 in stock | View | |
| LS-HHFL190100 | 190 x 100 mm | 25.5 W | $149.00 | 15 in stock | View | |
| LS-HHFL200100 | 200 x 100 mm | 27 W | $149.00 | 11 in stock | View | |
| LS-HHFL240150 | 208 x 138 mm | 32 W | $179.00 | 9 in stock | View | |
| LS-HHFL200160 | 200 x 160 mm | 36 W | $189.00 | 18 in stock | View | |
| LS-HHFL220150 | 220 x 150 mm | 38 W | $199.00 | 11 in stock | View | |
| LS-HHFL250150 | 250 x 150 mm | 33 W | $209.00 | 11 in stock | View | |
| LS-HHFL200200 | 200 x 200 mm | 48 W | $219.00 | 12 in stock | View | |
| LS-HHFL250200 | 250 x 200 mm | 47 W | $259.00 | 13 in stock | View | |
| LS-HHFL400150 | 400 x 150 mm | 65 W | $289.00 | 18 in stock | View | |
| LS-HHFL300260 | 220 x 280 mm | 48.5 W | $299.00 | 17 in stock | View | |
| LS-HHFL300300 | 300 x 300 mm | 86.5 W | $399.00 | 10 in stock | View | |
| LS-HHFL380250 | 380 x 250 mm | 112.5 W | $419.00 | 18 in stock | View | |
| LS-HHFL420250 | 420 x 250 mm | 104 W | $449.00 | 15 in stock | View | |
| LS-HHFL400300 | 400 x 300 mm | 104 W | $509.00 | 13 in stock | View | |
| LS-HHFL700260 | 700 x 260 mm | 171 W | $729.00 | 13 in stock | View | |
| LS-HHFL600400 | 600 x 400 mm | 194 W | $939.00 | 17 in stock | View |
